STEP 1 : Connecting to a TV
≥ Do not place the unit on amplifiers/receiver or equipment
that may become hot. The heat can damage the unit.
≥ Before making any connections we suggest you temporarily
disconnect all the units from AC power.
≥ Do not connect video signals through a video recorder. Due
to copy guard protection the picture may not be displayed
properly.
≥ Refer to page 33, about recommended settings for each
piece of connected equipment.
≥ Please use High Speed HDMI Cables that have the HDMI
logo (as shown on the cover). It is recommended that you
use Panasonic’s HDMI cable. When outputting 1080p
signal, please use HDMI cables 5.0 meters or less.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m),
RP-CDHS50 (5.0 m), etc.
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
Highest Quality
(VIDEO)
Standard Quality
(VIDEO)

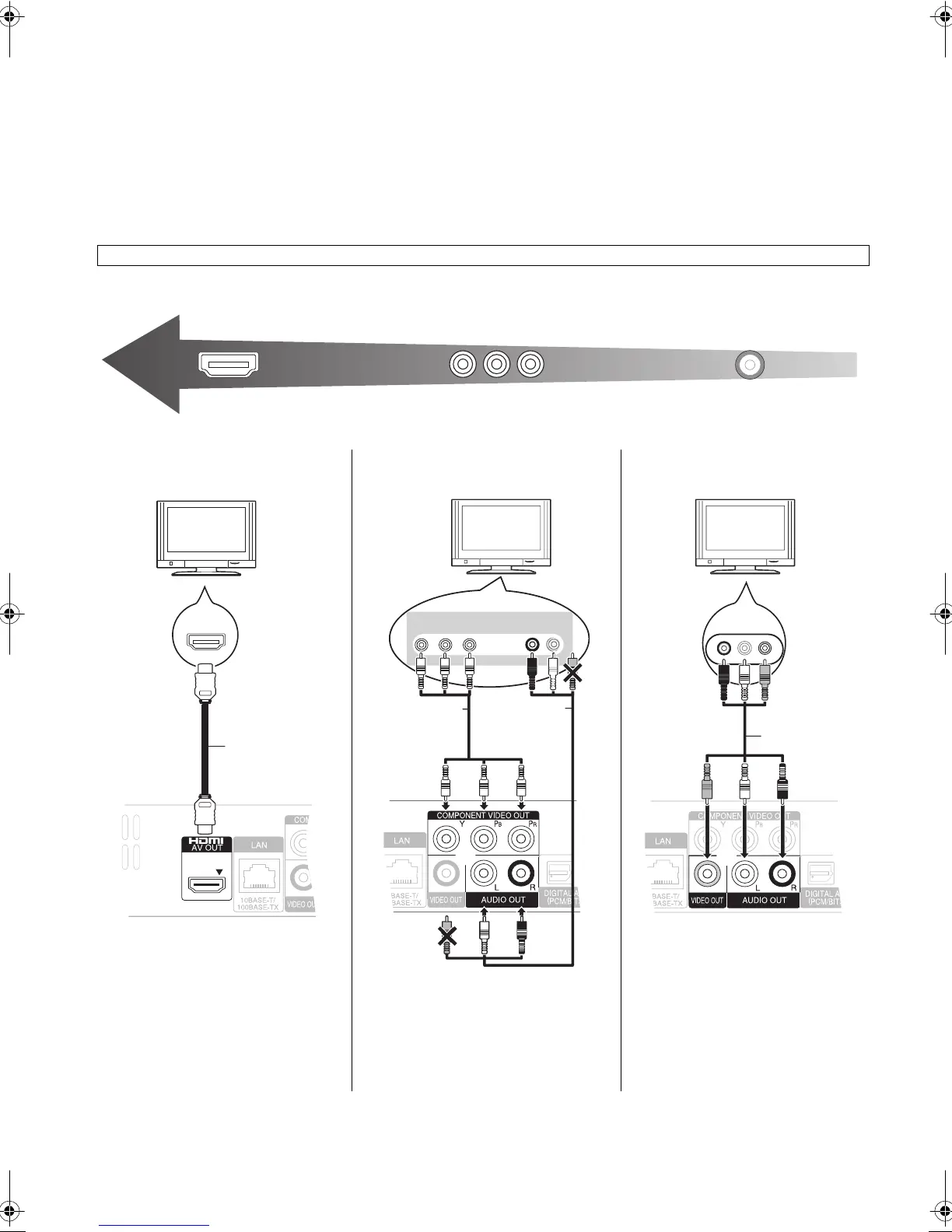

∫ Via an HDMI AV OUT terminal ∫ Via a COMPONENT VIDEO
OUT terminal
[BD65]
∫ Via a VIDEO OUT terminal
≥ The HDMI connection supports
VIERA Link “HDAVI Control” (> 22)
when used with a compatible
Panasonic TV.
≥ Set “HDMI Video Mode” [BD65]
and
“HDMI Audio Output” to “On” (> 28).
≥ Connect terminals of the same
colour.
≥ Set “Component Resolution” to
“576p/480p”, “720p” or “1080i”.
(> 28)
≥ Set “HDMI Video Mode” to “Off”
(> 28).
≥ Connect terminals of the same
colour.
COMPONENT
VIDEO IN
AUDIO IN
R L
Component
Video cable
Audio/Video
cable
