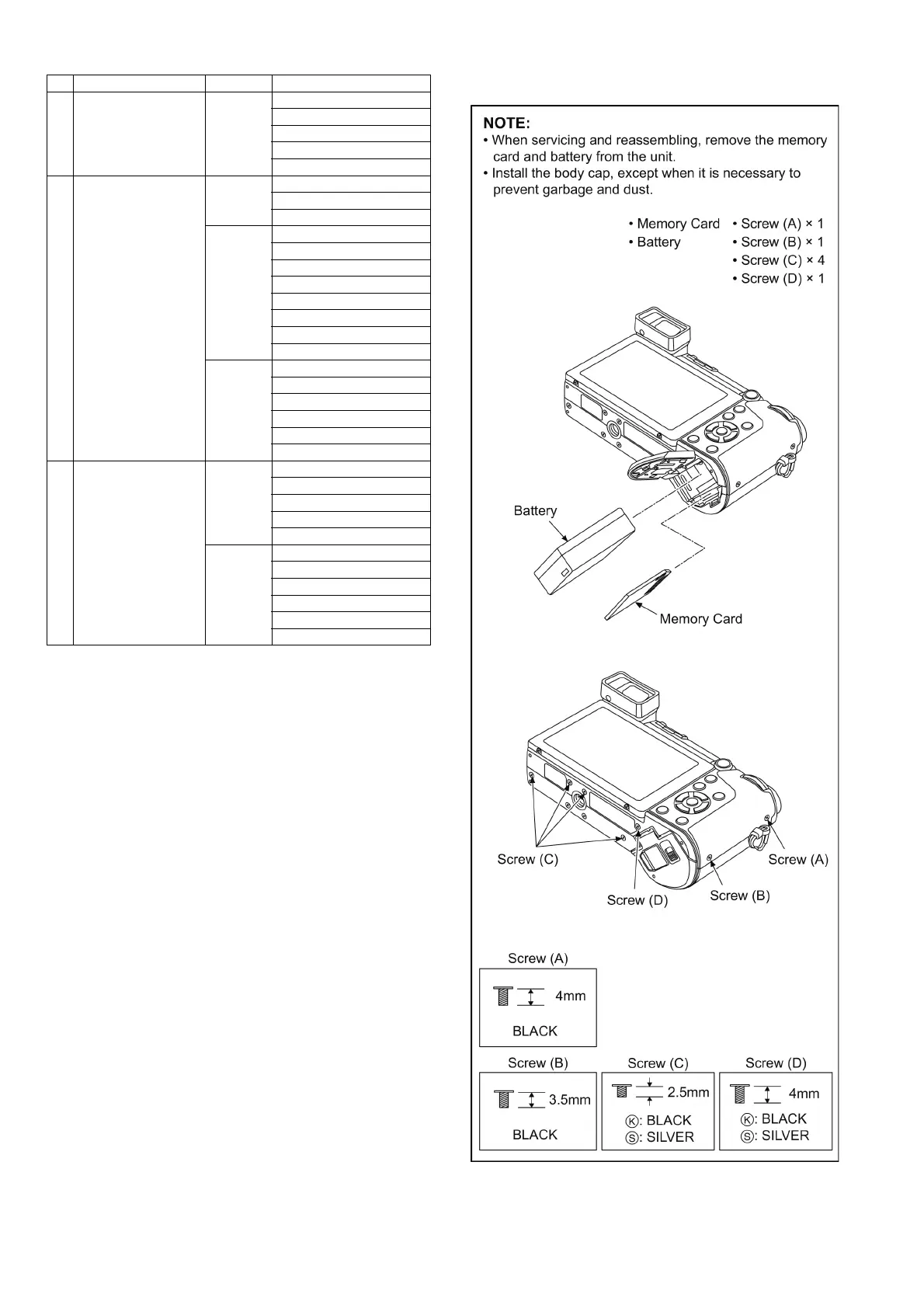

9.1.3.1. Removal of the Rear Case Unit
(Fig. D1)
17 Eye Cup Unit
LVF Panel
(Fig. D30) Screw (g) x 1
Locking tab x 2
Eye Cup Unit
LVF Panel Cushion
LVF Panel
18 LVF Lens Unit (Fig. D31) Hooking part x 2
Locking tab x 2
LVF Cover Unit
(Fig. D32) Hooking part x 2
Convex x 2
LVF Shield Plate
LVF FPC Tape
Eye Sensor Tape
Convex x 3
Locking tab x 2
LVF Holder
(Fig. D33) LVF Lens Shaft
LVF Lens Spring
LVF Lens Unit
Screw (h) x 1
LVF Slide Plate
LVF Lever
19 Microphone FPC Unit (Fig. D34) Screw (i) x 2
Screw (j) x 1
Connector (B)
FPC Tape
Convex x 2
(Fig. D35) Flash Lock Knob
Mic Damper x 2
FPC Tape
Convex x 2
Mic Cover
Microphone FPC Unit
No. Item Fig. Removal
