10 Measurements and Adjustments

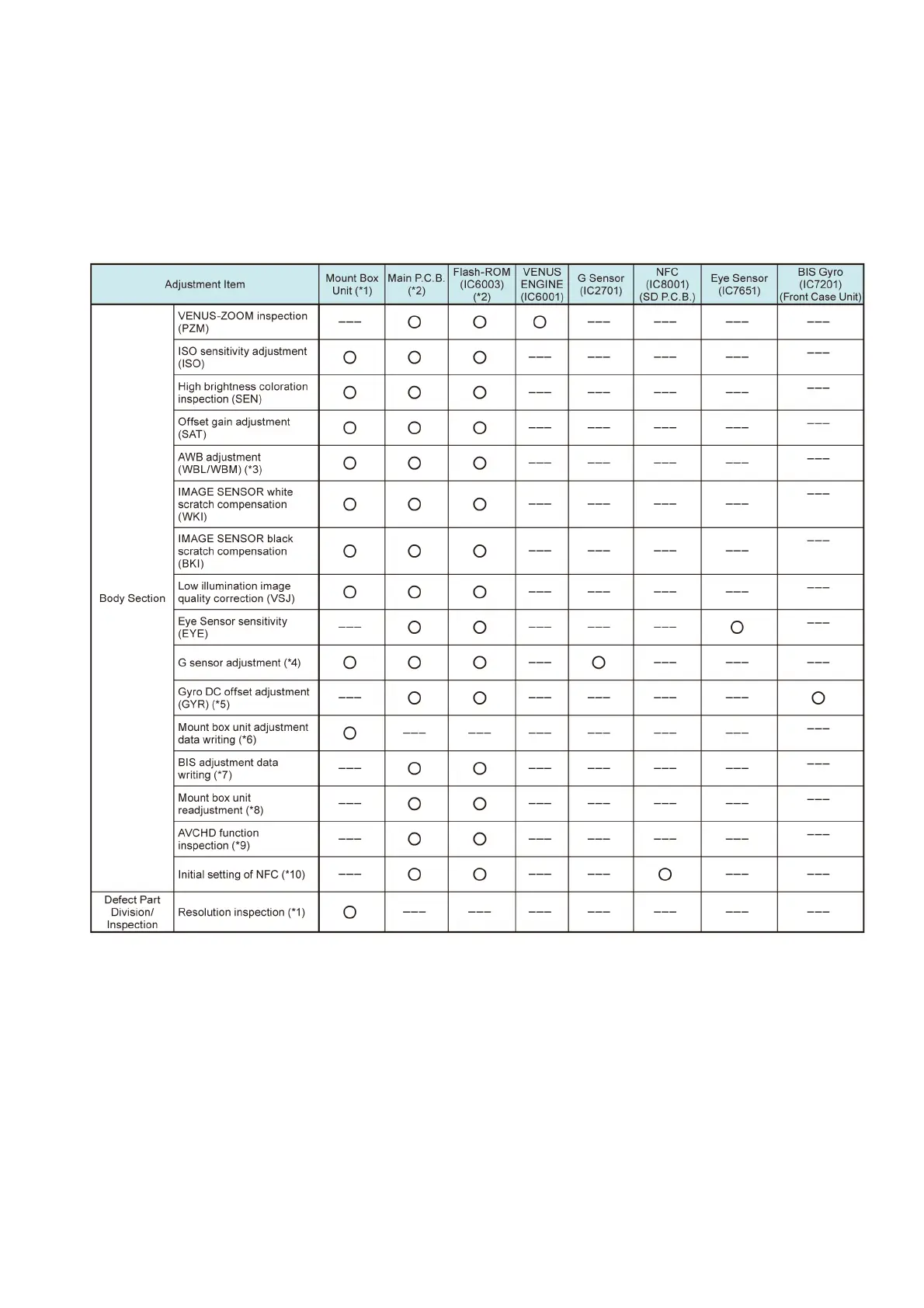

10.1. Matrix Chart for Replaced Part and Necessary Adjustment
The relation between Replaced part and Necessary Adjustment is shown in the following table.
When concerned part is replaced, be sure to achieve the necessary adjustment(s).
As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software.
NOTE:
After adjustments have been terminated, make sure to achieve “INITIAL SETTINGS”.
After updates it to the latest firmware, the adjustment is executed.
*1 NOTE: (After exchange the mount box unit)
• Execute the resolution inspection by the comparison with the standard model (DMC-G1K etc.: operates normal).
• Refer to the adjustment instruction in the adjustment software for details.
*2 NOTE: (When exchange the MAIN P.C.B.)
• Correspond by either the following when exchange the MAIN P.C.B. unavoidably by destruction and damage etc. of MAIN
P. C . B . .
1. When it can turn on power, and the adjustment software can communicate with the camera body:
• Before replacing, proceed the Flash-ROM (IC6003) data backup from the unit.
After replacing, overwrite the Flash-ROM (IC6003) data with backup data from the unit.
After that, proceed the main body adjustment.
2. When it cannot turn on power, or the adjustment software cannot communicate with the camera body:
• Writing BIS adjustment data and the readjustment of mount box unit etc. are necessary.
• Refer to the adjustment instruction in the adjustment software for details.
