Panasonic MINAS-BL GV Series User Manual

－
15
－－
14
－
Wiring
Brushless
amplifier
• In case of 3-Phase 200 V
Power
supply
input
L1
L2
L3
1
5
6
10
Be sure to ground the grounding terminal.
MCCB
Molded Case
(
Circuit Breaker
)
In wiring to power supply (outside of equipment) from MCCB, use an electric wire of
1.6 mm diameter (2.0 mm
2
) or more both for main circuit and grounding.
Apply grounding class D (100 Ω or below) for grounding.
Do not tighten the ground wires together, but connect them individually.
Fastening torque of earth screws to be 0.49 to 0.98 N·m.
Grounding
Noise
filter
Brushless
amplifier
• In case of single phase 100, 200 V
Be sure to ground the grounding terminal.
In wiring to power supply (outside of equipment) from MCCB, use an electric wire of
1.6 mm diameter (2.0 mm
2
) or more both for main circuit and grounding.
Apply grounding class D (100 Ω or below) for grounding.
Do not tighten the ground wires together, but connect them individually.
Fastening torque of earth screws to be 0.49 to 0.98 N·m.
External
regenerative
resistor
Power
supply
input
L1
L2
1
5
6
10
MCCB
Molded Case
(
Circuit Breaker
)
Grounding
Noise
filter
External
regenerative
resistor
Forced trip
02
Connector
for control
signals (I/O)
10
1
01
＋5V
（NC）
GND
I3
（NC）
I4
I2
I1
Run start
Point designation Home sensor
Forced trip
02
Connector
for control
signals (I/O)
10
1
01
＋5V
（NC）
GND
I3
（NC）
I4
I2
I1
Run start
Point designation Home sensor
Wiring

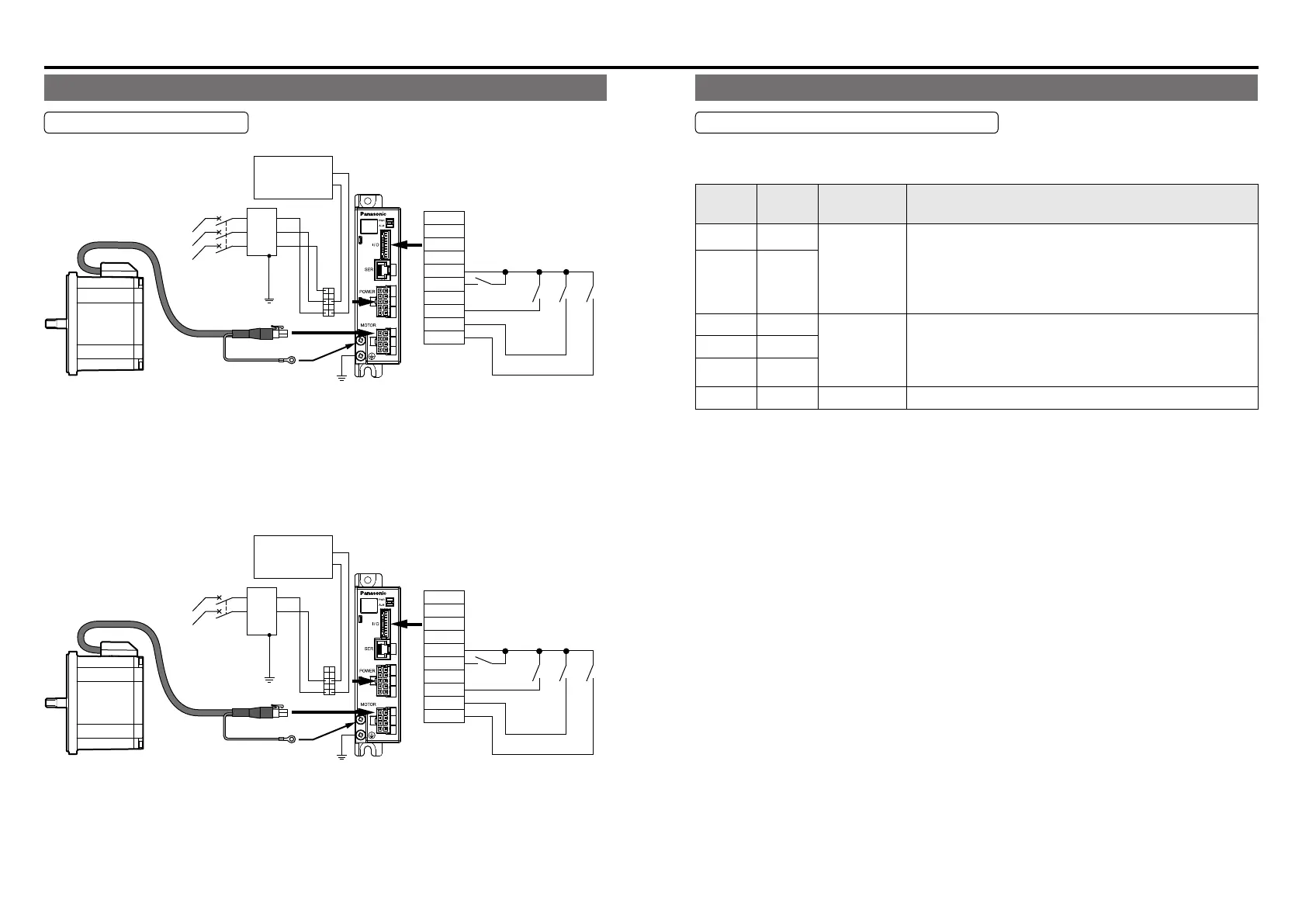

Standard wiring diagram
Function of terminal
Connector for power supply (POWER)
Connector on amplier side: Part No. 5569-10A1-210 (Molex Inc.) or equivalent.
(mating connector: Housing 5557-10R-210, Terminal 5556PBTL)
Terminal
number
Terminal
symbol
Terminal
name
Terminal explanation
3 B
Terminal for
external
regenerative
resistor
Please connect external regenerative resistor of an option
if needed.
External regenerative resistor name:
100 V type DV0P2890 (50 Ω)
200 V type DV0PM20068 (200 Ω)
5 P
6 L3
Terminal for
power supply
input
Connect the terminal to commercial power supply
conforming to voltage specication. When you use single
phase, connect the main power between L1 and L2
terminals.
8 L2
10 L1
1,2,4,7,9 NC
－
Do not connect anything.
