12

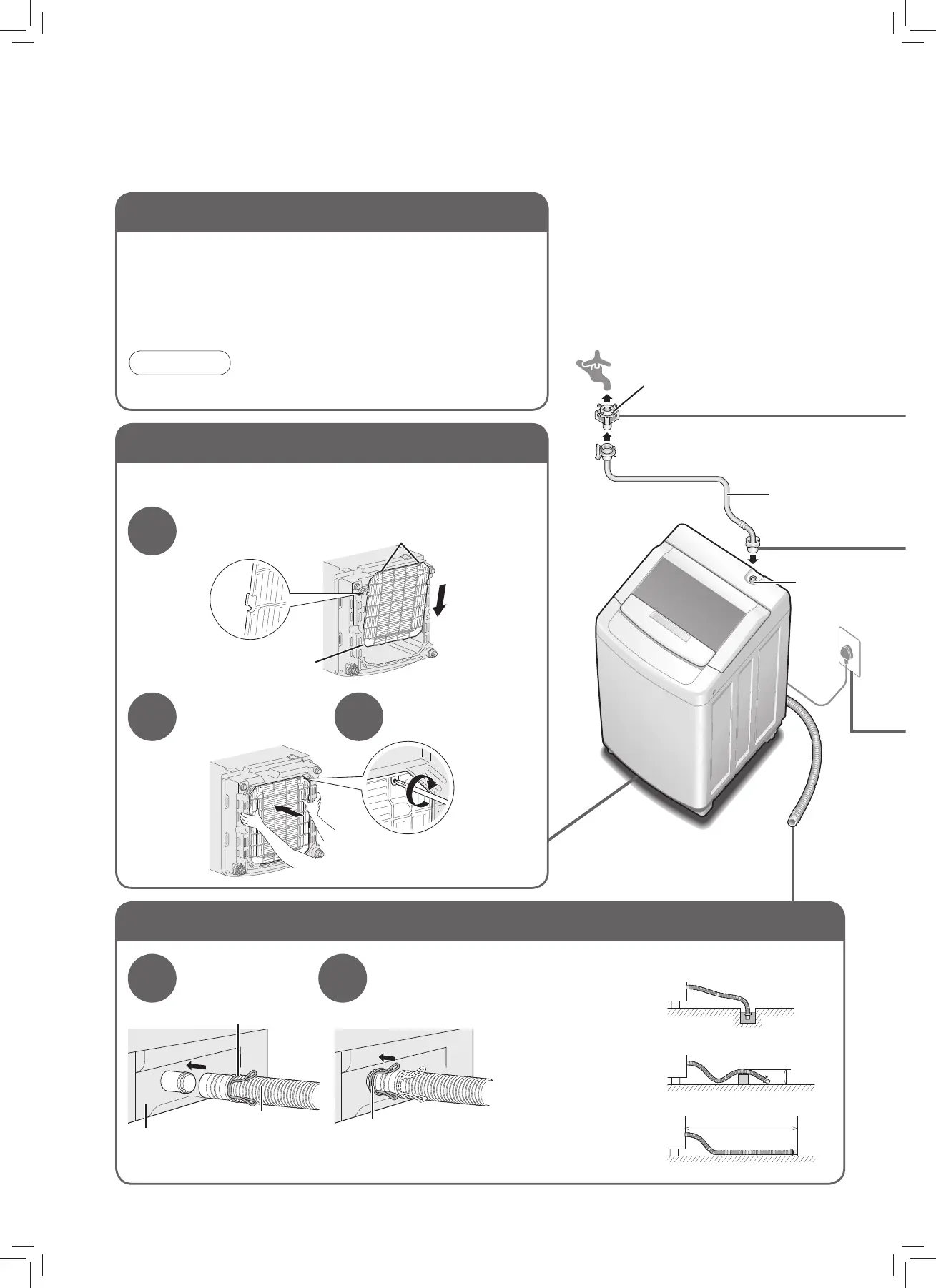

1. Check the installation location.
3. Attach the external drain water hose.
2. Attach the bottom cover.
Installation
■Avoid the following locations for installation.
• Locations where there is a possibility of freezing.
• Locations exposed to direct sunlight
(To prevent malfunction or deformation)
• Uneven or unstable locations
(on blocks, timbers, table with wheels attached, etc.)
● Do not block the opening of the bottom face with carpet, etc.
● Insert all the way seated.
NOTE
■Hose arrangement
10 cm
or less
NG
3 m or less
● Do not put the hose tip
under the water.
● The height should be
10 cm or less.
● The extension length
should be 3 m or less.
Hose band
External drain water hose
Main unit rear side
Hose band
(Bottom face)
Water supply
hose
Water tap adaptor
Water
supply
valve
screw
2
Push the claw parts
on both sides.
3
Fix with screws.
(2 places at right and left)
1
Connect to the
connection port.
2
Slide the hose
band in the arrow
direction.
1
Insert along the guide.
Preparation: Set a cardboard, etc. and lay the washing machine on
it. (Face the front side down.)
Screw hole
Claw
■If the installation, test run and inspection of the washing machine are not
carried out following this installation method, Panasonic will not be liable for
any accident or damage caused.
■Make sure to ask a service person for installation. Do not install by yourself.
Guide
W9901-8AN00.indd 12W9901-8AN00.indd 12 8/9/12 9:55 AM8/9/12 9:55 AM
To Next Page
