16
English

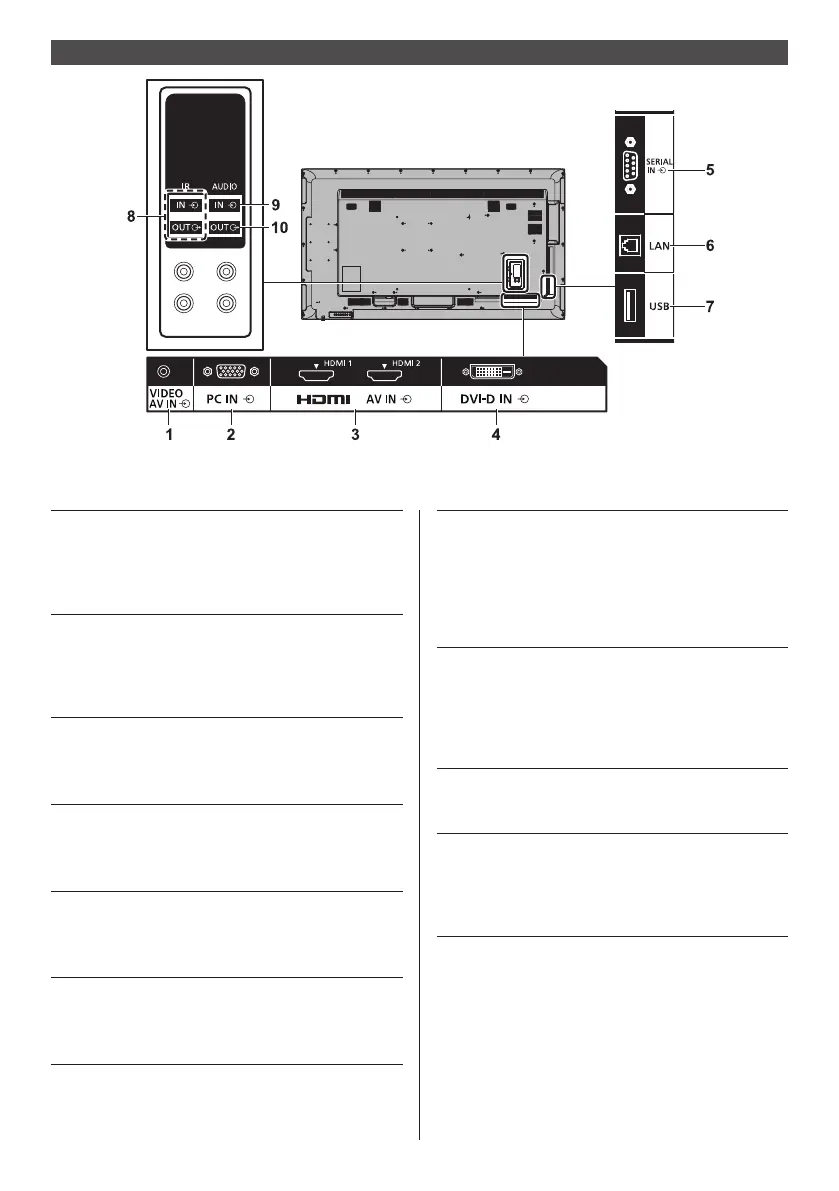

Video equipment connection
1 AV IN (VIDEO): Composite Video / Audio Input
Terminal
Connect to video equipment with
Composite signal output.
(see page 20)
2 PC IN: PC Input Terminal
Connect to video terminal of PC,
video equipment with “YP
BPR /
YCBCR” or “RGB” output.
(see page 19)
3 AV IN
(HDMI 1,
HDMI 2):
HDMI Input Terminal
Connect to video equipment such
as VCR or DVD player, etc.
(see page 17)
4 DVI-D IN: DVI-D Input Terminal
Connect to video equipment with
DVI-D output.
(see page 18)
5 SERIAL IN: SERIAL Input Terminal
Control the Display by connecting
to PC.
(see page 21)
6 LAN: LAN Terminal
Control the Display by connecting
to Network.
(see page 64)
7 USB: USB Terminal
Connect the USB memory to use
[USB media player]. Also, this
can be used to supply power of
up to 5V/1A to an external device
when the picture is displayed.
(see page 23)
8 IR IN, IR OUT: Infrared Signal Input / Output
Terminal
Use this when operating more
than one display with one remote
control.
(see page 22)
9 AUDIO IN: Audio input terminal shared
with DVI-D IN and PC IN
(see page 18, 19)
10 AUDIO OUT: Analogue Audio Output
Terminal
Connect to audio equipment with
analogue audio input terminal.
(see page 23)
To Next Page
