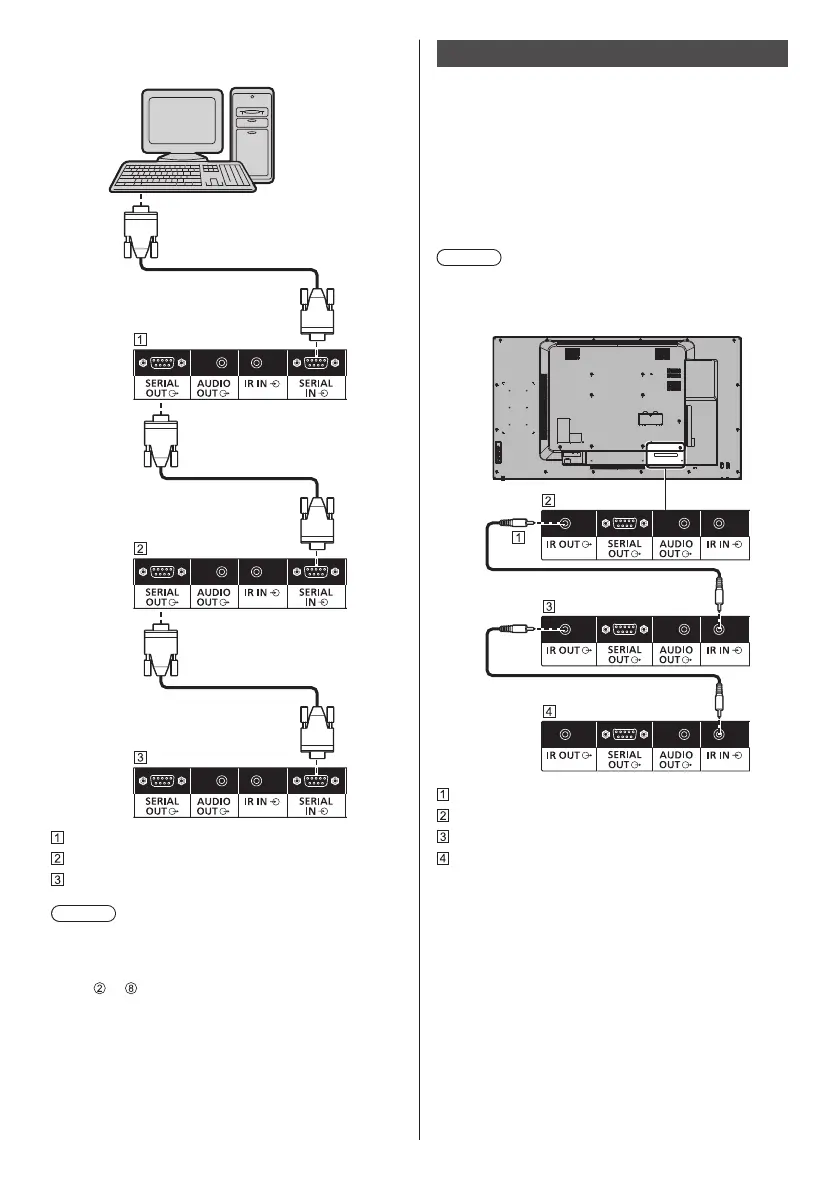

It is possible to daisy chain multiple displays, and
then control the specific display with PC.
First display
Second display
Third display
Note
●
When daisy chaining, set [Options] - [Serial daisy
chain position]. (see page 75)
●
When daisy chaining, use a straight cable which pin
No.
to are hard wired.
IR IN/IR OUT terminal connection
Connect the mini plug (M3) cable from the IR OUT
terminal of the first display to the IR IN terminal of the
second display.
The infrared signal of the first display is sent to the
second display.
In this case, the IR (infrared ray reception on the remote
control sensor) on the second display does not operate.
Repeating the above connections enables the daisy
chain connection.
Note
●
Connection cables are not supplied with this unit.
●
Daisy chain connection is possible only between the
displays of the same series.
Stereo mini plug (M3) cable (commercially available)
First display
Second display
Third display
