Paradox Digiplex DGP-848 User Manual

Digiplex DGP-848 - 5 - Programming Guide
Zone Programming
Zone Description Module Section 8-digit Serial Number Input# Section Define Assign Zone Options
1
________________ __________
[001]
__/__/__/__/__/__/__/__ __/__/__
[101]
___ ___
1 2 3 4 5 6 7 8
2
________________ __________
[002]
__/__/__/__/__/__/__/__ __/__/__
[102]
___ ___
1 2 3 4 5 6 7 8
3
________________ __________
[003]
__/__/__/__/__/__/__/__ __/__/__
[103]
___ ___
1 2 3 4 5 6 7 8
4
________________ __________
[004]
__/__/__/__/__/__/__/__ __/__/__
[104]
___ ___
1 2 3 4 5 6 7 8
5
________________ __________
[005]
__/__/__/__/__/__/__/__ __/__/__
[105]
___ ___
1 2 3 4 5 6 7 8
6
________________ __________
[006]
__/__/__/__/__/__/__/__ __/__/__
[106]
___ ___
1 2 3 4 5 6 7 8
7
________________ __________
[007]
__/__/__/__/__/__/__/__ __/__/__
[107]
___ ___
1 2 3 4 5 6 7 8
8
________________ __________
[008]
__/__/__/__/__/__/__/__ __/__/__
[108]
___ ___
1 2 3 4 5 6 7 8
9
________________ __________
[009]
__/__/__/__/__/__/__/__ __/__/__
[109]
___ ___
1 2 3 4 5 6 7 8
10
________________ __________
[010]
__/__/__/__/__/__/__/__ __/__/__
[110]
___ ___
1 2 3 4 5 6 7 8
11
________________ __________
[011]
__/__/__/__/__/__/__/__ __/__/__
[111]
___ ___
1 2 3 4 5 6 7 8
12
________________ __________
[012]
__/__/__/__/__/__/__/__ __/__/__
[112]
___ ___
1 2 3 4 5 6 7 8
When option [7] in section [502] is enabled for
PGM1 to act as a zone input for two-wire smoke
detectors, the control panel will recognize PGM1
as input number 255.

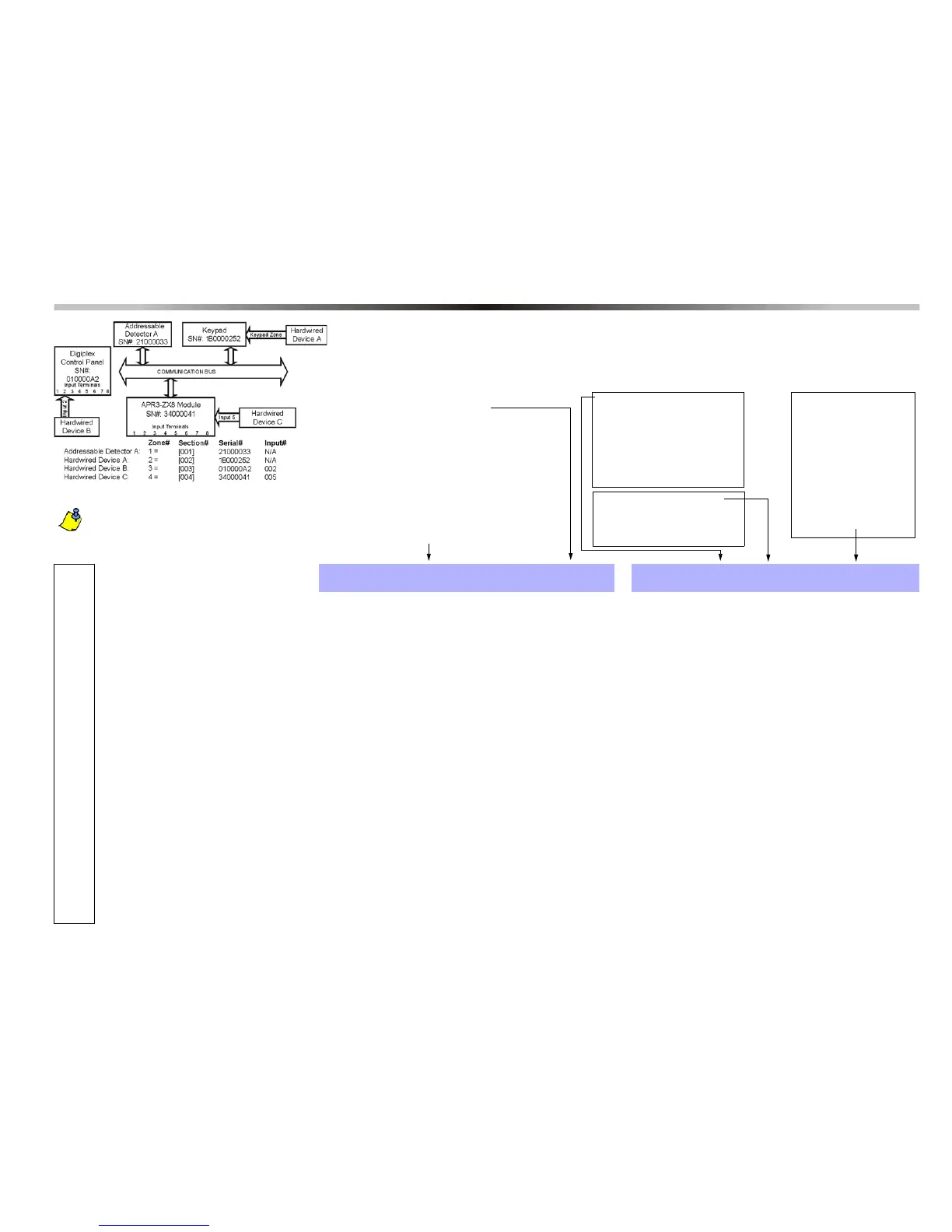

Zone Numbering
Sections [001] to [048] represent zones 1 through
48. This feature tells the control panel where the
detection device is connected and which of the 48
zones is assigned to that device.
Enter 3-digit [
INPUT NUMBER] of the
Module to which the hardwired
detection device is connected.
NOTE: No input number is required
for Addressable Motion Detectors,
Keypad Zones or the Access Control
Module (DGP2-ACM1P).
Enter a 8-digit [
SERIAL NUMBER] of
the Addressable Detector or
Module to which the hardwired
detection device is connected.
Zone Definitions
0 - Disabled (Default)
1- Entry Delay 1 8- 24Hr Burglary
2- Entry Delay 2 9- Delayed 24Hr Fire
3- Entry Delay 3 A- Standard 24Hr Fire
4- Entry Delay 4 B- Stay Delay 1
5- Follow C- Stay Delay 2
6- Instant D- Stay Delay 3
7- 24Hr Buzzer E- Stay Delay 4
Zone Partition Assignment
1- Zone Assigned to Partition1 (Default)
2- Zone Assigned to Partition 2
3- Zone Assigned to Partition 3
4- Zone Assigned to Partition 4
Zone Options
[1] Auto Zone Shutdown Enabled
[2] Bypass Enabled (Default)
[3] Stay Zone
[4] Force Zone
[5] [6] Zone Alarm Type
off off Steady Alarm
off on Pulsed Alarm
on off Silent Alarm
on on Report Only
[7] Intellizone
[8] Delay before transmission
Zone Parameters
Sections [101] to [148] represent zones 1 through 48. This
feature defines the type of zone, its partition assignment and
the zone’s options.
