Paradox Digiplex EVO EVO48 User Manual

EVO Systems 3
2.0 Basic Operation
The following sections will introduce you to the functions of the buttons, lights, and messages on your keypad.

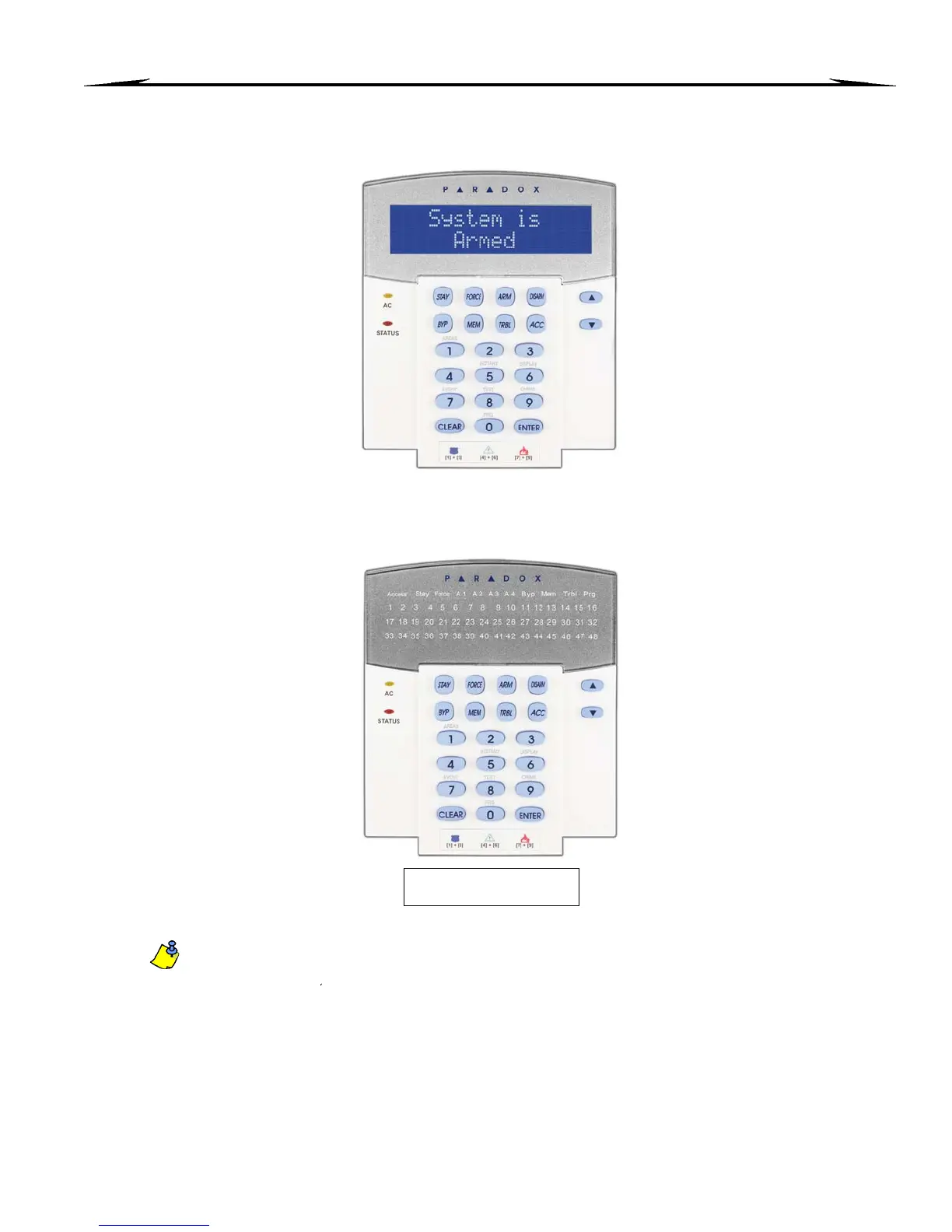

Figure 1: LCD Keypad Basic Overview
Figure 2: DGP2-648BL LED Keypad Overview
The LCD screen will guide you
with detailed messages.
Use the arrow buttons to scroll
through the current menu when the
arrows appear in the LCD screen.
AC Light:
ON = AC power
OFF = Power failure
STATUS Light:
When Green:
ON = All zones are closed.
OFF = One or more zones are
open.
FLASH = Exit Delay in progress
When Red:
ON = Area(s) armed
OFF = Area(s) disarmed
The keypad will display the status
of all its assigned areas.
ACTION Lights: (Access, Stay,
Force, Byp, Mem, Trbl and Prg)
Lights will illuminate according to
the status of the system.
Numerical Lights: (Zones)
ON = Zone is open
OFF = Zone is closed (OK)
FLASHES = Zone / fire loop
AC Light:
ON = AC Power (OK)
OFF = Power failure
AREA Lights: (A1, A2, A3 and A4)
ON = Area armed
OFF = Area disarmed
FLASH = Area in alarm
STATUS Light:
When green:
ON = All zones closed
OFF = One or more zones are
open
FLASH = Exit Delay in progress
When red:
ON = Area(s) armed
OFF = Area(s) disarmed
FLASH = System in Alarm
For all keypads, the [ENTER] key will save and exit, and the [CLEAR] key will exit without saving.
[ENTER] and [CLEAR] represent the LCD/LED keypads’ enter and clear keys unless both keys are
shown to have a different function.
