Parker Compax3 Series Installation Manual

Parker EME
Compax3 device description
192-120102 N7 - February 2004 25

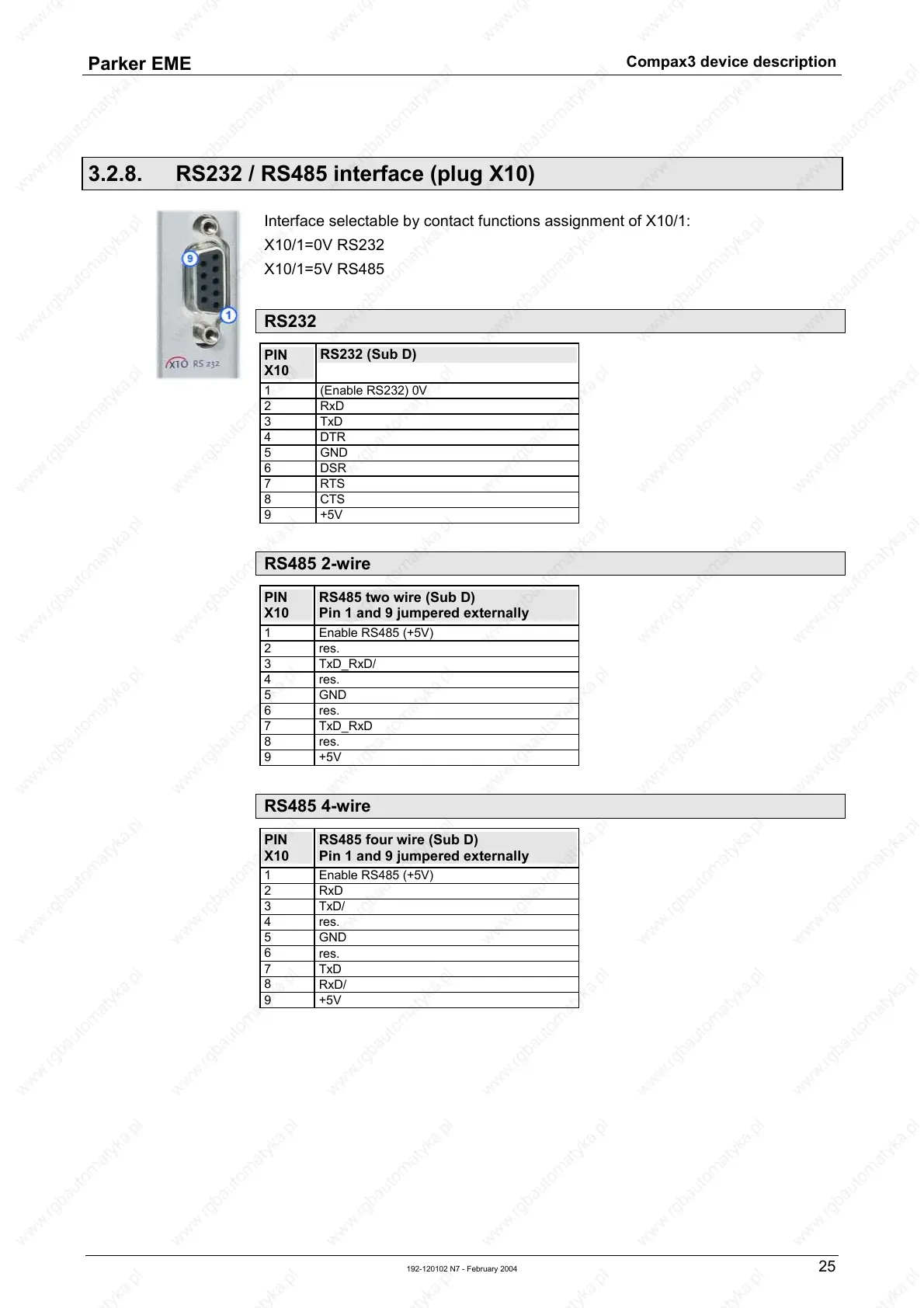

3.2.8. RS232 / RS485 interface (plug X10)
Interface selectable by contact functions assignment of X10/1:
X10/1=0V RS232
X10/1=5V RS485
RS232
PIN
X10
RS232 (Sub D)
1 (Enable RS232) 0V
2RxD
3
TxD
4DTR
5
GND
6DSR
7
RTS
8CTS
9
+5V
RS485 2-wire
PIN
X10
RS485 two wire (Sub D)
Pin 1 and 9 jumpered externally
1 Enable RS485 (+5V)
2
res.
3TxD_RxD/
4
res.
5GND
6
res.
7TxD_RxD
8res.
9+5V
RS485 4-wire
PIN
X10
RS485 four wire (Sub D)
Pin 1 and 9 jumpered externally
1
Enable RS485 (+5V)
2RxD
3TxD/
4res.
5GND
6
res.
7TxD
8
RxD/
9+5V

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
