26
INTELLIFLO
®
2 VST Variable Speed Pump Installation and User’s Guide

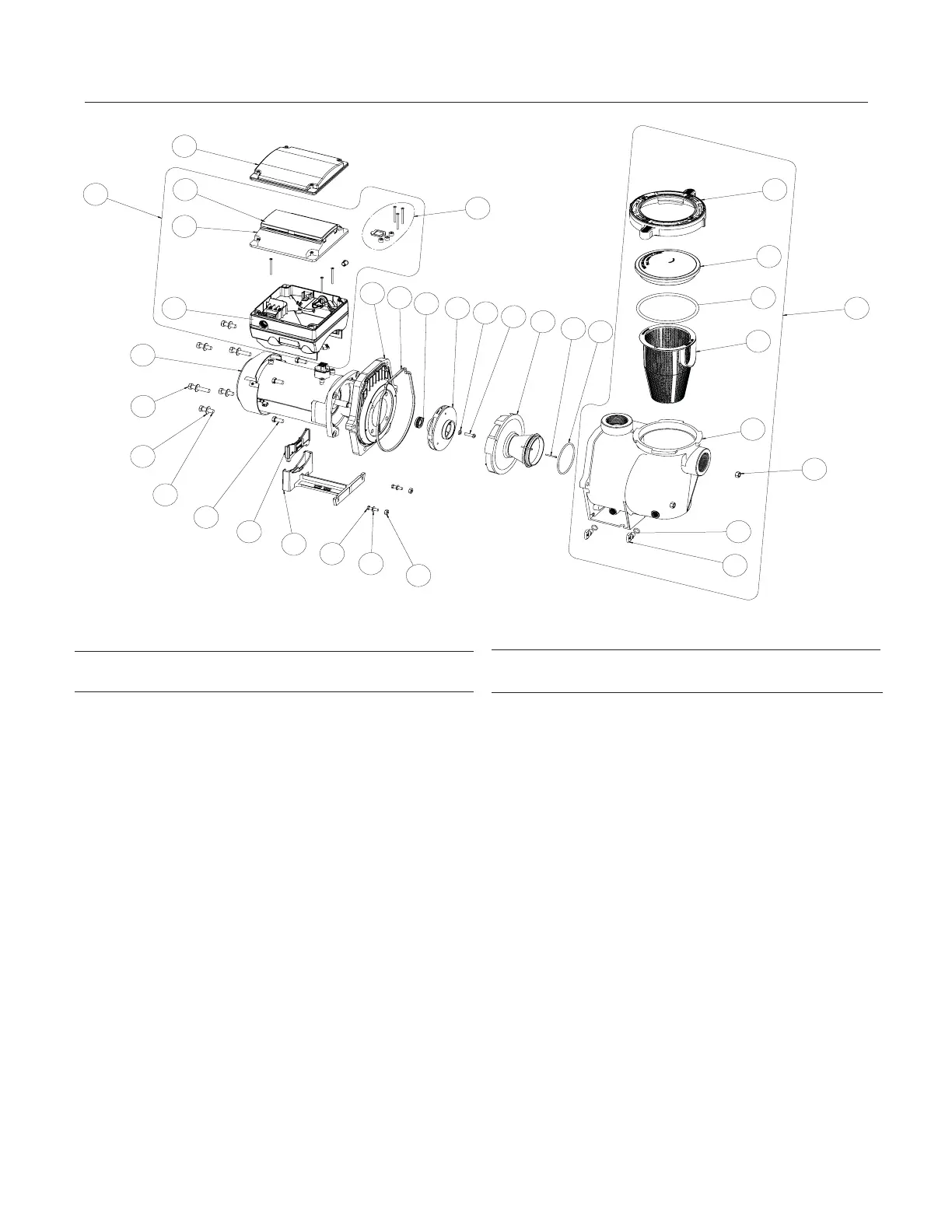

REPLACEMENT PARTS
1
2
3
4
5
33
6
7
9
10
11
12
13
14
16
15
17
20
21
24
25
26
27
29
30
31
32
28
18
19
22
23
34
8
Item Part
No. No. Description
1 357199 CLAMP, CAM AND RAMP
2 357151 SEE THROUGH LID
3 350013 LID O-RING
4 070387 STRAINER BASKET
5 350015 VOLUTE WF
6 192115 O-RING 112 FOR DRAIN PLUG (QTY 2)
7 071131 DRAIN PLUG WF (QTY 2)
8 357243 VOLUTE KIT (Contains Items #1-7)
9 071406 NUT 1/4-20 HEX SS (QTY 2)
10 072186 WASHER, FLAT 1/4" ID x 5/8" OD (QTY 2)
11 071657 SCREW 1/4-20 x 1" HEX CAP SS (QTY 2)
12 070927 FOOT WF
13 070929 FOOT INSERT WFE PUMP MOTOR SUPPORT
14 070429 BOLT, HEX HEAD 3/8-16 x .875" (QTY 4)
15 072184 WASHER, FLAT 3/8" ID x 7/8" OD (QTY 6)
16 070430 BOLT, HEX HEAD 3/8-16 x 1.25" (QTY 4)
17 070431 BOLT, HEX HEAD 3/8-16 x 2" (QTY 2)
18 350305S MOTOR, 3.2 kW 10 POLE
19 356878Z DRIVE, VARIABLE SPEED
20 357527Z KEYPAD ASSEMBLY KIT (Contains Item #21)
21 400100 KEYPAD COVER
22 356904Z KEYPAD RELOCATION KIT (Contains Keypad
Relocation Cable and Blank Drive Cover)
Item Part
No. No. Description
23 355685 DRIVE HARDWARE KIT (Contains Drive
Screws, Drive Gasket and Screw Caps)
24 074564 SEAL PLATE
25 357100 SEAL PLATE GASKET
26 071734S MECHANICAL SEAL
27 073131 IMPELLER
28 075713 RUBBER WASHER, IMPELLER SET SCREW
29 071652 IMPELLER SET SCREW 1/4-20 LH THREAD
30 072928 DIFFUSER
31 071660 DIFFUSER SET SCREW 4-40 x 1-1/8 (QTY 2)
32 355227 DIFFUSER O-RING
33 071403 NUT 3/8-16 BRASS, NICKEL PLATED (QTY 2)
34 356879Z DRIVE KIT (Contains Items #19-23)
* 350122 50 FT. COMMUNICATION CABLE
* 350202 SEAL PLATE KIT w/ MECHANICAL SEAL
(Contains Items #24-26)
* 354044 POWER END - INTELLIFLO 2 VST
* 357603 UNION KIT (Contains 2 Complete Unions for 1
Pump - Not Included with Pump)
* 350199 SEAL PLATE KIT, OZONE/SALT RESISTANT
IntelliFlo
®
2 VST Variable Speed Pump Replacement Parts (Almond Colored Pumps)
Note: (*) Items not shown
