Using the Operator Control Panel
Use the operator control panel to start and stop the IntelliFlo
®
2
VST Variable Speed Pump, program, set, and change speeds
(RPM), and access pump features and settings.
Button 1: Press to select Speed 1 (750 RPM). LED on
indicates Speed 1 is active.
Button 2: Press to select Speed 2 (1500 RPM). LED on
indicates Speed 2 is active.
Button 3: Press to select Speed 3 (2350 RPM). LED on
indicates Speed 3 is active.
Button 4: Press to select Speed 4 (3110 RPM). LED on
indicates Speed 4 is active.
Back: Goes one step back in menu; exits without saving
current setting.
Save: Saves current menu item setting. When a parameter
has been adjusted the "Save?" icon will be displayed.
Menu: Accesses the menu items when and if the pump is
stopped.
Select: Press to select the currently displayed option on
the screen.
Arrow buttons:
• Up arrow: Move one level up in the menu or increase
a digit when editing a setting.
• Down arrow: Move one level down in the menu or
decrease a digit when editing a setting.
• Left arrow: Move cursor left one digit when editing a
setting.
• Right arrow: Move cursor right one digit when editing
a setting.
Controls and LEDs on Keypad
Quick Clean: Pump increases to a higher RPM (for
vacuuming, cleaning, adding chemicals, etc.). LED light is
on when active.
Time Out: Allow the pump to remain in a stopped state for
a set period of time before resuming normal operation. LED
is on when active.
Start/Stop button: To start or stop the pump. When LED is
on, the pump is running or in a mode to start automatically.
Reset button: Reset alarm or alert.
LEDs:
On: Green light when pump is powered on.
Warning: On if warning condition is present.
Alarm: Red LED on if alarm condition occurs.
See “Alerts and Warnings” on page 23.

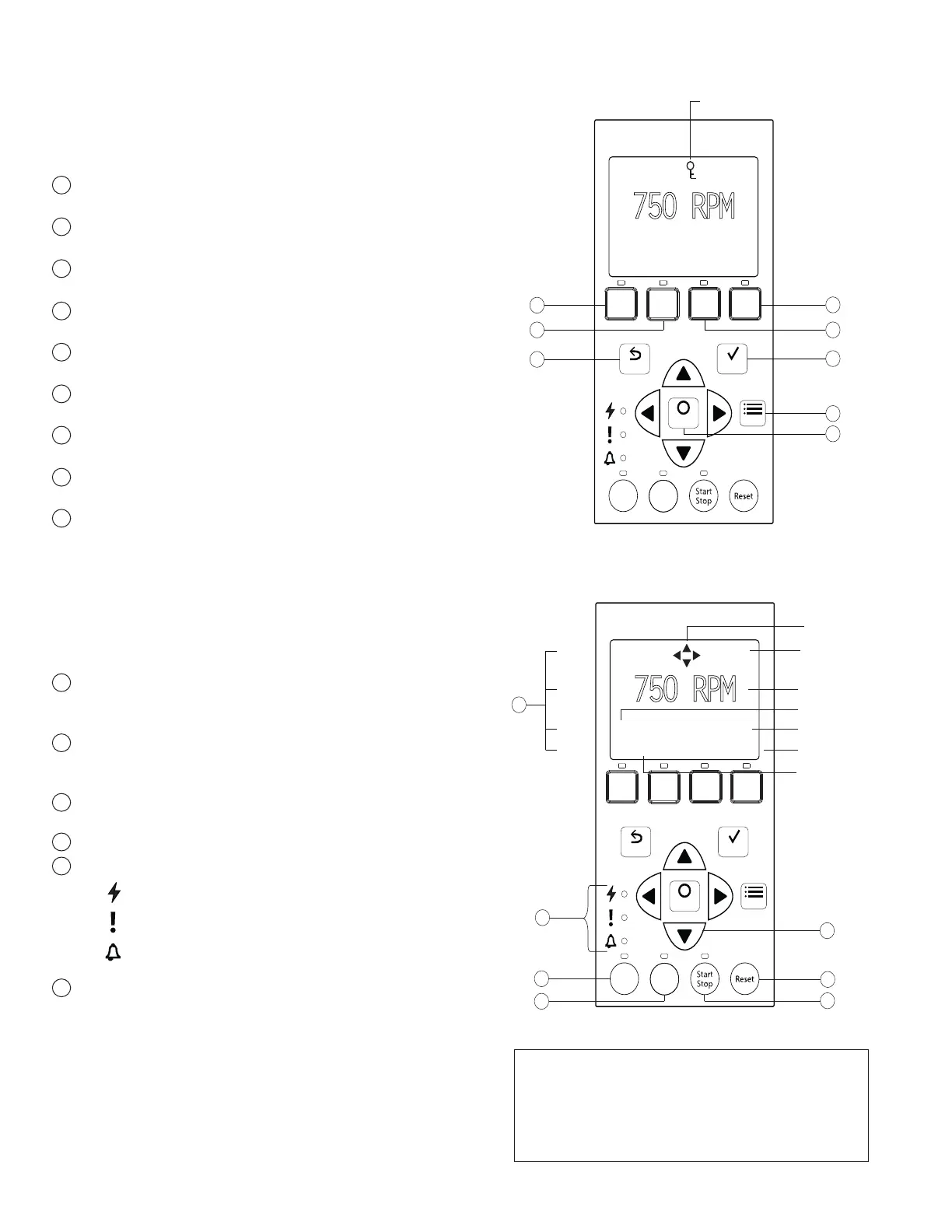

Control Panel LCD Screen:
• Line 1: Key icon indicates password protection mode is
active. If password protect is not enabled, no key icon
is displayed. Also shows current time of day. Active
cursors display when arrow key input is available.
• Line 2: Displays current pump speed (RPM).
• Line 3: Countdown time and watts
• Line 4: Current pump status and current feature. "Save?"
will display on this line when a parameter adjustment
can be saved.
5
1
2
3
4
6
7
8
9
10
11
12
13
14
15
Note: Always close the keypad cover after using
the keypad.
Note: Using screwdrivers or pens to program the
pump will damage the keypad overlay. Use your
fingers only when programming the pump.
Key Lockout Icon
Current Speed
Countdown Time
"Save?" Icon
Current Time
Current Power Usage
Active Cursors
Current Running
Feature
