Adjustment
11 - 9
11.05.07 Feed dog motion of bottom feed dog
Requirement
With the needle bar at a position 0.6 past b.d.c. on the PFAFF 1051/1181 or in position
0.6 past t.d.c. on the PFAFF 1053/1183 the feed dog must not make any feeding motion
when reverse-feed lever 3 is operated at the longest stitch length setting.
1
2
3

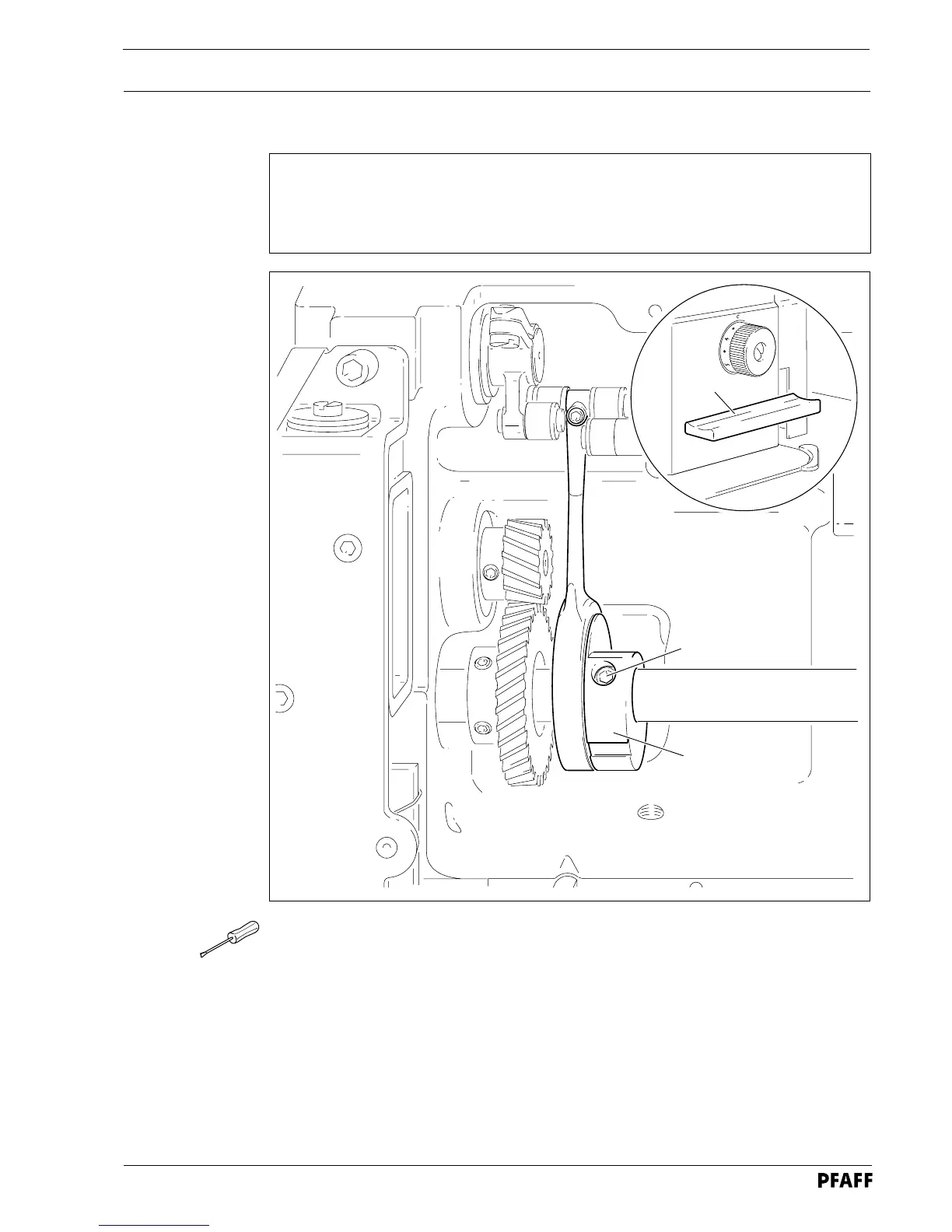

Fig. 11 - 08
● Set the longest stitch and the needle bar at the corresponding position.
● Adjust eccentric 1 (loosen screws 2 a little) according to Requirement, but make sure it is
not moved sideways.
