Adjustment
11 - 33
11.07.05 Manual trimming check
Requirement
Two threads must be cut perfectly both left and right in the cutout of thread catcher
11
11
1.
● Move thread catcher 1 by hand to its front point of reversal.
● Double the thread and insert into catcher cutout.
● Carry out trimming operation manually.
● If the threads are not cut according to the requirement, align thread catcher 1
(screws 2) with knife 3 accordingly.
● Move stop 4 against thread catcher 1 and tighten screws 5.
● Check chapter 11.06.02 Lateral alignment of the thread catcher, and readjust if
necessary.
2
1
5
4
3
1

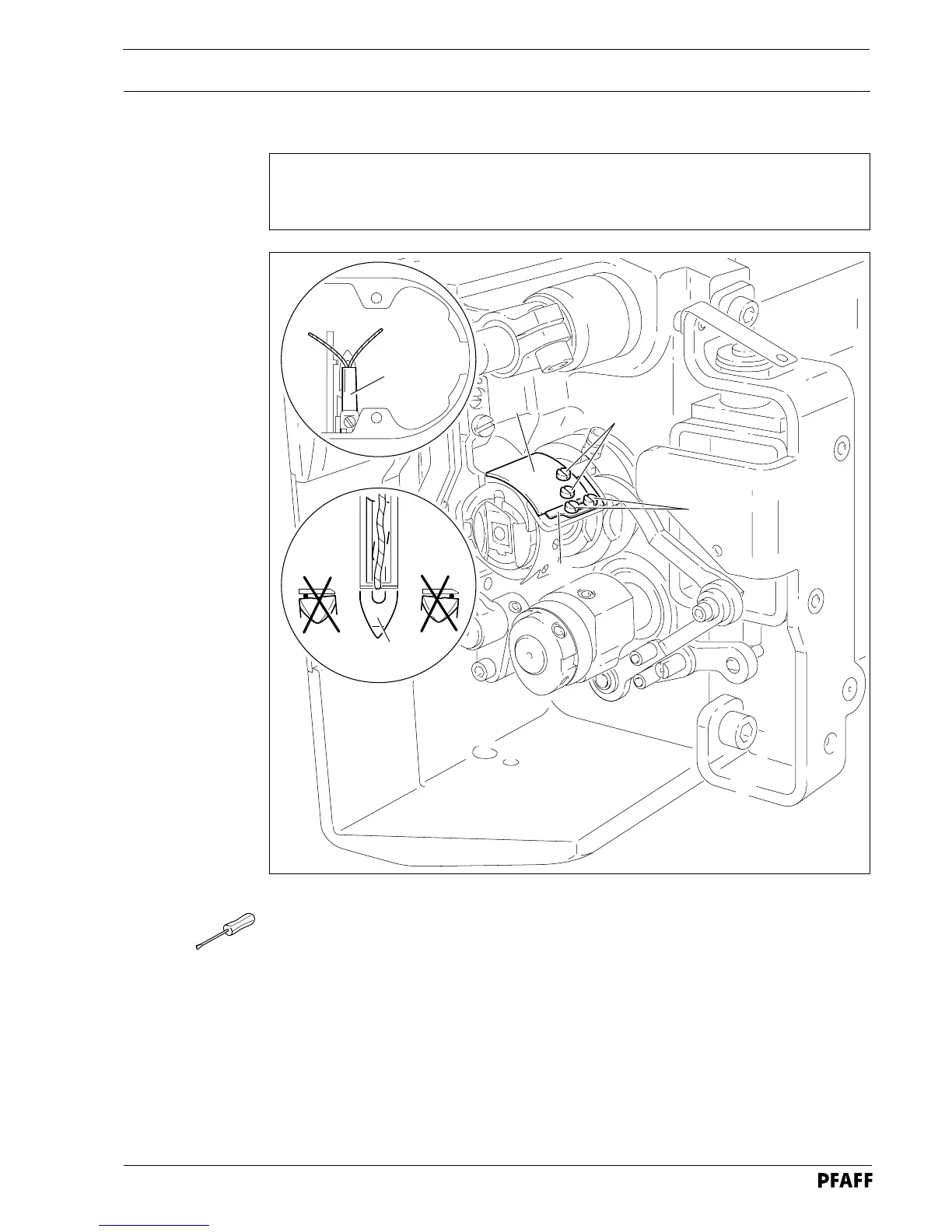

Fig. 11 - 32
