Adjustment
11 - 38
11
.09
Adjusting the automatic presser foot lift -910/06
Requirement
When the automatic presser foot lift is operated, the clearance between the presser foot
and the needle plate must be
9 mm
9 mm
9 mm
9 mm
9
m
m for a small needle bar stroke and
13 mm
13 mm
13 mm
13 mm
1
3
m
m for a large
needle bar stroke.
●
Move magnet
1
(screw
2
) according to the
requirement.

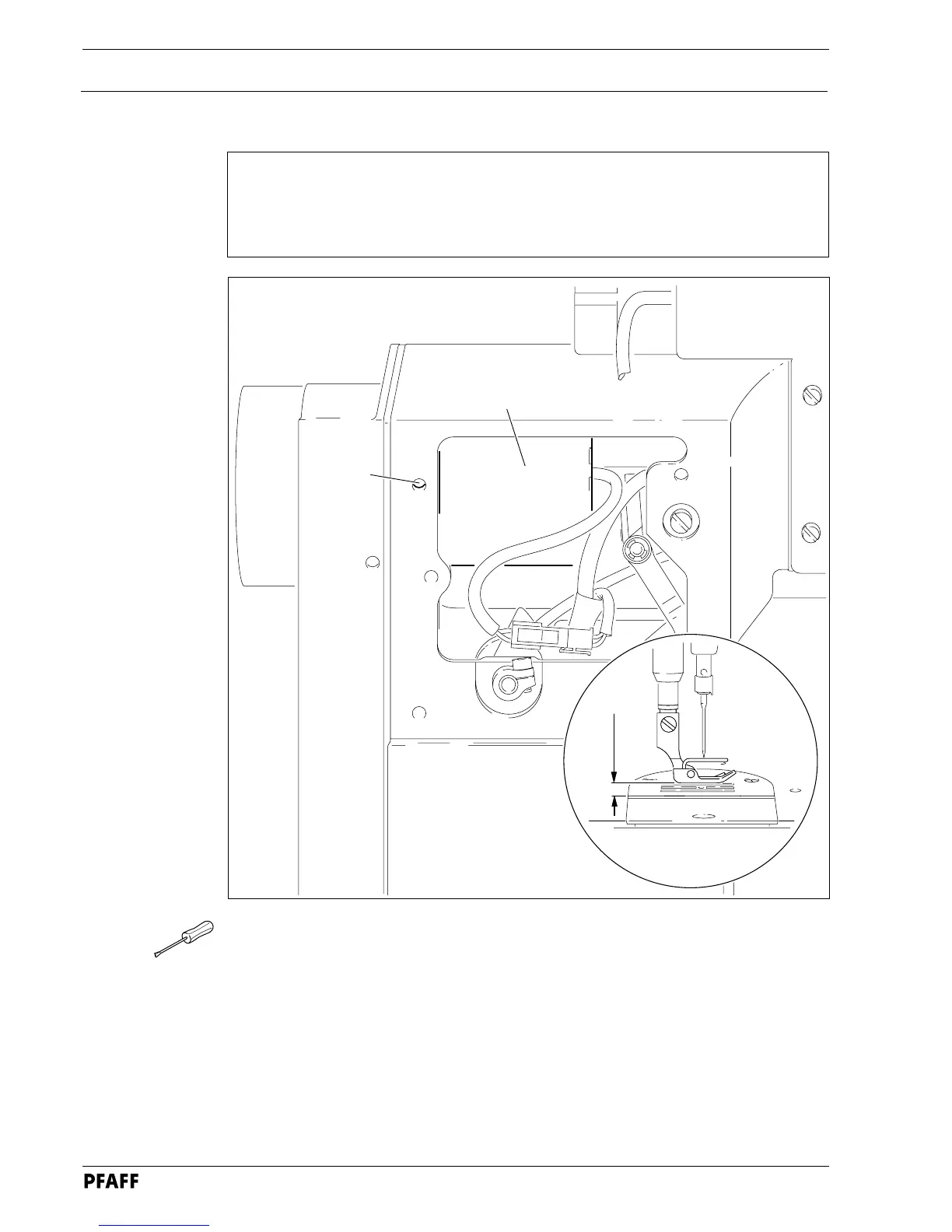

Fig. 11 - 37
2
1
9 or 13 mm
69
71
