11
A
ED
C
B
FG
Vertical position

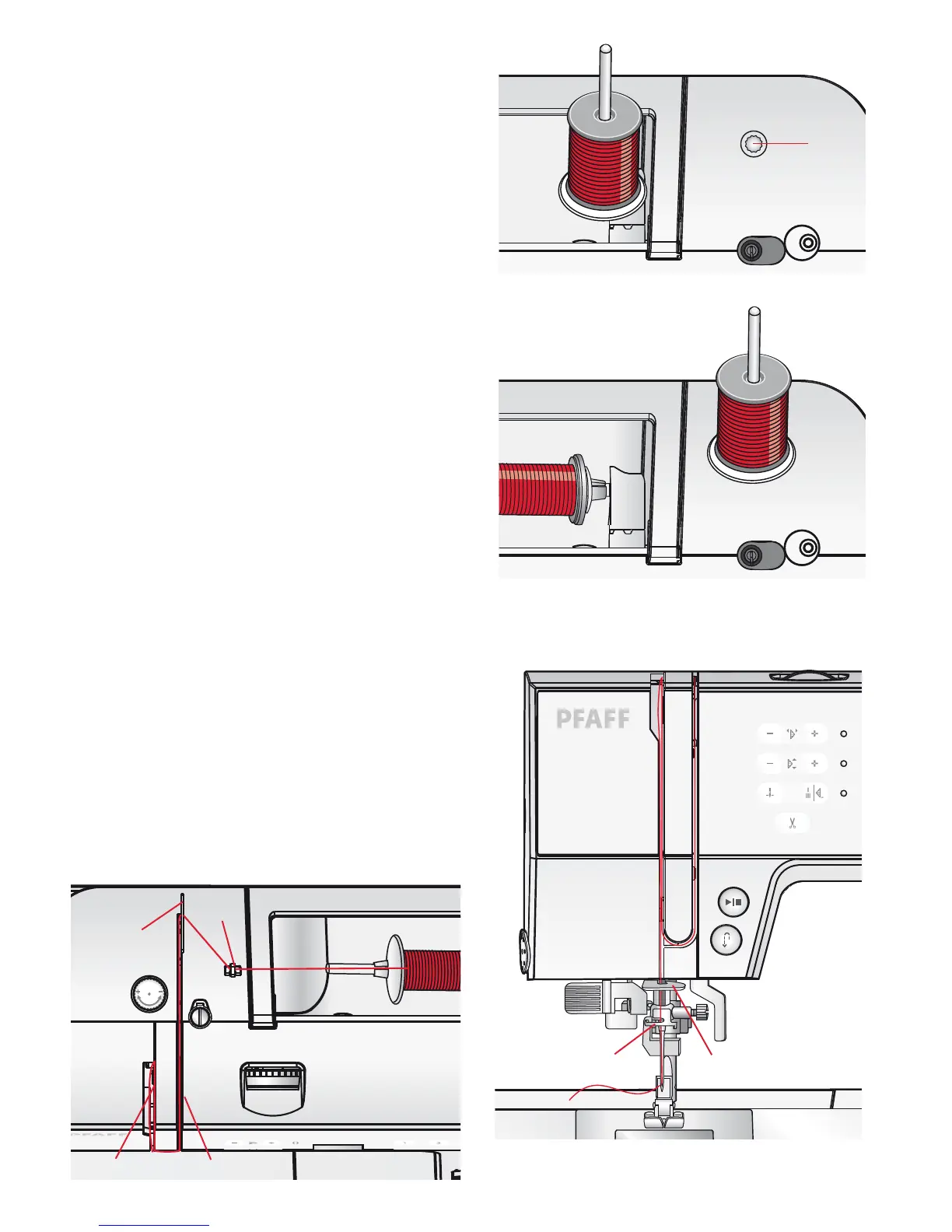

Raise the spool pin to the vertical position. Slide
on the large spool cap and place a felt pad under
the thread spool. This is to prevent the thread from
reeling off too fast.
Do not place a spool cap on top of the spool pin as
that would prevent the spool from rotating.
$X[LOLDU\VSRROSLQ
The auxiliary spool pin is used when winding a
bobbin thread from a second spool of thread or for
a second spool when sewing with a twin needle.
Insert the auxiliary spool pin into the hole at the
top of the machine (A). Slide on a large spool cap
and place a felt pad under the thread spool.
Threading the machine
Make sure that the presser foot is raised and the
needle is in its highest position.
3ODFHWKHWKUHDGRQWKHVSRROSLQDQGÀWWKH
appropriately sized spool cap.
2. Pull the thread into the right thread guide (B)
from front to back and the left thread guide (C)
from back to front. Pull the thread between the
tension discs (D).
3. Thread down through the right-hand
threading slot and then upwards through the
left-hand threading slot.
4. Bring the thread from the right into the take-up
lever (E) and down in the left-hand threading
slot, into the lower thread guide (F) and to the
needle thread guide (G).
5. Thread the needle.
Main spool pin in vertical position.
Auxiliary spool pin.
