Pfaff SHE Series User Manual

GB
Worm gear screw jack SHE type1 and type2
High-performance screw jack HSE type1 and type2
T13.01.000.0000.0003
2019/04 Rev. Index E
Subject to technical modifications Design changes under reserve Sous réserve de modifications techniques !
17

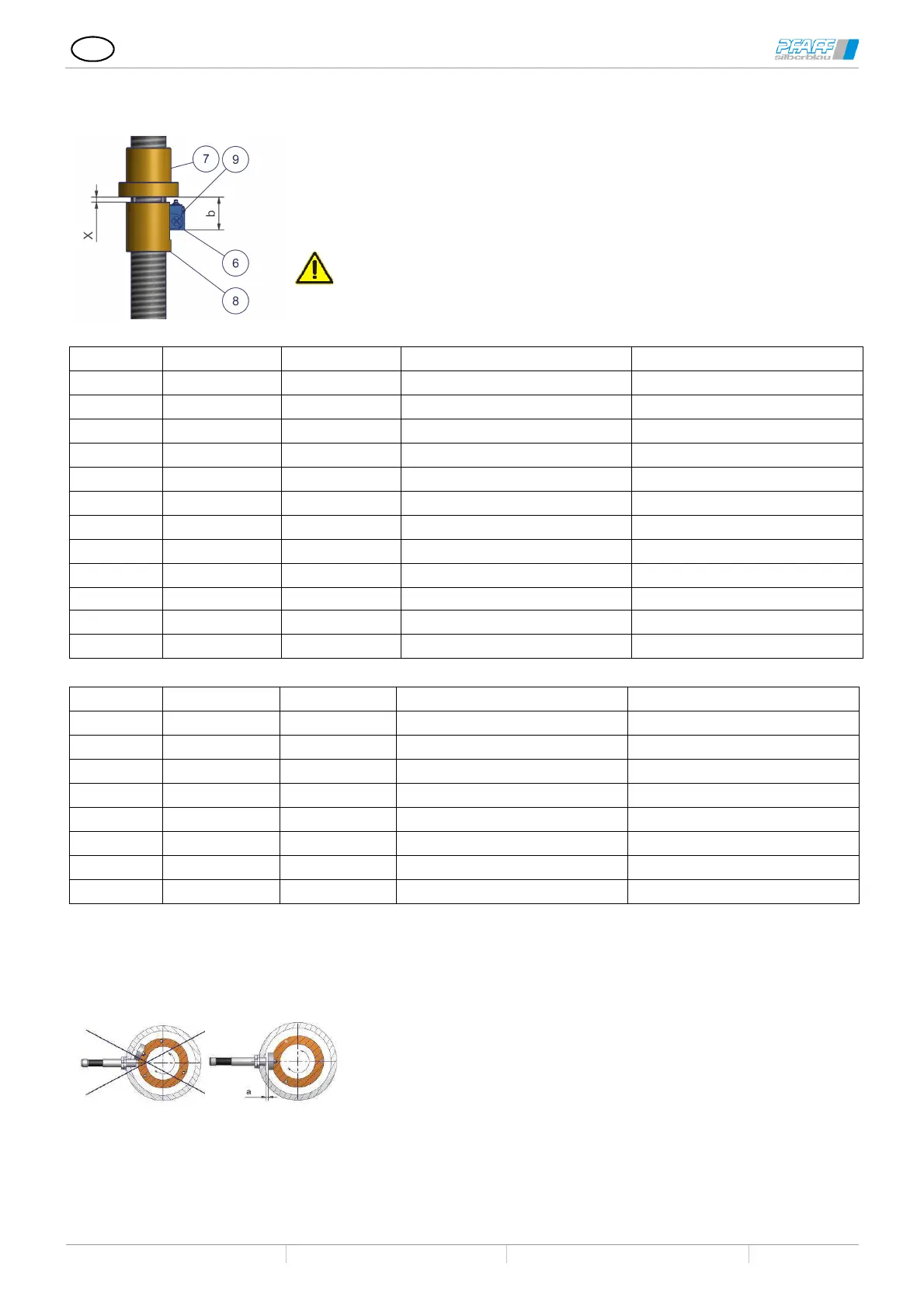

7.8 Installing the nut breakage limit switch (Ba2)
1. Screw limit switch (6) onto safety nut (8), slightly tighten screw (9).
2. Adjust distance of the limit switch (measurement b).
3. Tighten screws
Secure screws against unintentional loosening.
Observe the tightening torques!
7.8.1 Distance b, SHE series
Size Dimension b Distance X Limit switches Drawing no.
SHE 1.1 62,5 5 XCK T2110P16 13.02.103/0023
SHE 3.1 66 10 XCK T2110P16 13.02.105/0000-2600
SHE 5.1 68 10 XCK T2110P16 13.02.108/0000-2600
SHE 15.1 66 10 XCK T2110P16 13.02.109/0000-2600
SHE 20.1 66 10 XCK T2110P16 13.02.115/0028
86 10 XCK T2110P16 13.02.115/0027
SHE 25 87 10 XCK P102 13.02.012/0046-0000
SHE 35.1 94 15 XCK T2110P16 13.02.035/0016-0000
80 10 XCK T2110P16 13.02.035/
SHE 50.1 99 15 XCK T2110P16 13.02.113/0006
SHE 75 97 15 XCK T2110P16 13.02.075/0000-2300
SHE 100.1 15
7.8.2 Dimension b, HSE series
Size Dimension b Distance X Limit switches Drawing no.
HSE 32
HSE 36.1 66 10 XCK T2110P16 16.02.101/0000-0000Bl05
HSE 50.1 66 10 XCK T2110P16 16.02.113/0000-0000Bl05
HSE 63.1 66 10 XCK T2110P16 16.02.114/0000-0000Bl05
HSE 80.1 66 10 XCK T2110P16 16.02.104/0000-0000Bl05
HSE 100.1 130 15 XCK J 567 16.02.105/0000-0000Bl05
89,5 10 XCK P 2102P16 16.02.105/0013
HSE 125.1 88 15 XCK P 2102P16 16.02.106/0001-0000
7.9 Installing the pulse generator (rotational speed monitor)
7.9.1 Pulse by cam
1. Turn the worm wheel (worm) until the pulse cam is visible in the fixing
thread of the pulse generator.
2. Screw in the sensor until it contacts the outer diameter of the pulse
cam.
3. Turn the transmitter back again by 0.5 to 1 rotation until the distance
between the transmitter and the pin is between 0.5 and 1 mm
(measurement a).
4. Tighten the hexagon nut to fasten the pulse generator. When doing
this, ensure that the pulse generator does not turn!
