Pfaff SHE Series User Manual

GB
Worm gear screw jack SHE type1 and type2
High-performance screw jack HSE type1 and type2
T13.01.000.0000.0003
2019/04 Rev. Index E
Subject to technical modifications Design changes under reserve Sous réserve de modifications techniques !
22

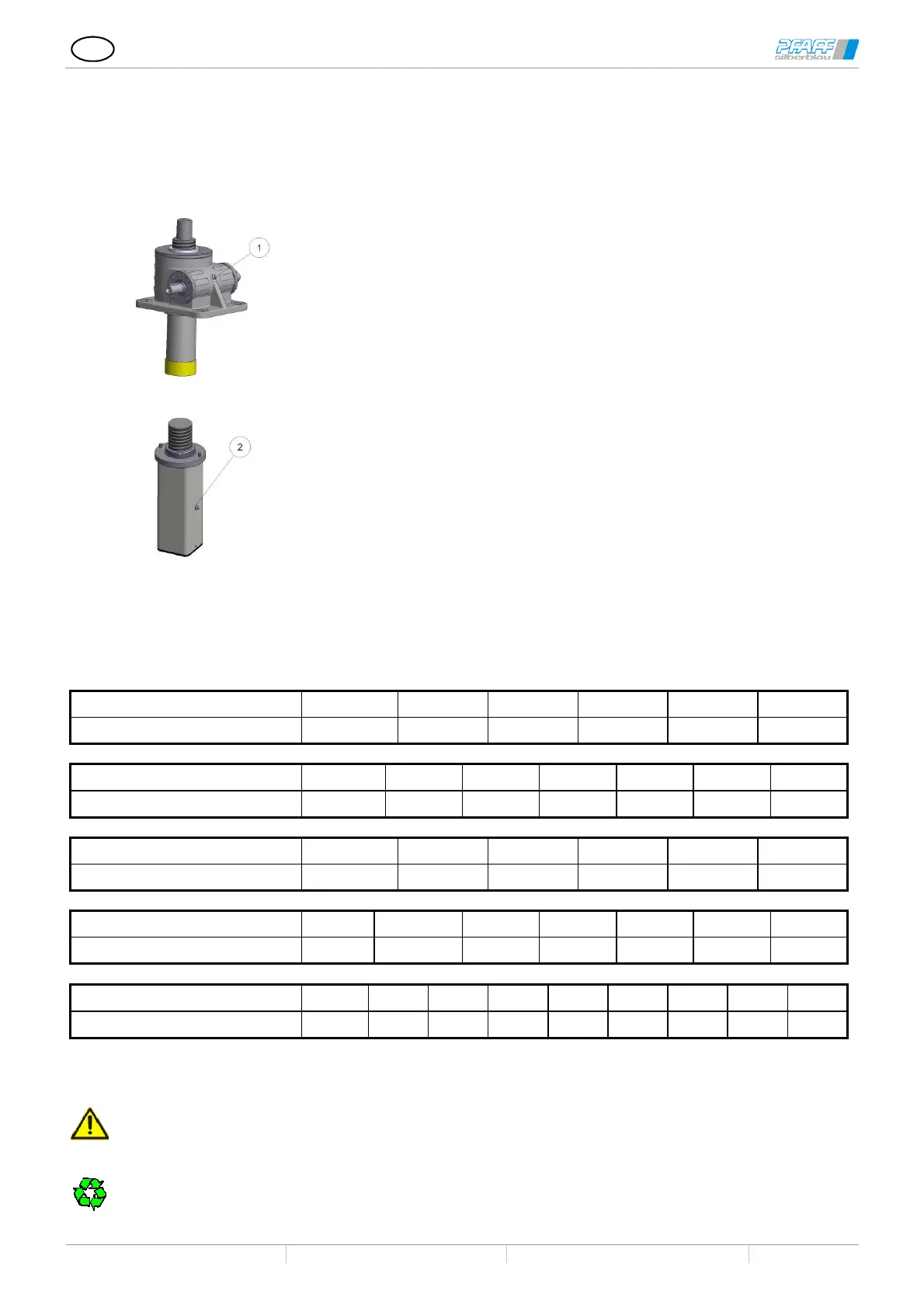

9.2.8 Gear unit lubrication
For information on the oil level, location of the oil sight glasses, venting and drain screw, refer to Chapter
7.1.1 and 7.2.1 Mounting positions
9.2.9 SHE with grease lubrication
Lubricate the lubrication nipple (1) at the gear box with the grease gun.
Press the grease until it discharges from the seal lip or from the venting
bore.
Max. grease amount 20 ml or at least SHE 20.1 5% of the complete filling
amount (see 9.2.12)
Observe screw jack and attachment parts.
Remove excess grease (e.g. in sheath tube or bellows).
9.2.10 Grease the torsional lock (V)
Lubricate the lubrication nipple (2) at the guiding tube with the grease gun.
Grease amount about 20 ml at 500 mm lift height.
9.2.11 HSE and SHE with oil lubrication
Check oil fill level at the oil sight glass and refill if necessary.
Visual check for leaks
9.2.12 Lubrication amounts
SHE gear box with grease lubrication
SHE unit size 0,5 1.1 3.1 5.1 15.1 20.1
Grease amount about (kg)
0,05 0,1 0,2 0,35 0,9 2,0
SHE unit size 25 35 50.1 75 100.1 150.1 200.1
Grease amount about (kg)
1,3 2,5 4 5 10 10
Gear box with oil lubrication
SHE unit size 0,5 1.1 3.1 5.1 15.1 20.1
Oil amount about (l)
0,05 0,1 0,2 0,35 0,9 2,0
SHE unit size 25 35 50.1 75 100.1 150.1 200.1
Oil amount about (l)
1,3 2,5 4 5 10 10
HSE size 32 36.1 50.1 63.1 80.1 100 125 140 200
Oil amount about (l)
0,07 0,15 0,4 0,7 1,5 2,1 5,0 10 15,5
9.3 SHE with low-viscosity grease level in the lift gear box
Low-viscosity lubrication according to order confirmation, The maintenance of the lift gear box with low-
viscosity grease level does not differ from screw jacks with standard grease filling.
Observe the types of grease according to the order confirmation
10 Decommissioning
When decommissioning the system, recycle or dispose of the various system components and/or screw
jacks according to the legal requirements.
