15. OPTIONAL UPGRADES
REQUIREMENTS: PHANTEKS 3.5” HDD MODULAR BRACKET PH-HDDKT_02)
NOT INCLUDED
Requires 4x 6-32x5mm screws
*Bracket not included
Front View Front View
1
Back View
2
3

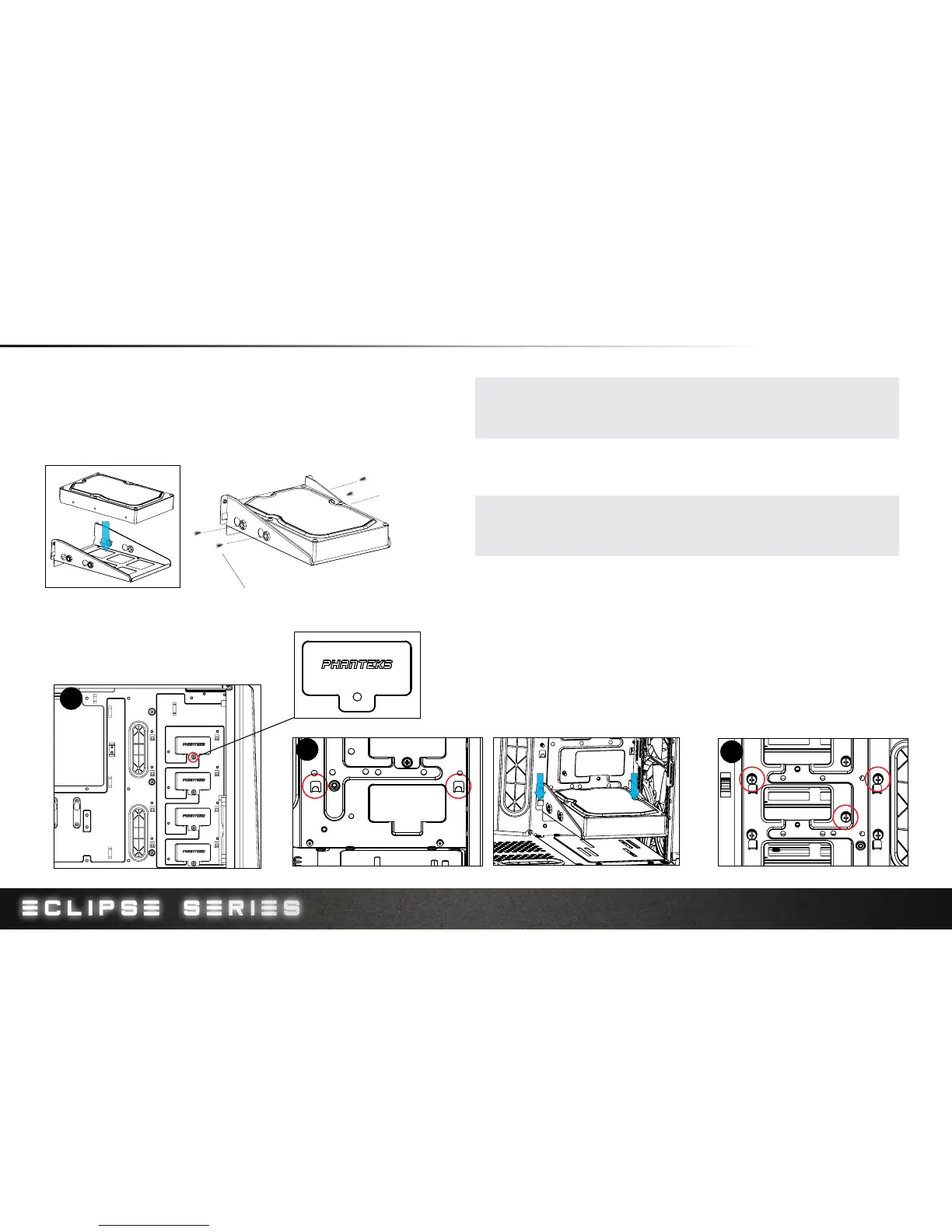

3.5” HDD MODULAR BRACKET INSTALLATION UP TO 4X EXTRA HDD’S
Step 1. Remove the HDD cover by removing the m3 Screw
Step 2: Align the HDD bracket to the slot and drop in.
Step 3: Screw in from the back with thumb screws to lock the bracket in
place.
第一步：拧下M3螺钉，拆除硬盘盖。
第二步：对齐硬盘支架和插槽并放入。
第三步：使用拇指螺钉从后侧拧紧，将支架锁定到位。
手順 1: m3 ネジを外して、HDD カバーを取り外します
手順 2: Align the HDD ブラケットをスロットに沿って差し込みます。
手順 3: 後ろからつまみネジで留めて、ブラケットを所定の位置に固定
します。
Шаг 1: Снимите крышку жестких дисков, удалив винт M3.
Шаг 2. Совместите кронштейн для жестких дисков со слотом и
вставьте его.
Шаг 3. Закрепите кронштейн на месте, привинтив его сзади
винтами с накатанной головкой.

Phanteks eclipse p400 Specifications

General

Type	PC
Material	Acrylonitrile butadiene styrene (ABS), Steel
Form factor	Midi Tower
Illumination	Yes
Product color	White
Illumination color	Blue
Maximum PSU length	270 mm
Number of 2.5\" bays	2
Number of 3.5\" bays	6
Illumination location	Front
Number of 5.25\" bays	0
Maximum CPU cooler height	160 mm
Number of expansion slots	7
Maximum graphics card length	395 mm
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Supported HDD sizes	2.5, 3.5 \
Power supply included	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Front fans installed	1x 120 mm
Rear fans diameters supported	120 mm
Front fans diameters supported	120, 140 mm
Front radiator sizes supported	140, 200, 240, 280, 360 mm
Number of rear fans supported (max)	1
Number of front fans supported (max)	3
Package depth	520 mm
Package width	300 mm
Package height	555 mm
Package weight	8000 g

Weight and Dimensions

Depth	470 mm
Width	210 mm
Height	465 mm
Weight	7000 g
