Circuit Descriptions
EN 38 Q543.1E LA7.
2009-Nov-20
7. Circuit Descriptions
Index of this chapter:
7.1 Introduction
7.2 Power Supply
7.3 DC-DC Converter
7.4 Front-End
7.5 HDMI
7.6 Video and Audio Processing - PNX8543
7.7 Common Interface CI+
Notes:
•Only new circuits (circuits that are not published recently)
are described.
• Figures can deviate slightly from the actual situation, due
to different set executions.
• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter
9. Block Diagrams) and circuit diagrams (see chapter
10. Circuit Diagrams and PWB Layouts).Where necessary,
you will find a separate drawing for clarification.
7.1 Introduction
The Q543.1E LA chassis (platform name TV543/32) is a
derivative from the Q543.3E LA chassis.
Main difference with the previous chassis is the absence of the
Timing Controller (TCON) on the SSB; it comes together with
the LCD Panel instead.
7.1.1 Implementation
Key components of this chassis are:
• PNX8543 Digital Colour Decoder
• HD1816AF Hybrid Tuner
• DRX3926K Demodulator
• TDA9996 HDMI Switch
• TPA3123D2PWP Class D Power Amplifier.
7.1.2 TV543 Architecture Overview
• For details about the chassis block diagrams refer to
chapter 9. Block Diagrams. An overview of the TV543
architecture can be found in Figure 7-1
.

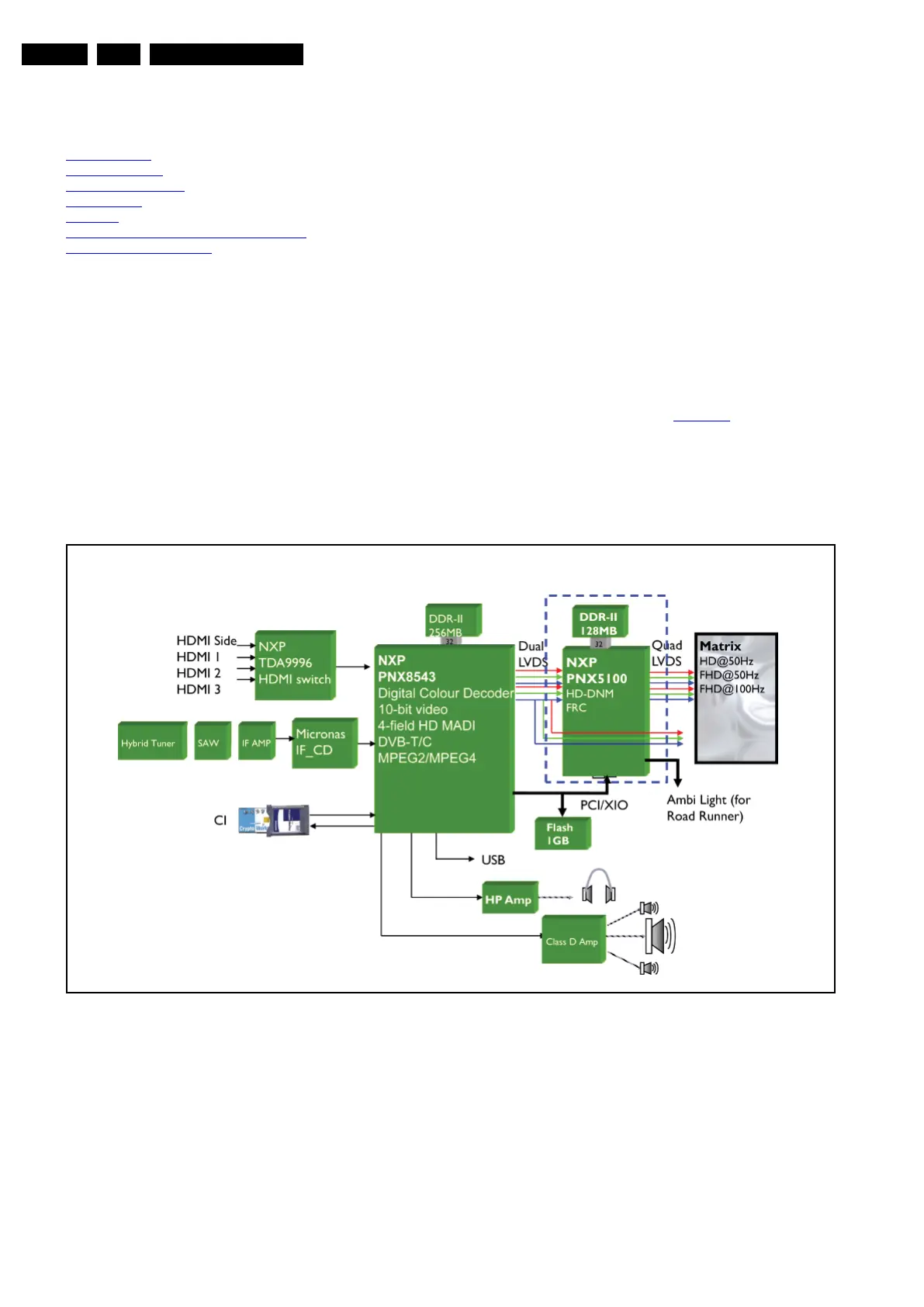

Figure 7-1 Architecture of TV543/32 platform
18540_200_090327.eps
091112
Optional for
Q548 chassis
To Next Page
