Philips 32PFL5404H/12 Service Manual

EN 56Q543.1E LA 9.
Block Diagrams
2009-Nov-20

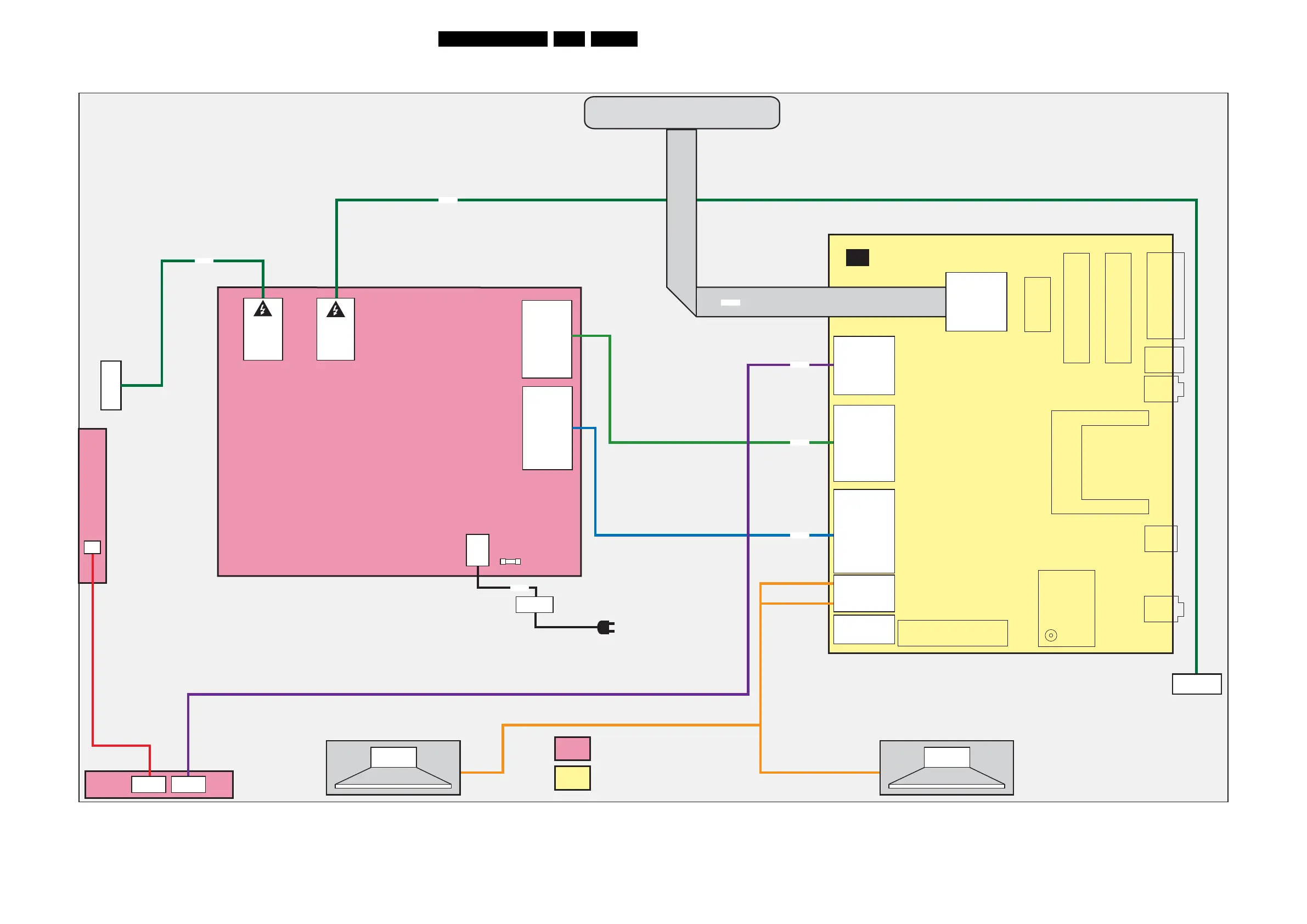

Wiring Diagram 37" (P&S)
KEYBOARD CONTROL (1114)
1M99 (B01B)
12. GND
11. SDA-SET
10. SCL-SET
9. POWER-OK
8. GND
7. BACKLIGHT-BOOST
6. BACKLIGHT-OUT
5. LAMP-ON-OUT
4. GND
3. GND
2. +12VD
1. +12VD
1M95 (B01B)
11. N.C
10. GNDSND
9. +AUDIO-POWER
8. +12V
7. +12V
6. +12V
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3-STANDBY
CN4
11. NC
10. GND_SND
9. +VSND
8. +12V
7. +12V
6. +12V
5. GND1
4. GND1
3. GND1
2. STANDBY
1. 3V3_ST
CN5
12. NC
11. NC
10. NC
9. INV_OK
8. A/P_DIM
7. BOOST
6. DIM
5. BL_ON_OFF
4. GND1
3. GND1
2. +12V
1. +12V
CN1 1. N 2. L
1M20 (B03G)
8. +5V
7. KEYBOARD
6. LED1
5. +3V3-STANDBY
4. LED2
3. RC
2. GND
1. LIGHT-SENSOR
1736 (B06A)
3. RIGHT-SPEAKER
2. GNDSND
1. LEFT-SPEAKER
1735 (B06A)
4. RIGHT-SPEAKER
3. GNDSND
2. GNDSND
1. LEFT-SPEAKER
8308
WIRING DIAGRAM 37" (P&S)
SSB
(1150)
B
INLET
MAIN POWER SUPPLY
IPB 37 PLHL-T845A
(1005)
TO
BACKLIGHT
CN2 1. HV1 2. N.C. 3. HV1
DANGEROUS
HIGH VOLTAGE
CN3 1. HV2 2. N.C. 3. HV2
DANGEROUS
HIGH VOLTAGE
IR LED PANEL
(1112)
LCD DISPLAY (1004)
J2
3P
J1
8P
FUSE
8M20
8M95
8M99
8Z01
LEFT SPEAKER
(5213)
RIGHT SPEAKER
(5213)
TO
BACKLIGHT
1G52 (B07B)
1. +VDISP-OUT_A
2. +VDISP-OUT_A
3. +VDISP-OUT_A
4. +VDISP-OUT_A
...
...
...
51. GND
18540_401_090311.eps
090629
Board Level Repair
Component Level Repair
Only For Authorized Workshop
8316
8319

Philips 32PFL5404H/12 Specifications

Picture and Display

aspect ratio	Widescreen
brightness	450 cd/m²
response time	5 ms
viewing angle	178º (H)/178º (V)
diagonal screen size	32 inch / 81 cm
panel resolution	1366 x 768p

Supported Display Resolutions

computer formats	640 x 480 60 Hz, 800 x 600 60 Hz, 1024 x 768 60 Hz, 1360 x 768 60 Hz, 1920 x 1080 60 Hz
video formats	480i 60 Hz, 480p 60 Hz, 576i 50 Hz, 576p 50 Hz, 720p 50, 60 Hz, 1080i 50, 60 Hz, 1080p 24, 50, 60 Hz, 1080p 24, 25, 30 Hz

Sound

output power (RMS)	2 x 10 W
sound system	Nicam Stereo

Power

ambient temperature	5°C to 35°C
mains power	220–240 V, 50 Hz
power consumption (typical)	83 W
standby power consumption	0.15 W

Weight and Dimensions

set dimensions	810 x 519 x 95 mm
set dimensions with stand	810 x 570 x 230 mm
weight including packaging	16 kg
product weight	10 kg
product weight with stand	13 kg
box dimensions	981 x 651 x 199 mm
VESA wall mount compatible	200 x 200 mm
