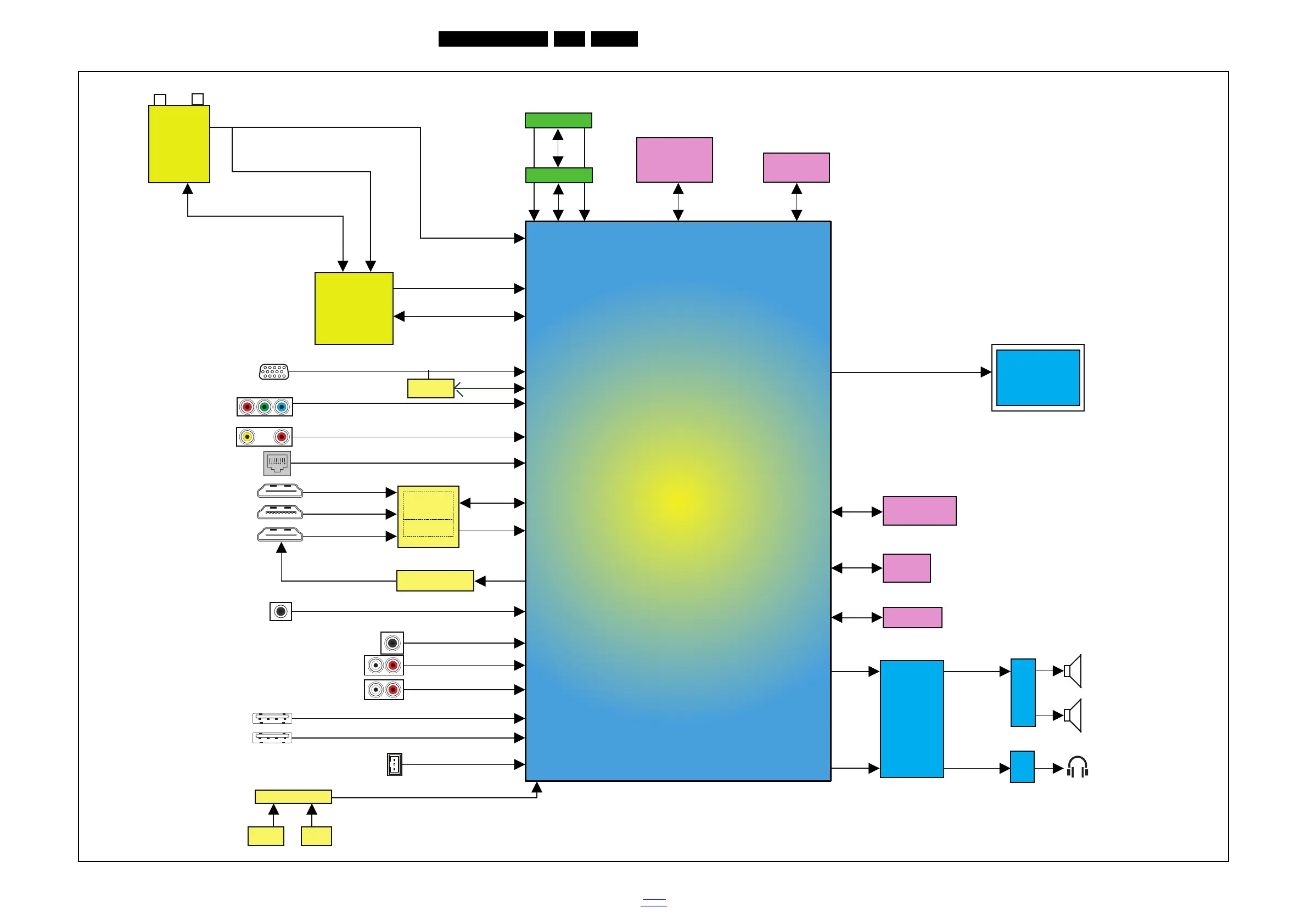

9.3 Block Diagram 4000
19260_402_120322.eps
120322
RF Tuner for
PAL/ISDB-T
HDMI DDC
IF(+/-) for PAL/SECAM
IF(+/-) for ISDB_T
VGA DDC
HDMI I
2
C
Switch
SN74LVC1G125DBVR
SPDIF
HY27UF082G2B
ARC(Audio Return Channel) for HDMI
H5TQ1G63DFR-H9C
Right Speaker
NAND FLASH 256 MB
× 2
Multimedia & debug, sw code download
USB(Multimedia)
Headphone
Headphone R/L
R/L PWM
Speaker R/L
RCA(AV)
RCA(AV R/L)
RCA(YPBPR R/L)
PHONE JACK(PC R/L)
SPDIF_OUT
SPDIF_OUT
R/L I
2
S
LCD panel T-CON
CN409 FPC Connector
CN408 for 26" to 40" WXGA, (Full HD) Panel
LVD S (50/60 Hz)
CN407
CN602
CN601
CN410
UART(TX/RX)
USB 2.0
Multimedia & debug, sw code download
USB(Multimedia)
SYSTEM EEPROM
M24C32
HDMI3
HDMI2
HDMI1
I
2
C
VGA EEPROM
M24C02
RJ45(MAC)
MAC
D-SUB(PC IN)
VGA
I
2
C
RESET Circuit
MAX809STRG
NC
NOR FLASH 64 MB
MX25L6445EM2I-10G
DC POWER
5V
5V
+24V(16V)
12V
TMDS
HDMI switch
I
2
C
SPI
DDRIII/1 Gb/ 1333 MHz
SUT-RB211T
IR-LED
UART 3pin
USB 2.0
Keyboard
MT5366CVNG
AUDIO AMP
Left Speaker
STA 381BW
Class-D amplifier
YPbPr
CVBS
RCA(YPBPR)
SII9185ACTU
[RX0 : RX3]
CXD2828
ISDB_T
Demodulator
TS DATA OUT(SERIAL)
CN701
