Philips 4000 series Service Manual

Circuit Diagrams and PWB Layouts
EN 69TPM9.2L LA 10.
2012-Mar-30
back to
div. table

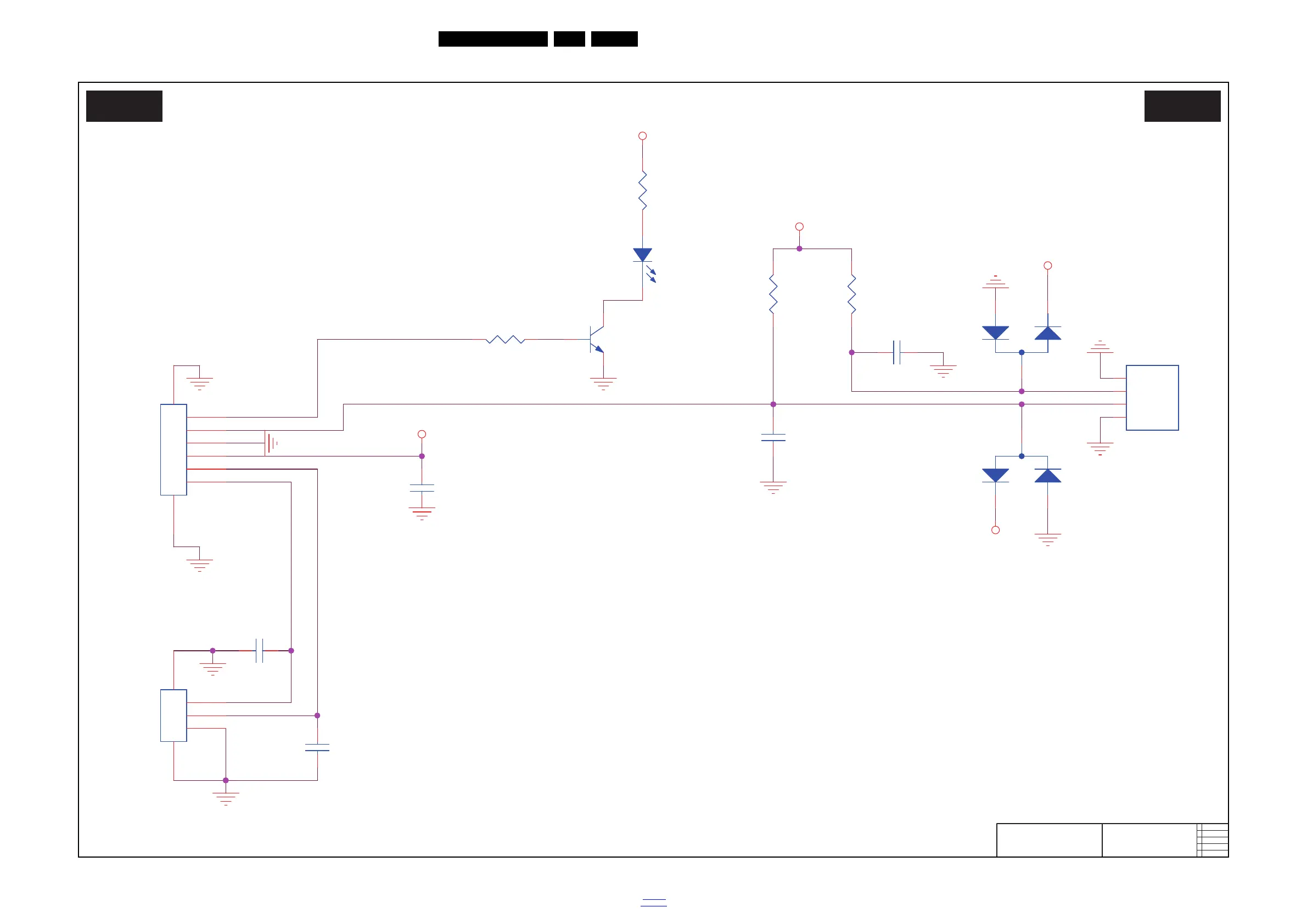

10.4 J 715G5251 IR/LED 3500/4000 series
10-4-1 Power Circuit
19240_511_120215.eps
120215
IR/LED board
J J
2011-10-05
1
715G5251
IR/LED board
RC6
KEY2
KEY1
LED_R
KEY1
KEY2
3V3SB
3V3SB
3V3SB
3V3SB
3V3SB
Red
--------><----|
----><----|
C201
100N 16V
C001
100N 16V
U201
TSOP75436W
GND
1
Vs
2
OUT
3
GND
4
Q301
BC847C
C203
NC/100P 50V
R201
NC/2K7 1/16W 5%
C204
1UF16V
D201
BAV99
3
1 2
R301
2K2 1/10W 5%
LED301
LED
12
R302
1K 1/10W 5%
CN001
CONN
1
2
3
45
CN201
CONN
1
2
3
4
5
6
78
D202
BAV99
3
1 2
R202
100R 1/10W 5%
C002
100N 16V
