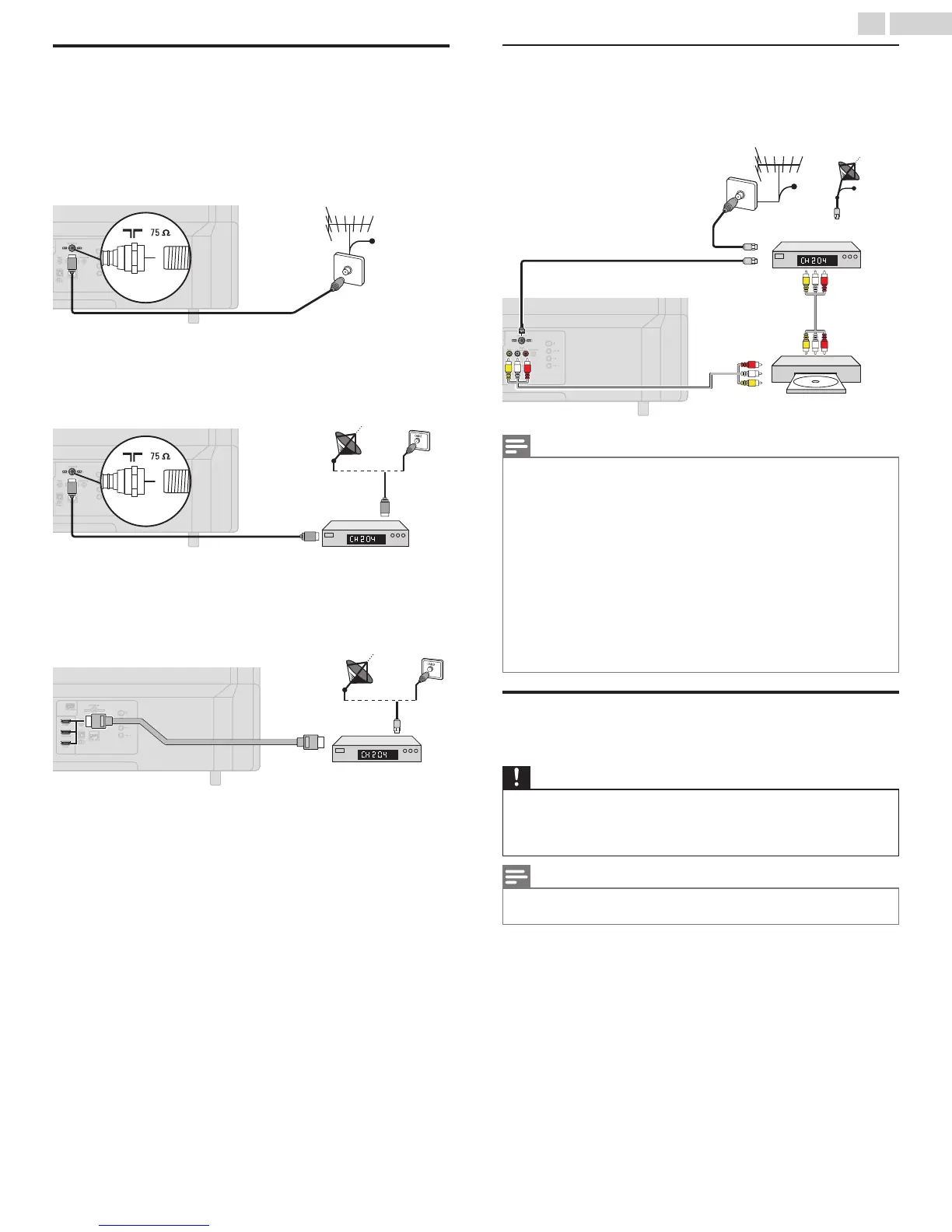

Connecting antenna or cable / satellite /
IPTV set-top box
Be sure your antenna or another device is connected properly before
plugging in the AC power cord.
If connecting to an antenna through an RF cable
Any DTV programs that are broadcast in your area can be received for
free through an antenna connection.
Cable
RF cable
Antenna
IN
OUT
If connecting cable / satellite / IPTV set-top box using an RF
cable
If the TV is connected to a cable / satellite set-top box via a coaxial
connection, set the TV to channel 3/4 or the channel specified by the
service provider.
RF cable
RF cable
Antenna
Set-top box
IN
IN
OUT
If connecting cable / satellite / IPTV set-top box using an
HDMI cable
If the TV is connected to a cable / satellite set-top box via an HDMI
cable, make sure you select the correct source by using w (SOURCE).
RF cable
HDMI cable
Set-top box
IN
IN
OUT
Connecting a cable / satellite / IPTV set-top box, Blu-
ray Disc™ / DVD recorder via composite connectors
and analog audio
Do not place your recorder too close to the screen because some
recorders can be susceptible to harmful interference from the TV.
Cable
Cable
RF cable
RF cable
Video + Audio (L/R)
cables
Video +
Audio(L/R)
cables
Set-top box
Satellite
Blu-ray Disc™ /
DVD recorder
IN
IN
IN
IN
IN
OUT
OUT
OUT
Note(s)
●
If you have any question about the DTV’s antenna, visit
www.antennaweb.org for further information.
●
Depending on your antenna system, you may need different types of
combiners (mixers) or separators (splitters) for HDTV signal. The minimum
RF bandpass on these devices is 2,000MHz or 2GHz.
●
For your safety and to avoid damage to this unit, please unplug the RF
coaxial cable from the antenna input jack before moving the unit.
●
If you did use an antenna to receive analog TV, it should also work for DTV
reception. Outdoor or attic antennas will be more effective than a set-top
box or inside antenna.
●
To turn on your reception source easily between antenna and cable, install
an antenna selector.
●
If you are not receiving a signal from your cable service, contact the cable
provider.
Plugging in the AC power cord
Make sure that the AC power cord must be plugged to an AC outlet
after all the necessary connections are made.
Caution(s)
●
Connect the analog audio signal cables from the external device to the
analog audio L/R input jacks.
●
If you have an amplifier, connect the HDMI cable to the HDMI input via your
amplifier.
Note(s)
●
Each time you plug in the AC power cord, no operations will be performed
for several seconds. This is not a malfunction.
13 .English
