MONITOR OUTPUT CONNECTIONS
9

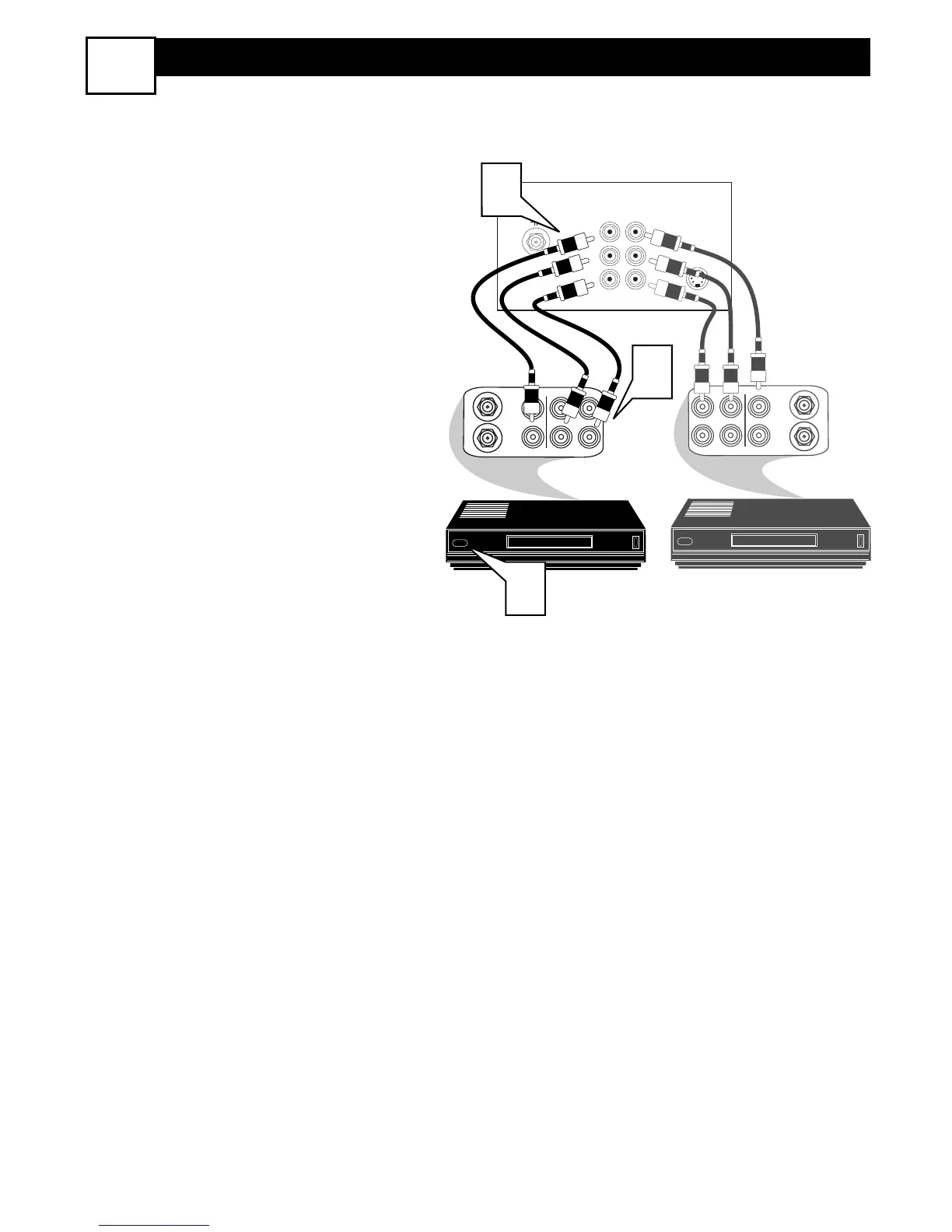

SECOND VCR CONNECTION:
NOTE: Refer to panel number 5 for the
proper hookup of the first VCR. Follow
the instructions on how to tune to the AV
1 channel to view a pre-recorded tape.
The following steps allow you to con-
nect a second VCR to record the pro-
gram while your watching it.
1
Connect one end of the yellow
Video Cable to the Monitor Out
VIDEO plug. Connect the other end
to the VIDEO IN plug on the second
VCR.
2
Connect one end of the red and
white Audio cable from the Monitor
Out AUDIO L and R plugs on the
TV to the AUDIO IN plugs on the
VCR.
3
Turn the Second VCR ON, insert
a black VHS tape and it’s ready to
record what’s being viewed on the
TV screen.
75 ⍀
VIDEO
L
AUDIO
R
Monitor
out
AV1
in
S-VIDEO
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
IN
IN
OUTOUT
LR
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
IN
IN
OUT OUT
RL
1
2
3
Back of TV
Audio Cables
1st VCR
(refer to panel 3 for
proper connection)
Video
Cable
2nd VCR with Audio and
Video Input Jacks
SECOND VCR CONNECTION:
