4

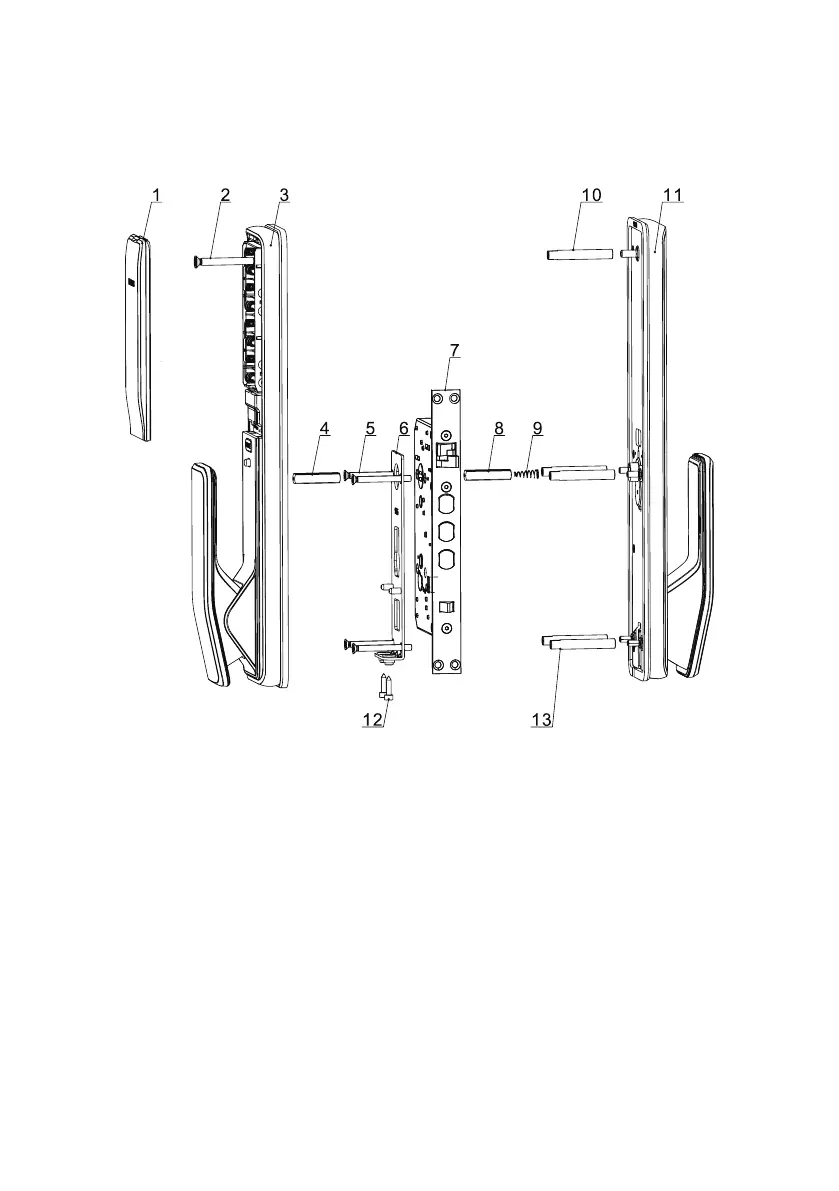

1. Battery cover (x1)
2. M6 chamfer
head screw (x1)
3. Inside escutcheon
component (x1)
4. Square shaft (x2)
5. M5 chamfer
head screw (x4)
6. Mounting plate (x1)
7. Mortise (x1)
8. 35mm square
shaft (x1)
9. Compressed Spring (x1)
10. M6 screw tube (x1)
11. Outer escutcheon
component (x1)
12. M4 hexagon screw(X2)
13. M5 screw tube (x4)
Exploded Views
