Step 3: Connecting TV
L
R
L
R
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
SCART IN
Connections
OR
OR
IMPORTANT!
–You only need to make
one video
connection from the following
options, depending on the
capabilities of your TV.
– Connect the DVD system directly
to the TV.
– Scart (RGB) Video provides better
picture quality than S-Video. These
options must be available on your
TV.
– If both S-Video and Scart video
are used to connect to your TV, the
TV signal will detect automatically
to SCART when you power up the
DVD system.

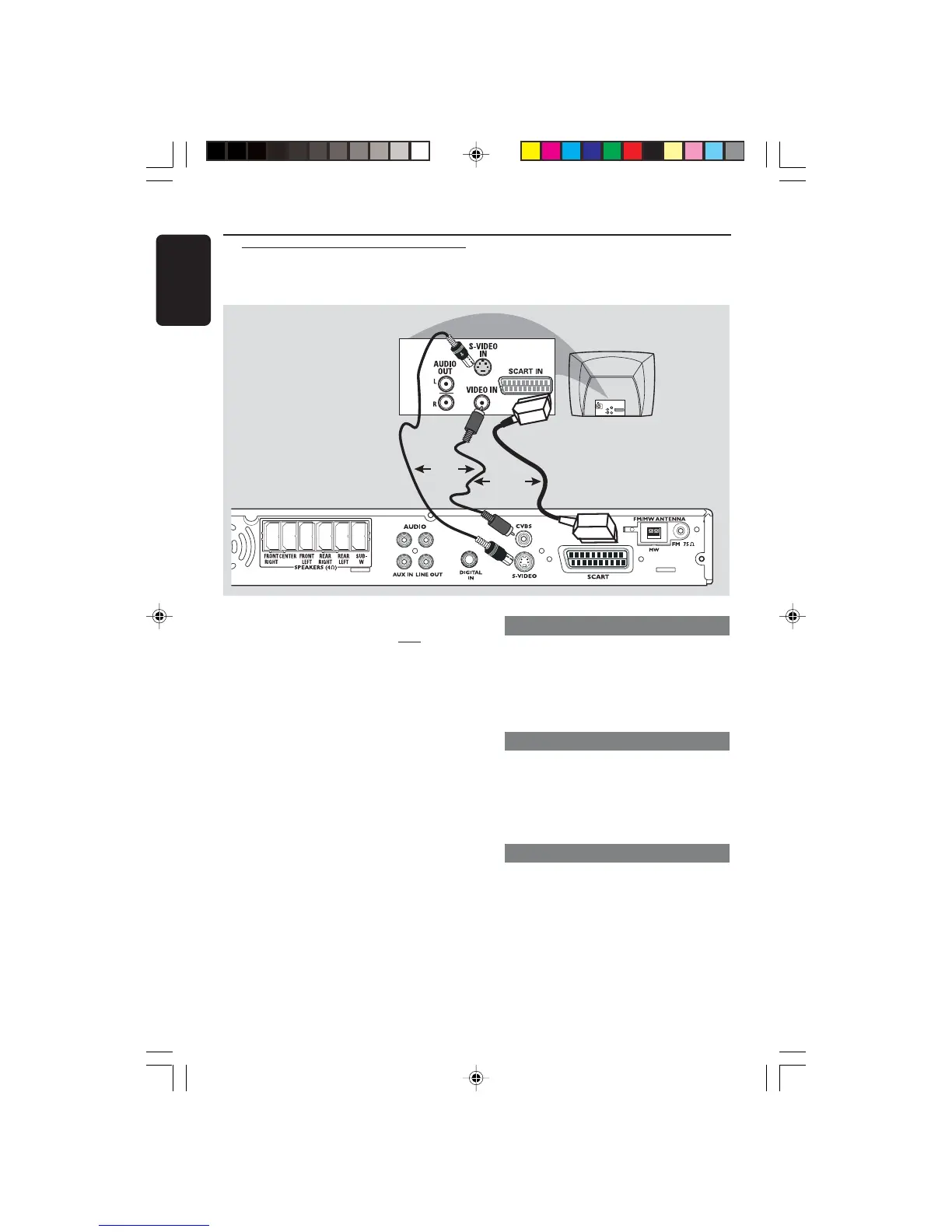

Using Scart jack
● Use the supplied scart video cable (black)
to connect the DVD system’s SCART
jack to the corresponding Scart input
jacks on the TV.
OR
Using S-Video jack
● Use an S-video cable (not supplied) to
connect the DVD system’s S-VIDEO
OUT jack to the S-Video input jack (or
labelled as Y/C or S-VHS) on the TV.
OR
Using Composite Video jack (CVBS)
● Use a composite video cable (yellow -
not supplied) to connect the DVD
system’s CVBS jack to the video input
jack (or labelled as A/V In, Video In,
Composite or Baseband) on the TV.
001-041-LX39-22-Eng1 12/12/2003, 10:20 AM10

Philips LX3900SA Specifications

Amplifier

amplifier power	5 x 45 watts RMS + 75 watts RMS
total power	300 watts

Loudspeaker Specifications

frequency range	120Hz - 20 kHz
impedance	4Ω
drivers	3" full-range woofer, 1" conical dome tweeter

Subwoofer Specifications

frequency range	30Hz - 120Hz
impedance	4Ω
drivers	6.5" high efficiency woofer

Power Supply

power requirement	220-230V, 50Hz
power consumption	approx. 80 W
standby power	<2W

Weight and Dimensions

dimensions of DVD system	360mm x 55mm x 325mm
dimensions of surround speaker	92mm x 170mm x 64mm
dimensions of center speaker	245mm x 92mm x 68mm
dimensions of subwoofer	154mm x 361mm x 350mm
dimensions of pack/carton	399mm x 412mm x 460mm
weight of pack/carton	20 kg
