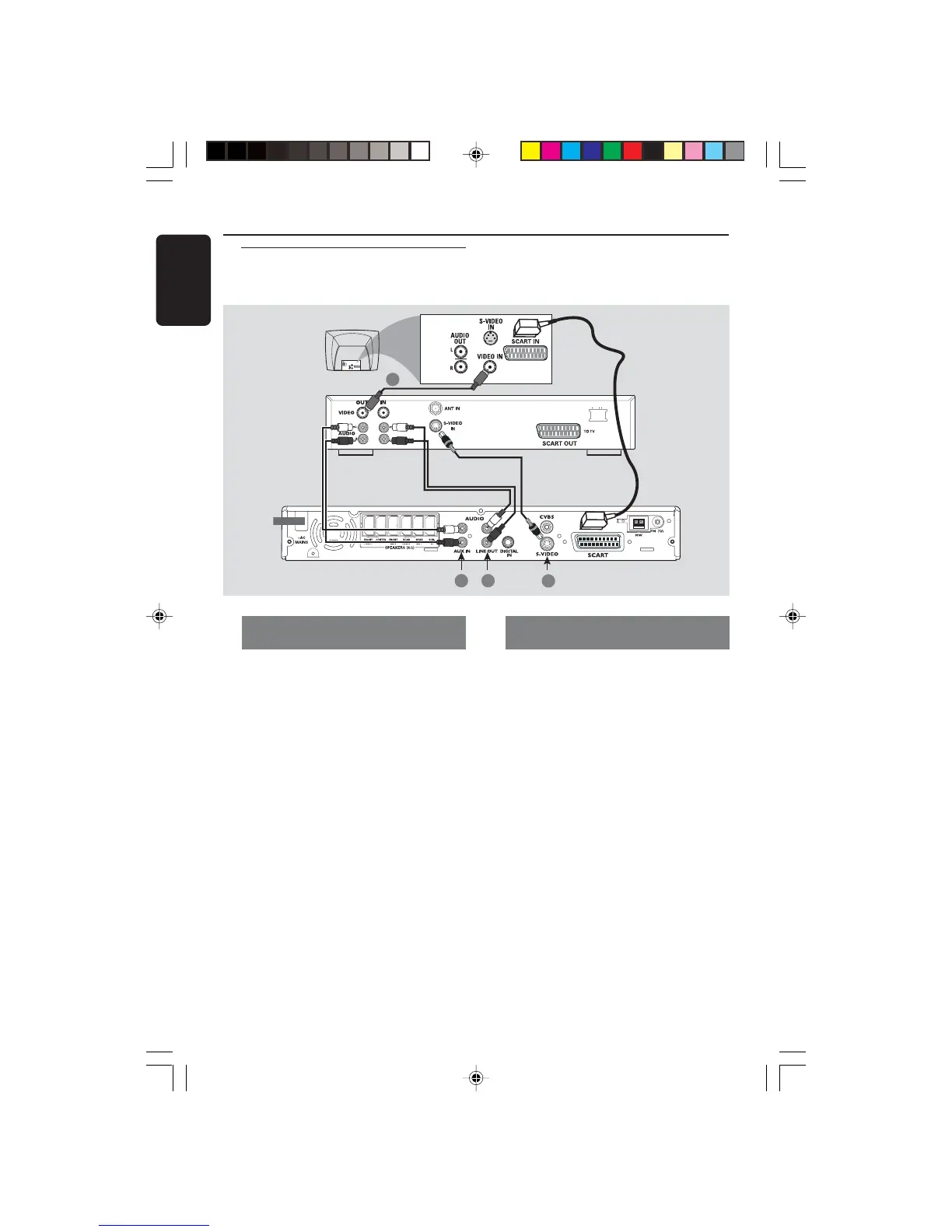

Connections (Optional)
Connecting a VCR or
Cable/Satellite Box
L
R
L
R
FM/MW ANTENNA
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
SCART IN
2
4
1
~ AC MAINS
3
VCR or Cable/
Satellite Box
Viewing and listening to the
playback
1 Connect the VCR or Cable/Satellite Box
to the TV as shown.
2 Connect the DVD system’s AUX IN
(R/L) jacks to the AUDIO OUT jacks on
the VCR or cable/satellite box.
Before starting operation, press AUX/DI
on the remote to select “AUX” in order
to activate the input source.
Using the VCR for recording DVD
playback
Some DVDs are copy-protected. You
cannot record or dub protected discs
using a VCR.
3 Connect the DVD system’s S-VIDEO
jack to the S-VIDEO IN jack on the VCR.
4 Connect the DVD system’s LINE OUT
(R/L) jacks to the AUDIO IN jacks on
the VCR.
This will allow you to make analogue
stereo (two channel, right and left)
recordings.
To view DVD playback while
recording,
you must connect the DVD system to
your TV using SCART (as shown above)
connection.
001-041-LX39-22-Eng1 12/12/2003, 10:20 AM12

Philips LX3900SA Specifications

Amplifier

amplifier power	5 x 45 watts RMS + 75 watts RMS
total power	300 watts

Loudspeaker Specifications

frequency range	120Hz - 20 kHz
impedance	4Ω
drivers	3" full-range woofer, 1" conical dome tweeter

Subwoofer Specifications

frequency range	30Hz - 120Hz
impedance	4Ω
drivers	6.5" high efficiency woofer

Power Supply

power requirement	220-230V, 50Hz
power consumption	approx. 80 W
standby power	<2W

Weight and Dimensions

dimensions of DVD system	360mm x 55mm x 325mm
dimensions of surround speaker	92mm x 170mm x 64mm
dimensions of center speaker	245mm x 92mm x 68mm
dimensions of subwoofer	154mm x 361mm x 350mm
dimensions of pack/carton	399mm x 412mm x 460mm
weight of pack/carton	20 kg
