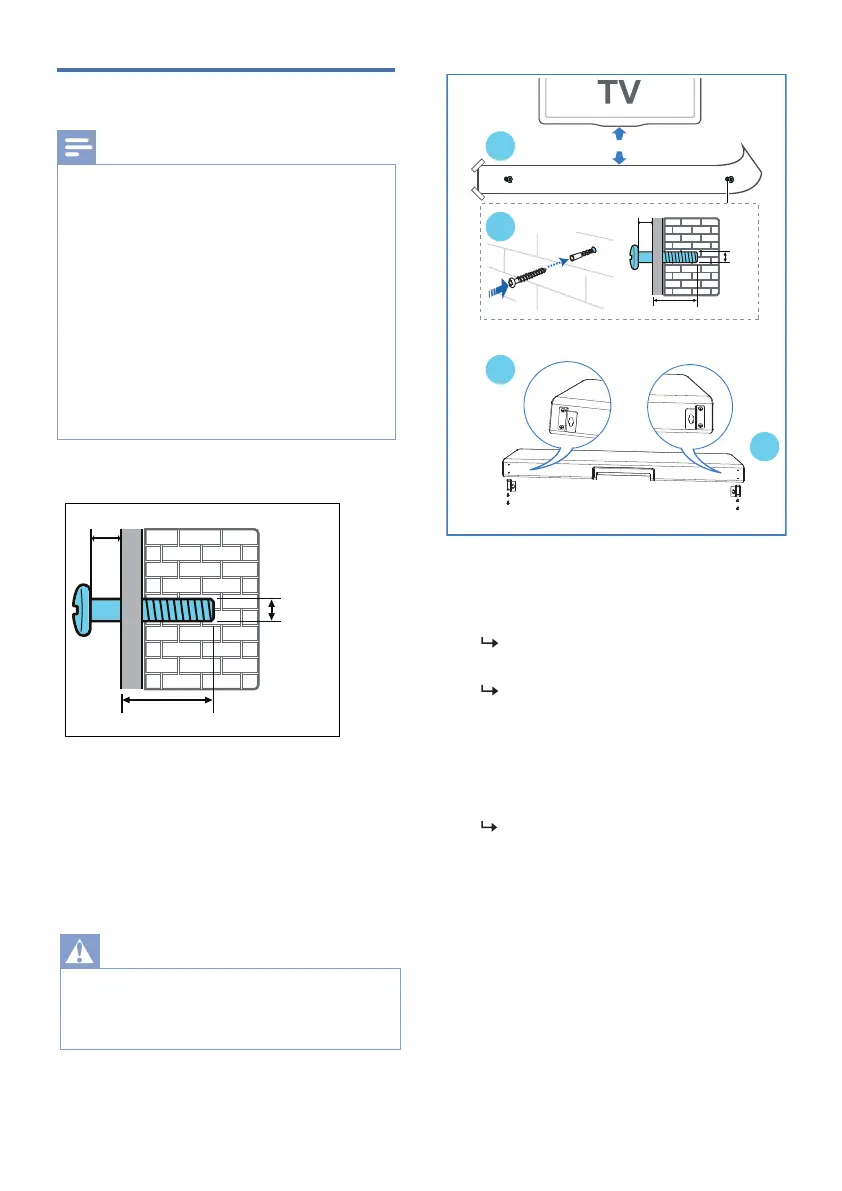

Wall mount
Note
3
4
1
~50mm/2.0"
731mm / 28.78”
2
1.8-2.3mm/0.07-0.09”
4mm/
0.16"
>33mm/1.3"
4mm/
0.16"
1.8-2.3mm/0.07-0.09”
• Improper wall mounting may result in accident,
injury or damage. If you have any query, contact
Consumer Care in your country.
• Before wall mounting, make sure the wall can
support the weight of your soundbar.
• Before wall mounting, you need not remove the
rubber feet at the bottom of the soundbar,
• Depending on the type of wall mounting, make
sure that you use screws of a suitable length and
diameter.
• Please check whether the USB port on the back of
the soundbar is connected to a USB device. If it is
wall-mount, you need to use another USB device
of the appropriate size.
Screw length/diameter
Suggested wall mounting height
You are recommended to install the TV
With a TV preinstalled, wall mount the
soundbar 50mm/2.0’’ in distance from
the bottom of the TV.
1 Drill 2 parallel holes (diameter 3-8mm
each according to wall type) on the
wall.
2 Secure the dowels and screws in the
holes.
3 Attach the wall brackets (x2) into the
back of the unit.
4 Hang the soundbar on the fastening
screws.
• To prevent injury, this apparatus must be securely
installation instructions.
WARNING !
The distance between the holes
are: 731mm / 28.78”
You can use the wall mount
template provided for helping the
drilling holes position on the wall.
Be sure to leave a 1.8-2.3mm gap
between the wall and the screw’s
head.
