Removal
- Remove the rear handlebar cover.
- Remove the pin mounting the handlebar to the
steering tube.
- Remove the handlebar and place it on the rear
cover of the front shield.
See also
Rear handlebar cover
Refitting

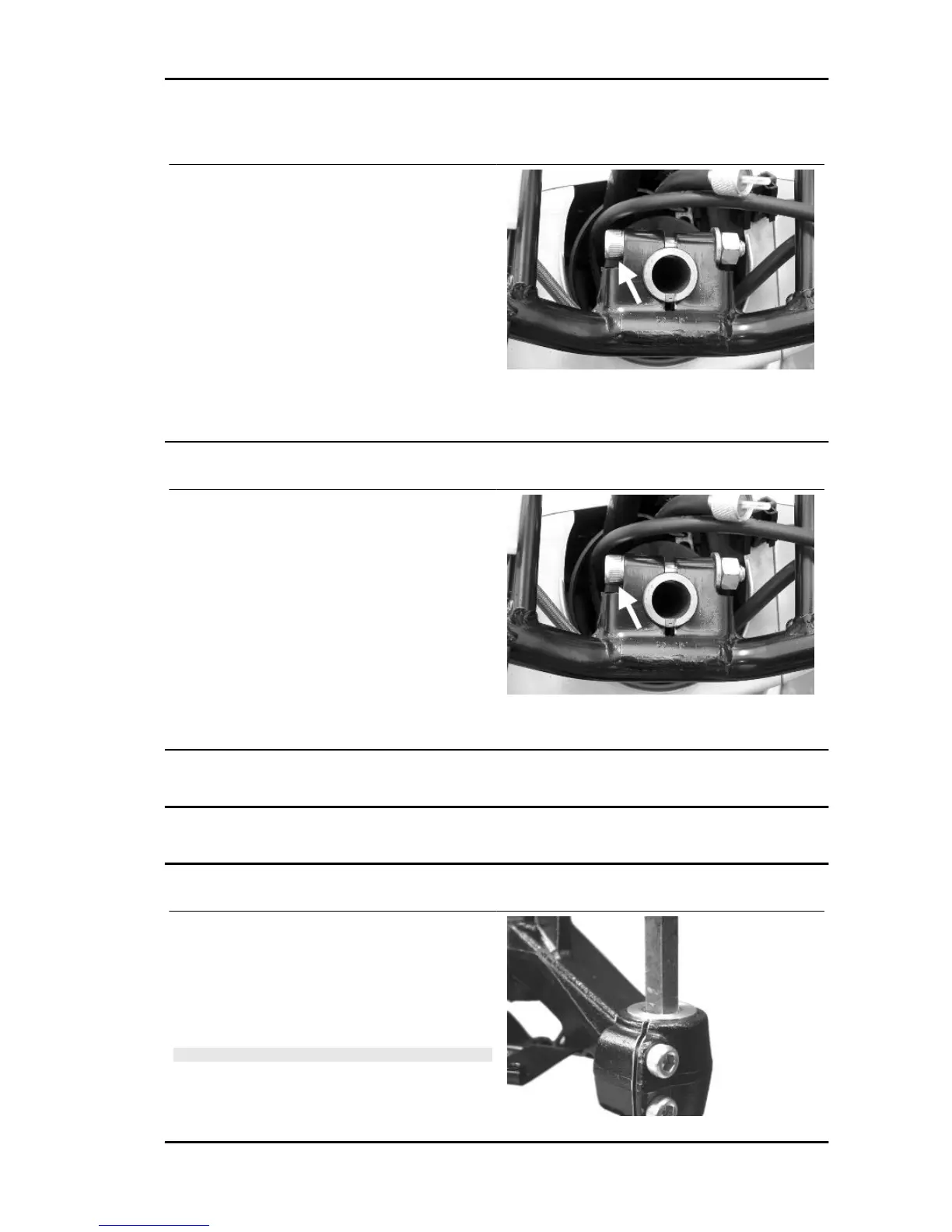

- Install the handlebars on the steering tube, pay-
ing attention to the centring, aligning the recess on
the handlebar with that on the steering tube as
shown in the figure.
- Tighten the handlebar fixing screw on the steer-
ing tube to the prescribed torque.
Locking torques (N*m)
Handlebar fixing screw (*) 45 ÷ 50
(*) Lubricate the nuts with engine oil before installation
Front fork
Removal
Overhaul
- Support the fork in a vice.
- Loosen the two tightening screws of the stem
supporting clamp.
- Unscrew the stem closing cap and slide off the
complete fork leg from the corresponding support.
CAUTION
THE STEM CLOSING CAP KEEPS THE MAIN SPRING PRE-
LOADED. KEEP THE CAP PROPERLY FITTED DURING
THE REMOVAL FINAL STAGE TO AVOID ACCIDENTS.
Beverly Tourer 250 i.e. Suspensions
SUSP - 203
