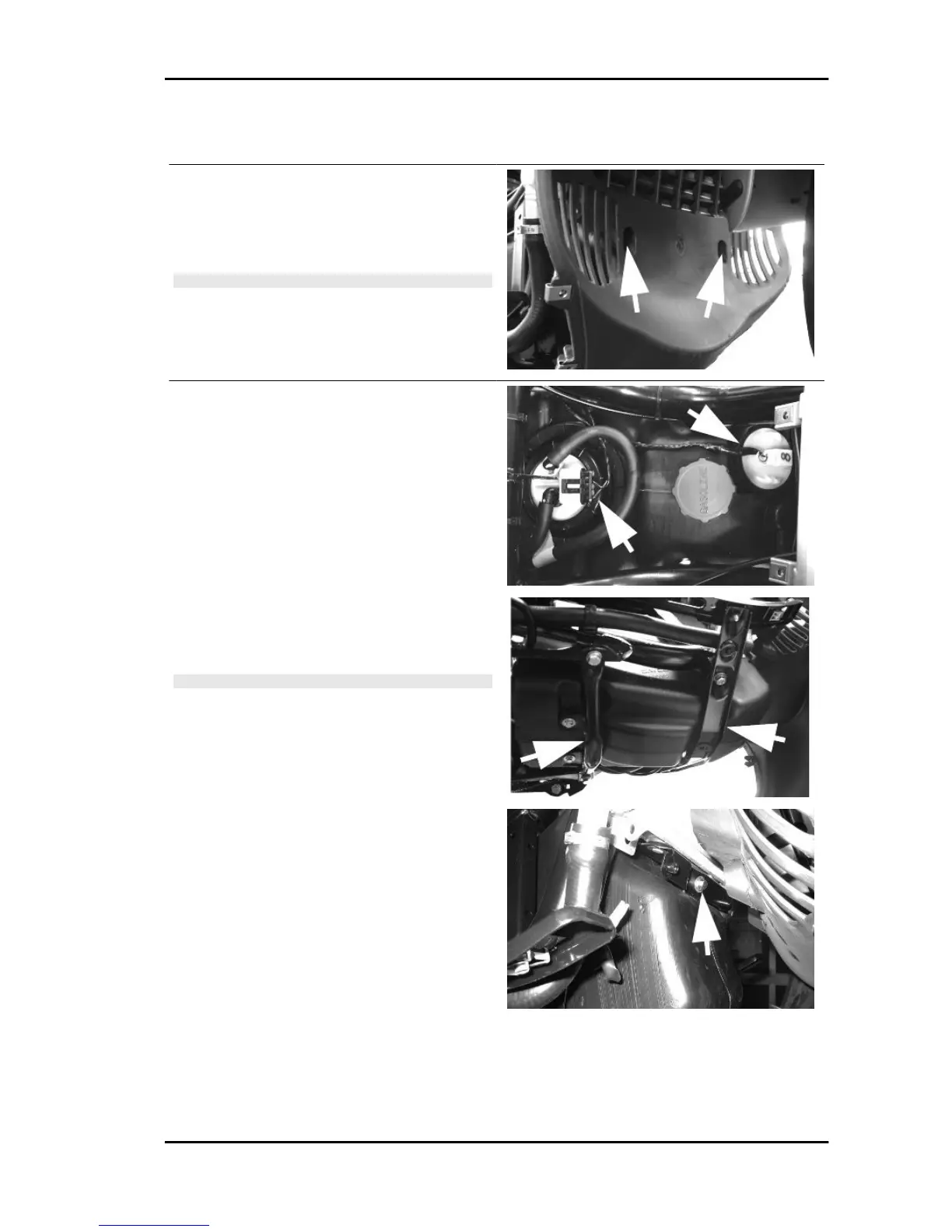

Fuel tank
- Remove the shield back plate.
- Remove the two lower screws of the front wheel
housing.
- Remove the footrest.
N.B.
THIS OPERATION SHOULD PREFERABLY BE PER-
FORMED WITH THE TANK EMPTY.
- Separate the electrical connections of the fuel
gauge and disconnect the fuel supply line and tank
breather;
- Remove the toggle handles by loosening the 4
retaining screws;
- Remove the support bracket by loosening the 2
retaining screws of the bracket at the frame;
- Remove the three tank retaining screws at the
frame;
- Remove the tank by tilting it downwards and pull-
ing out from below.
N.B.
BE VERY CAREFUL WHEN PULLING OUT THE CARBU-
RETTOR PIPING SINCE AN EXCESSIVE FORCE MAY DAM-
AGE THE PLASTIC INSERTS ON THE PUMP BODY. UPON
REASSEMBLY, IT IS THEREFORE NECESSARY TO
SLIGHTLY PRESS THE PIPING AND THE RETAIN RIM TO-
WARDS THE PUMP, THEN KEEP THE RIM PRESSED AND
PULL THE COUPLING UPWARDS.
Beverly Tourer 250 i.e. Chassis
CHAS - 257
