Front light group (03_21, 03_22, 03_23, 03_24, 03_25, 03_26,
03_27)
To access the headlight bulbs, remove the front of the handlebar cover, as follows:
1) Remove the rear-view mirrors; for this operation follow the instructions described
and illustrated in the «Rear-view mirrors» section.

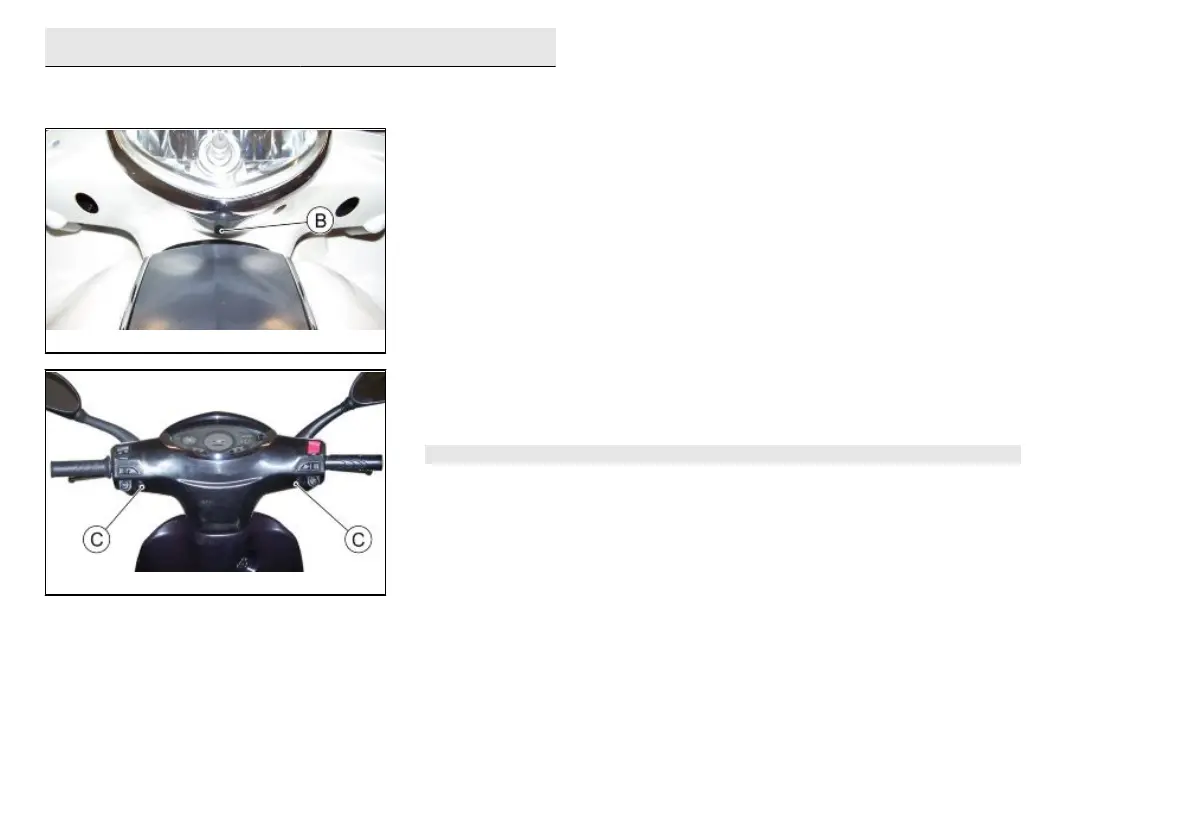

2) Unscrew the 3 screws holding the handlebar cover. The front central one «B» and
the rear 2 «C».
3) Remove the crankcase cover «D» and undo the two screws « E».
4) Remove the connector «F».
5) Remove the handlebar cover to reach the headlight and the bulbs.
Once this is done, the handlebar cover can be removed.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS
DOES NOT INDICATE A FAULT AND IS ATTRIBUTABLE TO HUMIDITY AND/OR
TO LOW TEMPERATURES.
THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS
SWITCHED ON.
THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI-
CATE THAT WATER IS INFILTRATING. CONTACT THE AFTER-SALES SERVICE
NETWORK.
