Please take note that, starting from chassis serial number ZAPM3840000005931, a washer drawing
709047 has been added in order to guarantee the rear mudguard correct fixing

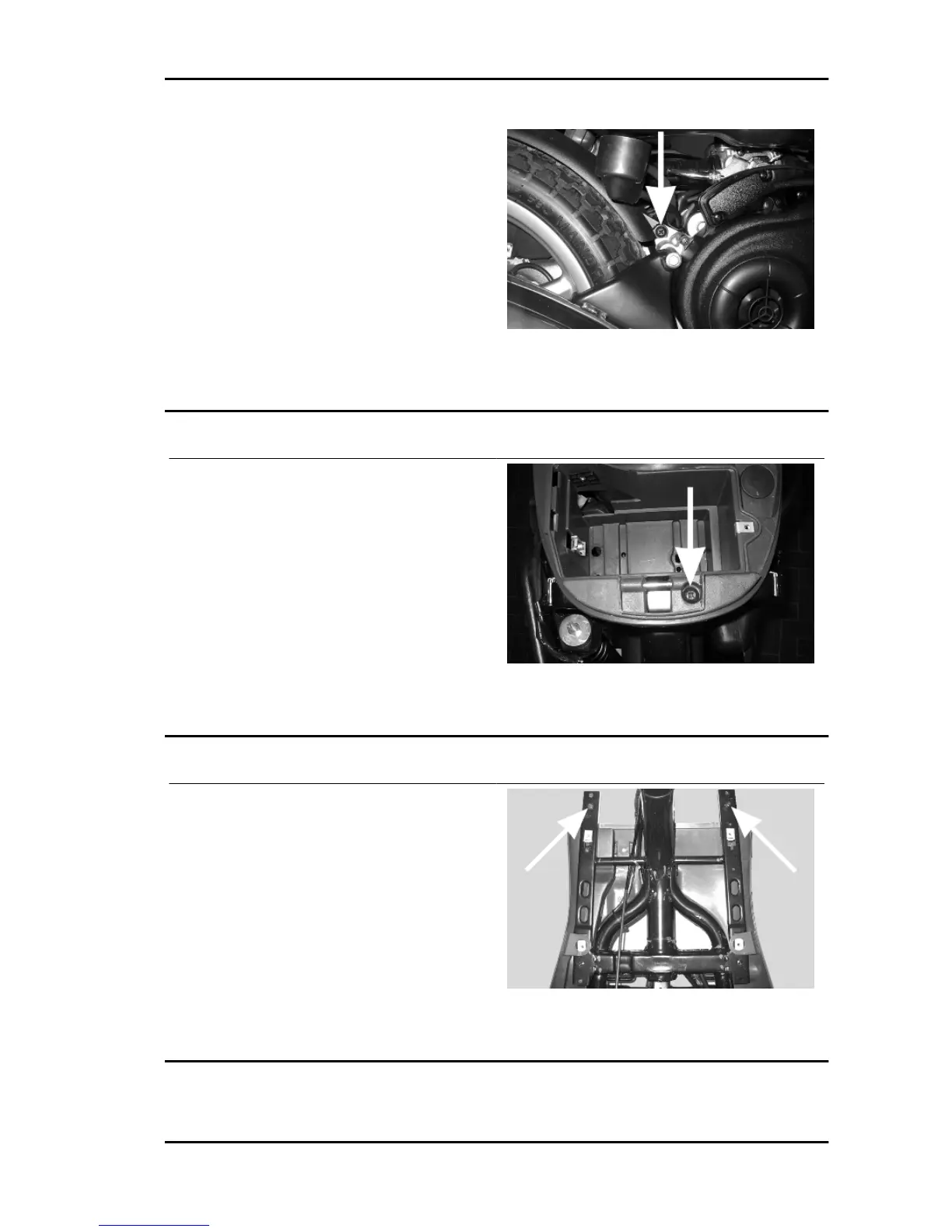

Helmet bay
• Remove the helmet compartment central cover.
• Remove the battery and the fuse box.
• Remove the fuel tank cap and the start-up remote
control switch.
• Unscrew the rear fixing screw and lift the helmet
compartment.
See also
Frame central cover
spoiler
• Remove the footrest.
• Undo the 2 front retainers and then remove the
spoiler from the bottom.
See also
Footrest
Liberty 50 Catalyzed Chassis
CHAS - 115
