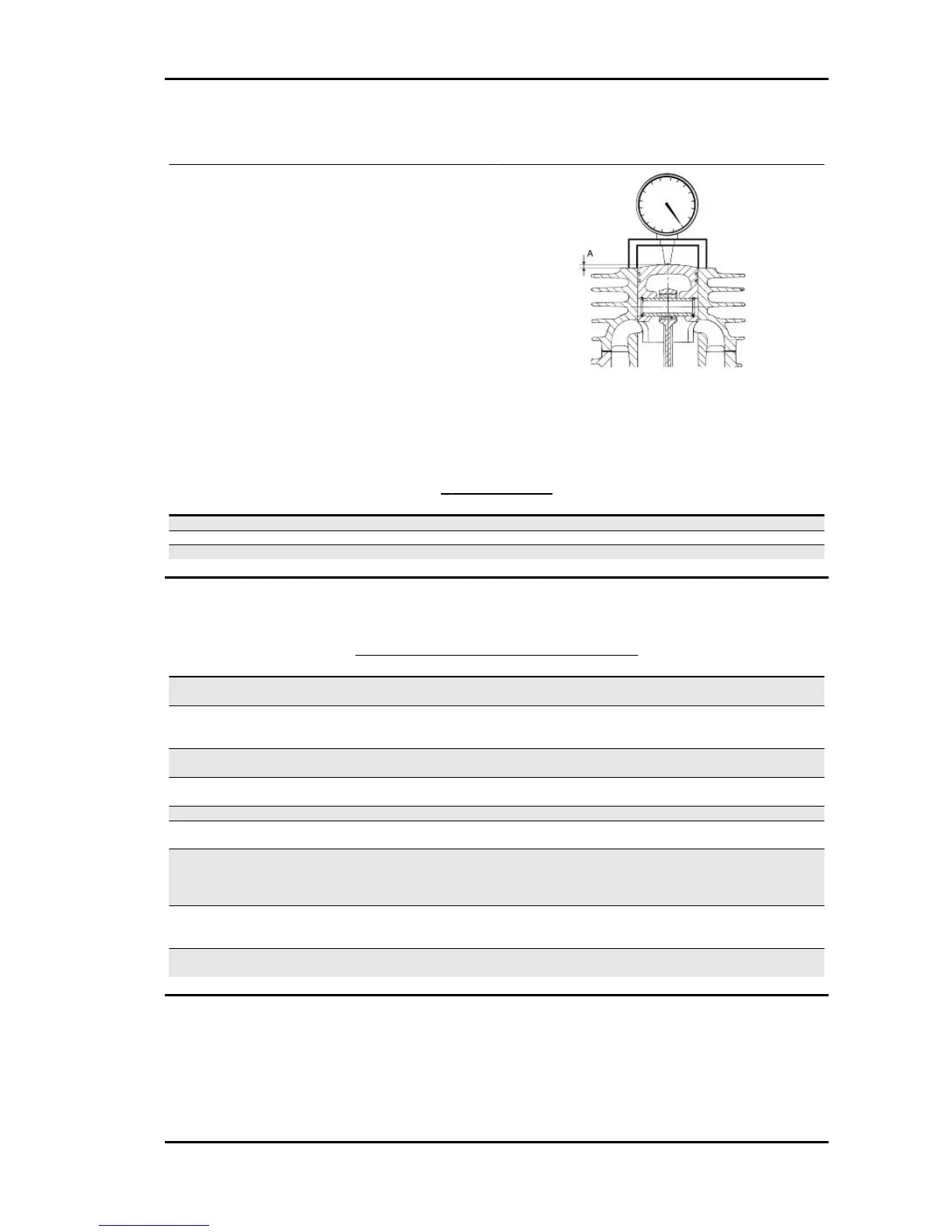

Slot packing system
- Fit the cylinder without installing the basic gasket.
- Apply a centimetre dial gauge on the special tool
and zero it on the ground plane
- Fit the tool to the top of the cylinder fixing it with
two nuts to the studbolts and take the piston to the
T.D.C.
- The thickness of the gasket to fit will change de-
pending on the value detected. For this purpose,
there are three with different thicknesses
Specific tooling
020272Y Piston position check tool
SHIMMING SYSTEM
Name Measure A Thickness
Shimming 2.80 ÷ 3.04 0,4
Shimming 3.04 ÷ 3.24 0,6
Shimming 3.25 ÷ 3.48 0,8
Products
RECOMMENDED PRODUCTS TABLE
Product
Description Specifications
AGIP ROTRA 80W-90 Rear hub oil SAE 80W/90 Oil that exceeds the re-
quirements of API GL3 specifications
AGIP CITY HI TEC 4T Oil to lubricate flexible transmissions
(brake, throttle control and mixer, odom-
eter)
Oil for 2-stroke engines: SAE 5W-40, API
SL, ACEA A3, JASO MA
AGIP FILTER OIL Oil for air filter sponge Mineral oil with specific additives for in-
creased adhesiveness
AGIP CITY TEC 2T Mixer oil synthetic oil for 2-stroke engines: JASO
FC, ISO-L-EGD
AGIP BRAKE 4 Brake fluid FMVSS DOT 4 Synthetic fluid
MONTBLANC MOLYBDENUM
GREASE
Grease for driven pulley shaft adjusting
ring and movable driven pulley housing
Grease with molybdenum disulphide
AGIP GREASE PV2 Grease for steering bearings, pin seats
and swinging arm
White anhydrous-calcium based grease
to protect roller bearings; temperature
range between -20 C and +120 C; with
NLGI 2; ISO-L-XBCIB2.
AGIP GREASE SM 2 Grease for odometer transmission gear
case
Lithium grease with NLGI 2 molybdenum
disulphide; ISO-L-XBCHB2, DIN
KF2K-20
AGIP GP 330 Grease for brake levers, throttle, stand White calcium complex soap-based
spray grease with NLGI 2; ISO-L-XBCIB2
Liberty 50 Catalyzed Characteristics
CHAR - 13
