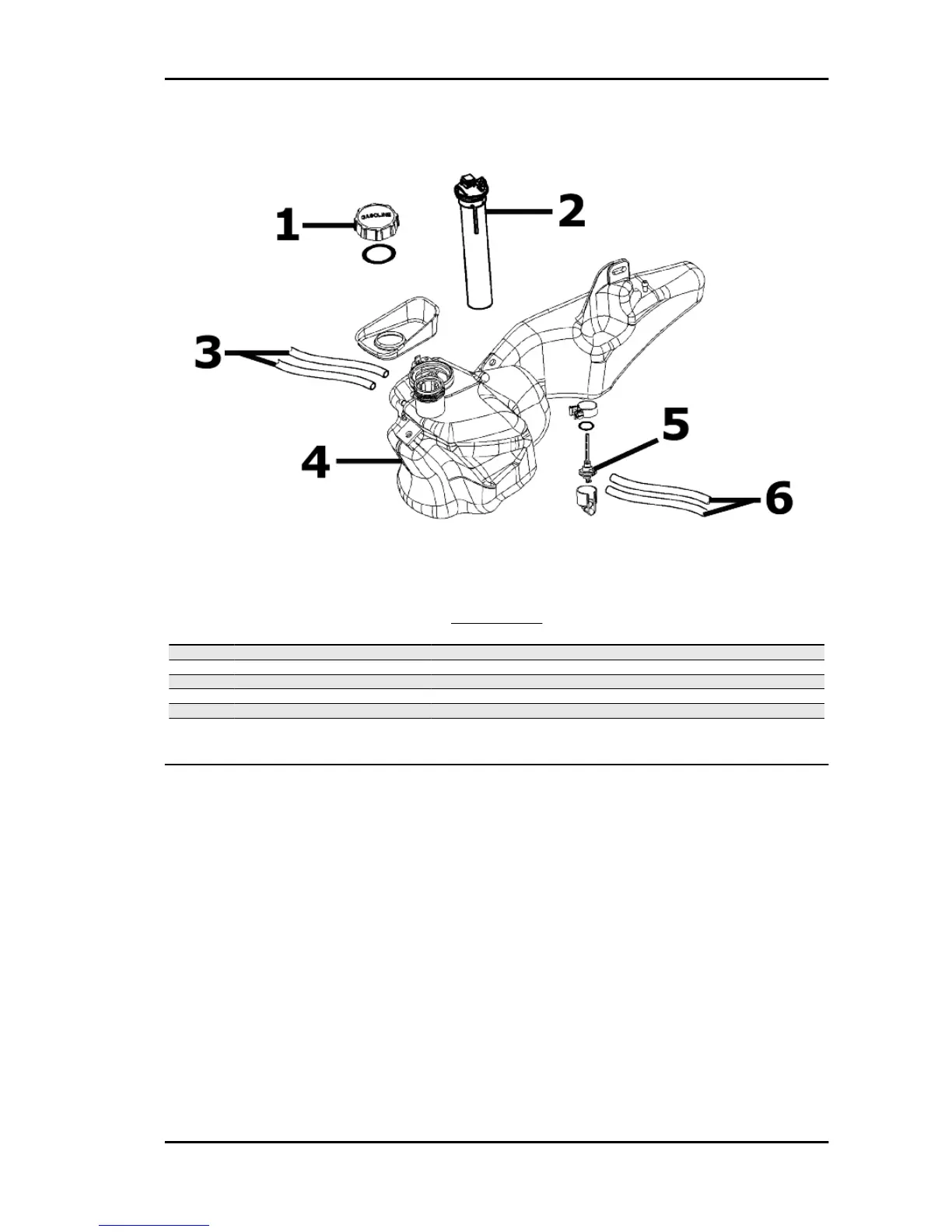

Fuel tank
FUEL TANK
Code
Action
Duration
1
004168
Fuel tank cap - Replacement
2
005010
Fuel tank float - Replacement
3
004109
Fuel tank breather - Replacement
4
004005
Fuel tank - Replacement
5
004007
Mixture cock - Replacement
6
004112
Cock / carburettor hose - Replace-
ment
Liberty 50 Catalyzed
Time
TIME - 141
140
142
Table of Contents
Workshop Manual
2
Index of Topics
5
Safety Rules
7
Maintenance Rules
7
Vehicle Identification
8
Frame and Suspension
9
Wheels and Tyres
10
Secondary Air
10
Piston Rings
12
Sealing Ring
12
Maintenance
22
Maintenance Chart
23
Every 2 Years
23
Checking the Spark Advance
26
Spark Plug
26
Air Filter
28
Checking the Ignition Timing
29
Braking System
29
Level Check
30
Headlight Adjustment
31
Troubleshooting
33
Poor Performance
34
Rear Wheel Spins at Idle
34
High Fuel Consumption
36
Clutch Brakes
36
Brakes Overheating
37
Noisy Suspension
38
Electrical System
39
Turn Signal Lights
46
Checks and Inspections
46
Ignition Circuit
48
Stator Check
48
Instrument Panel
55
Index of Topics
56
Automatic Transmission
60
Removing the Driven Pulley Shaft Bearing
61
Removing the Driven Pulley
62
Inspecting the Clutch Drum
62
Removing the Clutch
62
Refitting the Driven Pulley
67
Removing the Driving Pulley
68
Flywheel Cover
75
Cooling Fan
75
Removing the Stator
76
Removing the Starter Motor
76
Removing the Intake Manifold
78
Removing the Cylinder Head
78
Inspecting the Small End
79
Inspecting the Piston
80
Removing the Piston
81
Crankcase - Crankshaft
83
Removing the Crankshaft
84
Crankshaft Oil Seals
87
Fuel Supply
89
Index of Topics
91
Front Wheel Hub Overhaul
92
Front Fork
93
Steering Column
93
Steering Bearing
93
Removing the Rear Wheel
95
Refitting the Rear Wheel
95
Shock Absorbers
95
Centre-Stand
96
Rear Brake Calliper
98
Front Brake Disc
100
Disc Inspection
101
Front Brake Pads
101
Recommended Products
102
Rear Rack
107
Rear Mudguard
114
Front Mudguard
116
Index of Topics
118
Static Test
121
Functional Inspection
121
Cylinder Assy
126
Cylinder Head Assy
127
Driven Pulley
128
Oil Pump
129
Driving Pulley
130
Transmission Cover
131
Flywheel Magneto
132
Exhaust Pipe
134
Air Cleaner
135
Rear Cover
138
Underseat Compartment
140
Helmet Compartment
140
Oil Reservoir
142
Rear Shock Absorber
143
Handlebar Covers
145
Swinging Arm
147
Turn Signal Lights
149
Front Wheel
151
Electric Starter
153
Electric Devices
154
Electrical Devices
154
Brake Callipers
158
Front Brake Caliper
159
Rear Mudguard
160
Rear Wheel Axle
162
4
