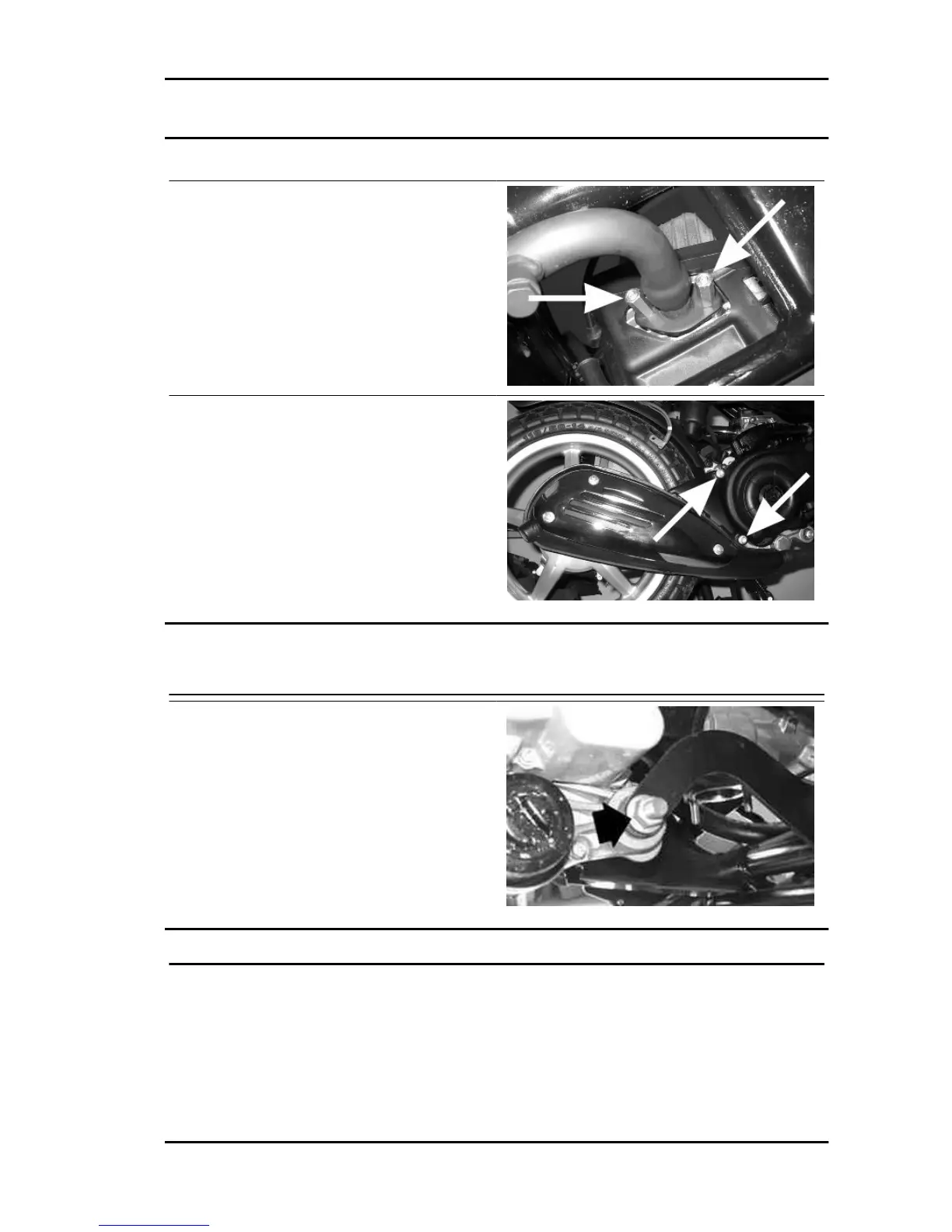

Exhaust assy. Removal
- Remove the 2 fixing nuts from the manifold to the
head
- Undo the 2 screws fixing the silencer to the hous-
ing; then remove the whole muffler paying atten-
tion to the interference between its supporting
bracket and the cooling cover.
Removal of the engine from the vehicle
Removing the engine/connecting arm pivot pin
Remove the nut shown in the figure and then with-
draw the pin.
Disassembling engine from frame
-Disconnect the battery.
-Remove the muffler assembly.
- Remove the rear wheel.
- Remove the mechanical transmission of the rear brake.
-Disconnect the electric terminals.
- Remove the throttle grip and mixer transmissions.
Liberty 50 Catalyzed Engine from vehicle
ENG VE - 57
