- Lubricate race and balls with Z2 grease.
- Tighten to the specified torque and then rotate
the tool through 80° - 90° in an anticlockwise di-
rection.
Steering collar
Steering lock ring nut
Removal
Lower and upper races from frame

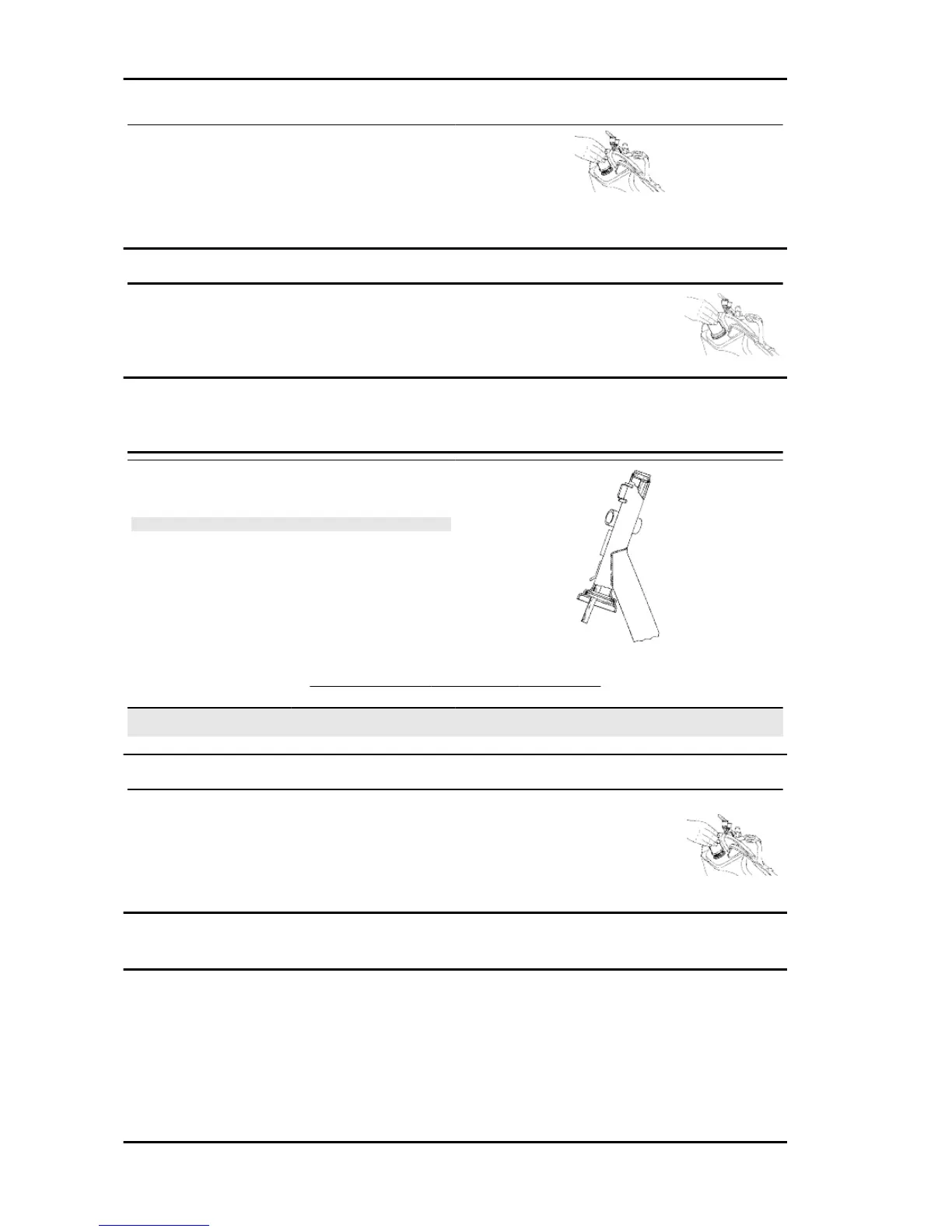

To remove the bearing seats from the chassis, use
the appropriate tool as shown in the figure.
N.B.
To remove the lower seating of the lower bearing just use a
screwdriver as a lever between the seating and the shell.
LOWER AND UPPER SEATING FROM THE CHASSIS
Titolo
Durata/Valore Testo Breve (< 4000 car.) Indirizzo Immagine
Lower and upper seating from
the chassis
Upper bearing washer and race
After removing the upper seating, tilt the vehicle to
a side and take out the steering tube making sure
mudflaps have been removed and the calliper dis-
connected.
Rear
Suspensions Liberty 50 Catalyzed
SUSP - 94
