03_29

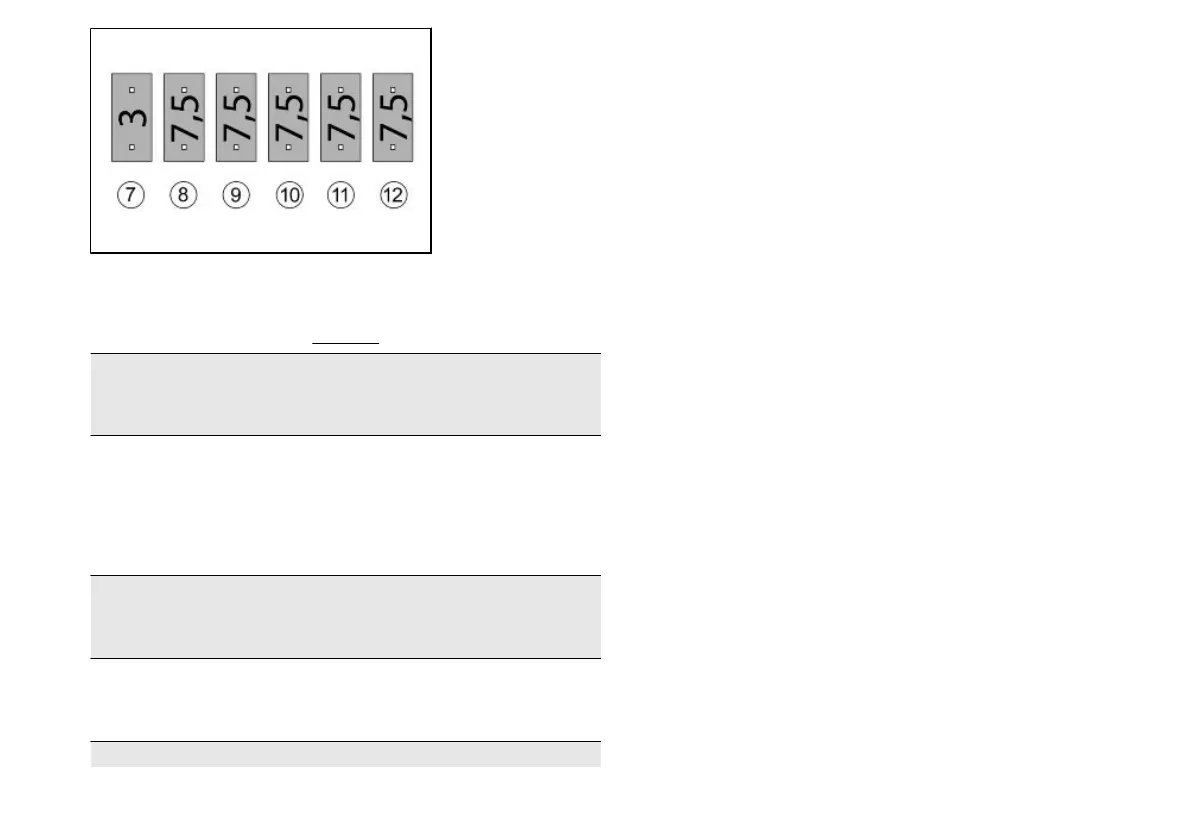

FUSES
Fuse No. 1 Capacity: 30 A
Protected circuits: Battery
recharge circuit.
Fuse No. 2 Capacity: 15A
Protected circuits: headlight
remote control live power supply,
fuses No. 7-8-9-10-11, fuel port
actuator. Battery-powered
immobilizer LED.
Fuse No. 3 Capacity:15A
Protected circuits: Light switch
(via remote control)
Fuse No. 4 Capacity: 15A
Protected circuits:Electric fan
(via remote control)
Fuse No. 5 Capacity: 15A
