Pioneer A-509R Service Manual

26
A-509R
Î
STEREO AMPLIFIER A-509R Direct Energy MOS
STANDBY/ON
STANDBY
OFF ON
POWER
A SPEAKERS B BASS TREBLE
PHONES
LOUDNESS
MIN MAX
VOLUME
DIRECT/
SB MODE
BALANCE INPUT SELECTOR REC SELECTOR
CD TUNER PHONO
TAPE 1/
CD-R/MD
LINE/
SB
TAPE 2
MONITOR
CD TUNER
OFF SOURCE
L R

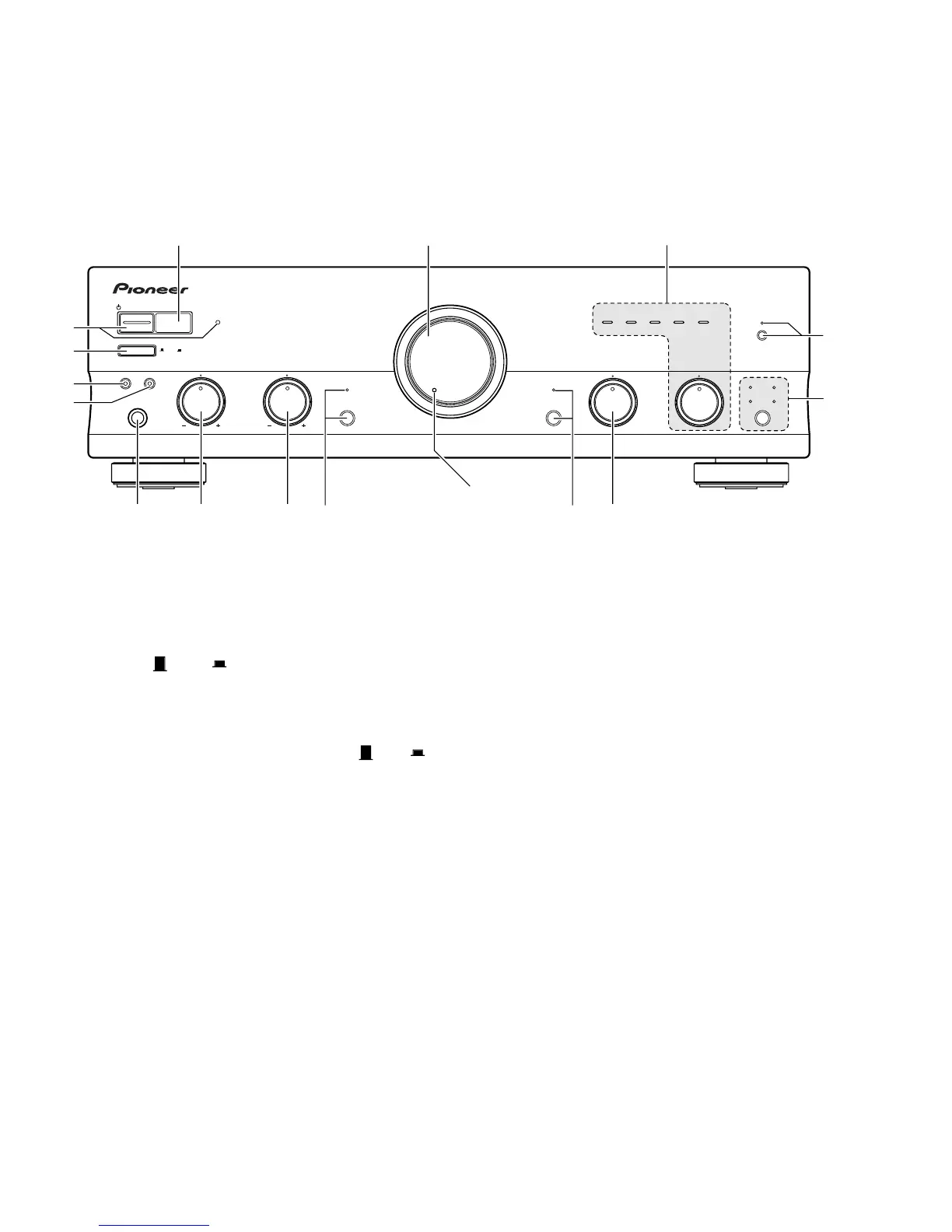

8.1 FRONT PANEL
1 POWER ( OFF/ ON) switch
Press to turn power to the unit ON and OFF.
2 STANDBY/ON switch/indicator
This is the switch for electric power.
This switch does not function unless the POWER OFF/
ON switch is set to ON.
ON : When set to the ON position, power is supplied
and the unit becomes operational.
STANDBY : When set to the STANDBY position, the main
power flow is cut and the unit is no longer fully
operational. A minute flow of power feeds the unit
to maintain operation readiness.
When the STANDBY indicator lights, the unit is in
STANDBY.
NOTE:
When performing timer recording with this unit, be sure to set
the POWER STANDBY/ON switch to ON.
3 Remote control sensor window
4 VOLUME control
Use to adjust the volume level.
NOTE:
The TONE effect functions regardless of volume levels.
1
2
3
45
6
7
890-=
!
~
@
VOLUME indicator
8. PANEL FACILITIES AND SPECIFICATIONS
5 INPUT SELECTOR knob/indicators
Turn the knob clockwise or counterclockwise so that the indica-
tor lights for your desired input source. Turning the knob clock-
wise causes the lit indicator to right. Turning counterclockwise
causes it to left.
CD : For compact disc playback with a CD player.
TUNER : For AM or FM broadcast reception with a tuner.
PHONO : For record playback with a turntable.
LINE/SB : Set to this position when listening to a program
from a component connected to the LINE/SUR-
ROUND BACK terminals.
TAPE 1/ : For playback with a cassette deck, CD recorder
or MD recorder connected to the TAPE 1/CD-R/
MD terminals.
6 TAPE 2 MONITOR button/indicator
Use when there is an adaptor component (graphic equalizer,
etc.) or cassette deck connected to the TAPE 2 MONITOR ter-
minals.
Off : Indicator goes out when not in use.
On : Indicator lights when using the adaptor component or
listening to the cassette deck.
NOTE:
When no connections are made to the TAPE 2 MONITOR termi-
nals, or when they are not in use, be sure to set this switch to the
off position. (No sound will be heard if it is set to the on position.)
CD-R/MD

Pioneer A-509R Specifications

Amplifier Section

continuous power output (20 Hz to 20 kHz, 8 Ω)	45 W + 45 W
continuous power output (20 Hz to 20 kHz, 4 Ω)	65 W + 65 W
DIN continuous power output (1 kHz, 8 Ω)	60 W + 60 W
DIN continuous power output (1 kHz, 4 Ω)	90 W + 90 W
total harmonic distortion (20 Hz to 20 kHz, 20 W, 8 Ω)	0.05 %
input sensitivity/impedance (PHONO MM)	2.8 mV/50 kΩ
input sensitivity/impedance (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	200 mV/50 kΩ
PHONO (MM) overload level (1 kHz, T.H.D. 0.1 %)	150 mV
output level/impedance (TAPE 1/CD-R/MD, TAPE 2 MONITOR)	200 mV/1 kΩ
frequency response (PHONO MM)	20 Hz to 20 kHz ± 0.5 dB
frequency response (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	5 Hz to 100 kHz +0-3 dB
tone control (BASS)	± 8 dB (100 Hz)
tone control (TREBLE)	± 8 dB (10 kHz)
loudness contour (volume control set at – 30 dB position)	+ 5 dB (100 Hz)/ + 3 dB (10 kHz)
signal-to-noise ratio (PHONO MM, 5 mV input)	86 dB
signal-to-noise ratio (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	106 dB
signal-to-noise ratio (DIN, continuous power/ 50 mW, PHONO MM)	71 dB/ 67 dB
signal-to-noise ratio (DIN, continuous power/ 50 mW, CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	95 dB/ 71 dB

Power Supply

power requirements	AC 220 - 230 V, 50/60 Hz
power consumption	160 W
power consumption in standby mode	1 W
AC outlet switched	100 W

Weight and Dimensions

dimensions (including knobs and other protruding parts)	420 (W) x 335 (D) x 128 (H) mm
weight (without package)	6.9 kg
