Pioneer A-509R Service Manual

28
A-509R
SIGNAL
GND
PHONO TUNER LINE/
SURROUND
BACK
TAPE1/CD-R/MD
TAPE2 MONITOR
CD
IN IN IN IN OUT IN OUT IN
REC PLAY REC PLAY
L
R
L
R
R
R
L
L
B
A
SPEAKERS
CONTROL
OUT
AC OUTLET
SWITCHED
100W MAX
AC INLET
0 SPEAKERS B terminals (Right channel)
- SPEAKERS B terminals (Left channel)
= AC INLET jack
Connect one end of the power cord to here and the other end to
an AC wall socket, or the AC outlet of an audio timer.
If you are going to be away from home for a long period of time,
disconnect the unit from the wall socket.
~ CONTROL OUT jack
This jack is for outputting control signals when operating other
components bearing the Î mark with the amplifier's remote con-
trol unit.
! SPEAKERS A terminals (Left channel)
@ SPEAKERS A terminals (Right channel)
# AC OUTLET
1 PHONO terminals
2 SIGNAL GND (Turntable ground) terminal
3 TUNER terminals
4 CD terminals
5 LINE/SURROUND BACK terminals
6 TAPE 1/CD-R/MD REC (OUT) terminals
7 TAPE 1/CD-R/MD PLAY (IN) terminals
8 TAPE 2 MONITOR REC (OUT) terminals
9 TAPE 2 MONITOR PLAY (IN) terminals

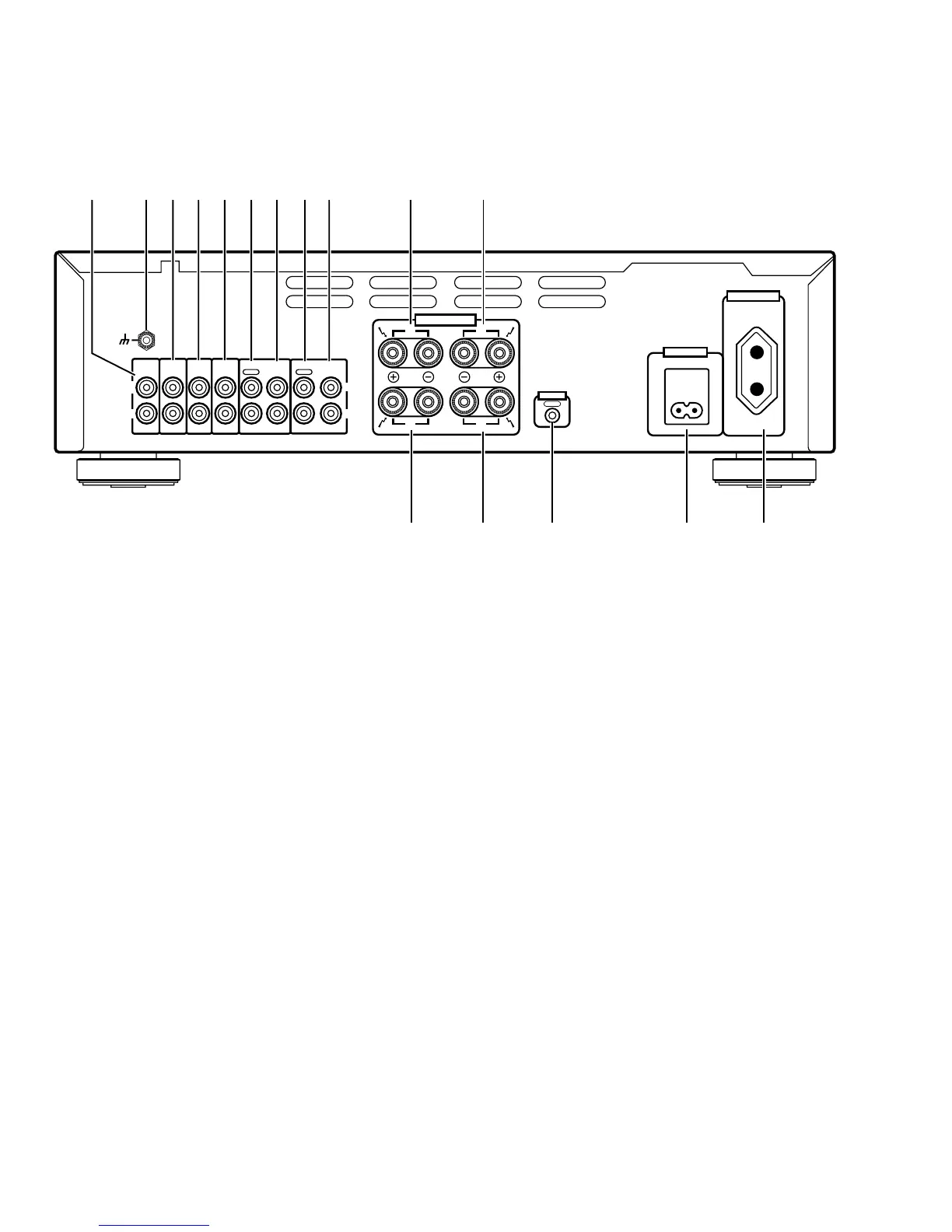

8.2 REAR PANEL
@
=
~
23456789 0 -
!
#
1

Pioneer A-509R Specifications

Amplifier Section

continuous power output (20 Hz to 20 kHz, 8 Ω)	45 W + 45 W
continuous power output (20 Hz to 20 kHz, 4 Ω)	65 W + 65 W
DIN continuous power output (1 kHz, 8 Ω)	60 W + 60 W
DIN continuous power output (1 kHz, 4 Ω)	90 W + 90 W
total harmonic distortion (20 Hz to 20 kHz, 20 W, 8 Ω)	0.05 %
input sensitivity/impedance (PHONO MM)	2.8 mV/50 kΩ
input sensitivity/impedance (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	200 mV/50 kΩ
PHONO (MM) overload level (1 kHz, T.H.D. 0.1 %)	150 mV
output level/impedance (TAPE 1/CD-R/MD, TAPE 2 MONITOR)	200 mV/1 kΩ
frequency response (PHONO MM)	20 Hz to 20 kHz ± 0.5 dB
frequency response (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	5 Hz to 100 kHz +0-3 dB
tone control (BASS)	± 8 dB (100 Hz)
tone control (TREBLE)	± 8 dB (10 kHz)
loudness contour (volume control set at – 30 dB position)	+ 5 dB (100 Hz)/ + 3 dB (10 kHz)
signal-to-noise ratio (PHONO MM, 5 mV input)	86 dB
signal-to-noise ratio (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	106 dB
signal-to-noise ratio (DIN, continuous power/ 50 mW, PHONO MM)	71 dB/ 67 dB
signal-to-noise ratio (DIN, continuous power/ 50 mW, CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	95 dB/ 71 dB

Power Supply

power requirements	AC 220 - 230 V, 50/60 Hz
power consumption	160 W
power consumption in standby mode	1 W
AC outlet switched	100 W

Weight and Dimensions

dimensions (including knobs and other protruding parts)	420 (W) x 335 (D) x 128 (H) mm
weight (without package)	6.9 kg
