Pioneer A-509R Service Manual

29
A-509R
Î
+
2
7
3
1¡
4¢
7
3
_
+
STANDBY / ON
AMP CD TUNER TAPE
TAPE
SELECT
TAPE
DECK
I DECK II
CD
DISC
SELECT
STATION
TUNER
CD TUNER PHONO
TAPE 1 TAPE 2 LINE
VOLUME
STEREO AMPLIFIER

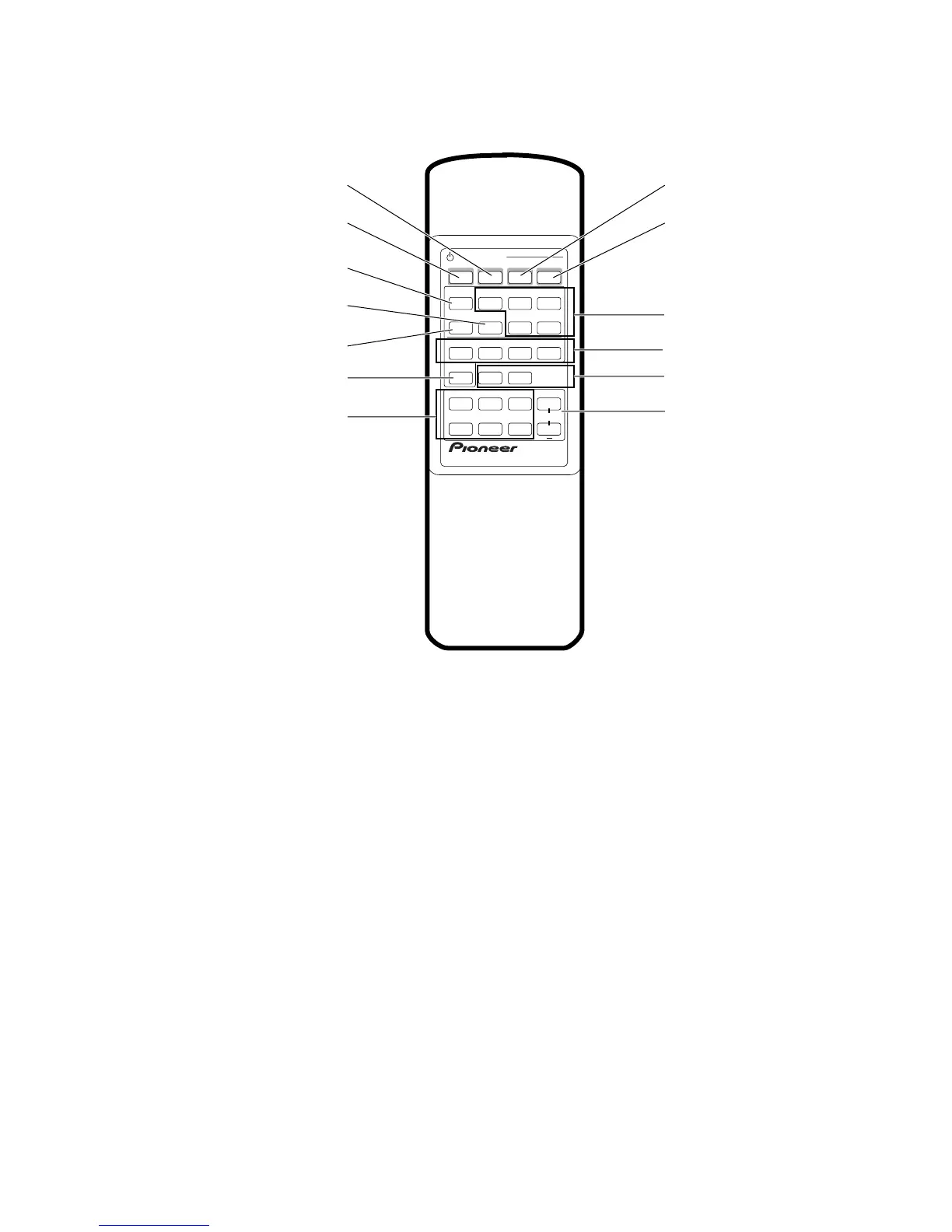

REMOTE CONTROL UNIT
8.3 REMOTE CONTROL
8 TUNER POWER button
Switches TUNER power STANDBY/ON.
9 TAPE POWER button
Switches the cassette deck power STANDBY/ON.
0 TAPE operation buttons
2, 3 : Playback in the direction of the arrows.
7 : Stop
1, ¡ : Tape fast forward/reverse.
- CD player operation buttons
4 : Returns you to the start of the current track
(Track search).
¢ : Takes you to the start of the next track
(Track search).
7 : Stop
3 : Play
= STATION +, – buttons (TUNER)
Calls each station number in sequence.
~ VOLUME +, – buttons
+ ........................................................... Increases the volume.
– ......................................................... Decreases the volume.
NOTE:
When the accessory remote control unit is used to operate other
PIONEER components with the Î mark, it cannot be used to
operate functions which do not correspond to the functions listed
on the remote control unit.
1 CD POWER button
Switches CD player power STANDBY/ON.
2 AMP POWER button
Switches the amplifier power STANDBY/ON.
3 TAPE SELECT button
Selects the cassette No. (1 to 6) for a multi-cassette changer.
4 DECK II button
To operate Deck II, press this button before pressing the operat-
ing buttons. Also, when using a single deck, press this button
before pressing the operating buttons.
5 DECK I button
To operate Deck I, press this button before pressing the operat-
ing buttons.
6 DISC SELECT button
Press this to select discs on a multi or twin tray compact disc
player.
7 Input selector buttons
Use to select the playback source.
CD : For compact disc playback with a CD player.
TUNER : For AM or FM broadcast reception with a tuner.
PHONO : For record playback with a turntable.
TAPE 1 : For playback with a cassette deck, CD recorder or
MD recorder connected to the TAPE 1/CD-R/MD ter-
minals.
TAPE 2 : For playback with a cassette deck or adaptor con-
nected to the TAPE 2 MONITOR terminals.
LINE : For playback with a component connected to the
LINE/SURROUND BACK terminal.
1
2
3
4
5
6
7
0
-
=
~
8
9

Pioneer A-509R Specifications

Amplifier Section

continuous power output (20 Hz to 20 kHz, 8 Ω)	45 W + 45 W
continuous power output (20 Hz to 20 kHz, 4 Ω)	65 W + 65 W
DIN continuous power output (1 kHz, 8 Ω)	60 W + 60 W
DIN continuous power output (1 kHz, 4 Ω)	90 W + 90 W
total harmonic distortion (20 Hz to 20 kHz, 20 W, 8 Ω)	0.05 %
input sensitivity/impedance (PHONO MM)	2.8 mV/50 kΩ
input sensitivity/impedance (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	200 mV/50 kΩ
PHONO (MM) overload level (1 kHz, T.H.D. 0.1 %)	150 mV
output level/impedance (TAPE 1/CD-R/MD, TAPE 2 MONITOR)	200 mV/1 kΩ
frequency response (PHONO MM)	20 Hz to 20 kHz ± 0.5 dB
frequency response (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	5 Hz to 100 kHz +0-3 dB
tone control (BASS)	± 8 dB (100 Hz)
tone control (TREBLE)	± 8 dB (10 kHz)
loudness contour (volume control set at – 30 dB position)	+ 5 dB (100 Hz)/ + 3 dB (10 kHz)
signal-to-noise ratio (PHONO MM, 5 mV input)	86 dB
signal-to-noise ratio (CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	106 dB
signal-to-noise ratio (DIN, continuous power/ 50 mW, PHONO MM)	71 dB/ 67 dB
signal-to-noise ratio (DIN, continuous power/ 50 mW, CD, TUNER, LINE/SB, TAPE 1/CD-R/MD, TAPE 2 MONITOR)	95 dB/ 71 dB

Power Supply

power requirements	AC 220 - 230 V, 50/60 Hz
power consumption	160 W
power consumption in standby mode	1 W
AC outlet switched	100 W

Weight and Dimensions

dimensions (including knobs and other protruding parts)	420 (W) x 335 (D) x 128 (H) mm
weight (without package)	6.9 kg
