Pioneer A-66X User Manual

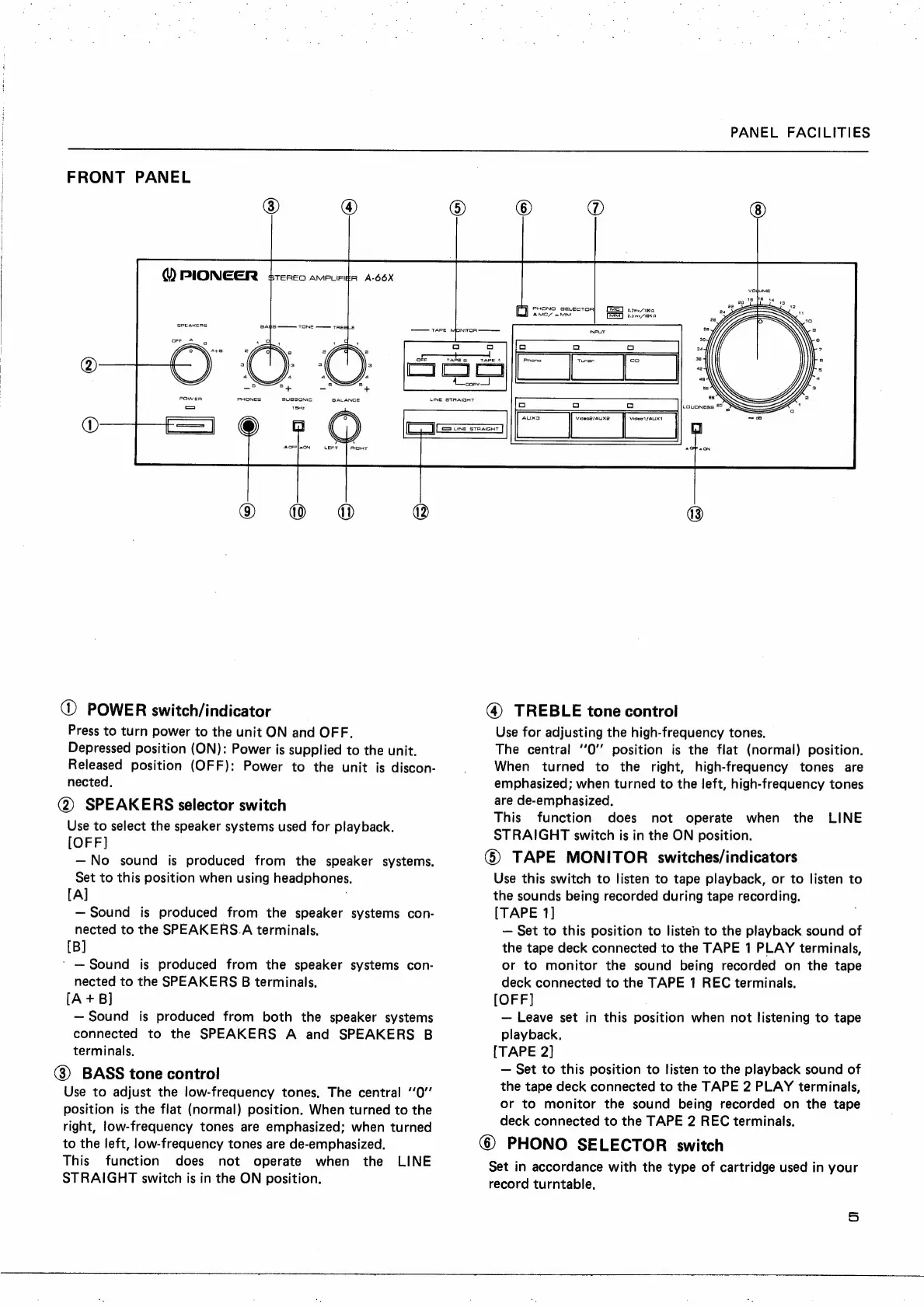

FRONT PANEL
SPEAKERS
ALANCE
@) POWER switch/indicator
Press
to
turn
power
to
the
unit
ON
and
OFF.
Depressed
position
(ON):
Power
is
supplied
to
the
unit.
Released
position
(OFF):
Power
to
the
unit
is
discon-
nected.
(2) SPEAKERS selector switch
Use to select the speaker systems used for playback.
[OFF]
—No sound is produced from the speaker systems.
Set to this position when using headphones.
[A]
— Sound is produced from the speaker systems con-
nected to the SPEAKERS.A terminals.
[B]
‘ — Sound is produced from the speaker systems con-
nected to the SPEAKERS B terminals.
[A +B]
— Sound is produced from both the speaker systems
connected to the SPEAKERS A and SPEAKERS B
terminals.
(8) BASS tone control
Use to adjust the low-frequency tones. The central ‘‘0’’
position is the flat (normal) position. When turned to the
right, low-frequency tones are emphasized; when turned
to the left, low-frequency tones are de-emphasized,
This function does not operate when the LINE
STRAIGHT switch is in the ON position.
PANEL FACILITIES
(a PHONG SELECTOR 0.2mv/1000
AMC, =MM LRN} 2-5 mvsaKa
@ TREBLE tone control
Use for adjusting the high-frequency tones.
The central ‘‘0’”’ position is the flat (normal) position.
When turned to the right, high-frequency tones are
emphasized; when turned to the left, high-frequency tones
are de-emphasized.
This function does not operate when the LINE
STRAIGHT switch is in the ON position.
(6) TAPE MONITOR switches/indicators
Use this switch to listen to tape playback, or to listen to
the sounds being recorded during tape recording.
[TAPE 1]
— Set to this position to listen to the playback sound of
the tape deck connected to the TAPE 1 PLAY terminals,
or to monitor the sound being recorded on the tape
deck connected to the TAPE 1 REC terminals.
[OFF]
— Leave set in this position when not listening to tape
playback,
[TAPE 2]
— Set to this position to listen to the playback sound of
the tape deck connected to the TAPE 2 PLAY terminals,
or to monitor the sound being recorded on the tape
deck connected to the TAPE 2 REC terminals.
@ PHONO SELECTOR switch
Set in accordance with the type of cartridge used in your
record turntable,

Pioneer A-66X Specifications

Power

continuous_average_power_output_per_channel	80 watts
power_requirements_HE_model	a.c. 220 V ~, 50/60 Hz
power_requirements_YP_models	a.c. 240 V ~, 50/60 Hz
power_consumption_HE_HB_YP_models	600 W
continuous_power_output_both_channels_driven	90W +90W
DIN_continuous_power_output_both_channels_driven	95W+95W

Audio Specifications

total_harmonic_distortion	0.007%
output_bandwidth_IHF	5 Hz to 45 kHz
damping_factor	60

Input Specifications

phono_MM_sensitivity_impedance	2.5 mV/50 kQ
phono_MC_sensitivity_impedance	0.2 mV/100 Q2
tuner_CD_tape_play_video_aux_sensitivity_impedance	150 mV/50 kQ2

Frequency Response

phono_MM_frequency_response	20 Hz to 20 kHz, +0.3 dB, -0.3 dB
phono_MC_frequency_response	20 Hz to 20 kHz, +0.5 dB, -0.5 dB
tuner_CD_video_aux_frequency_response	5 Hz to 100 kHz, +0 dB, -3 dB

Weight and Dimensions

dimensions_mm	420 (W) x 416 (D) x 134 (H) mm
dimensions_in	16-9/16(W) x 16-3/8(D) x 5-1/4(H) in
weight_without_package	10.9 kg/23 Ib 15 oz
