Pioneer A-66X User Manual

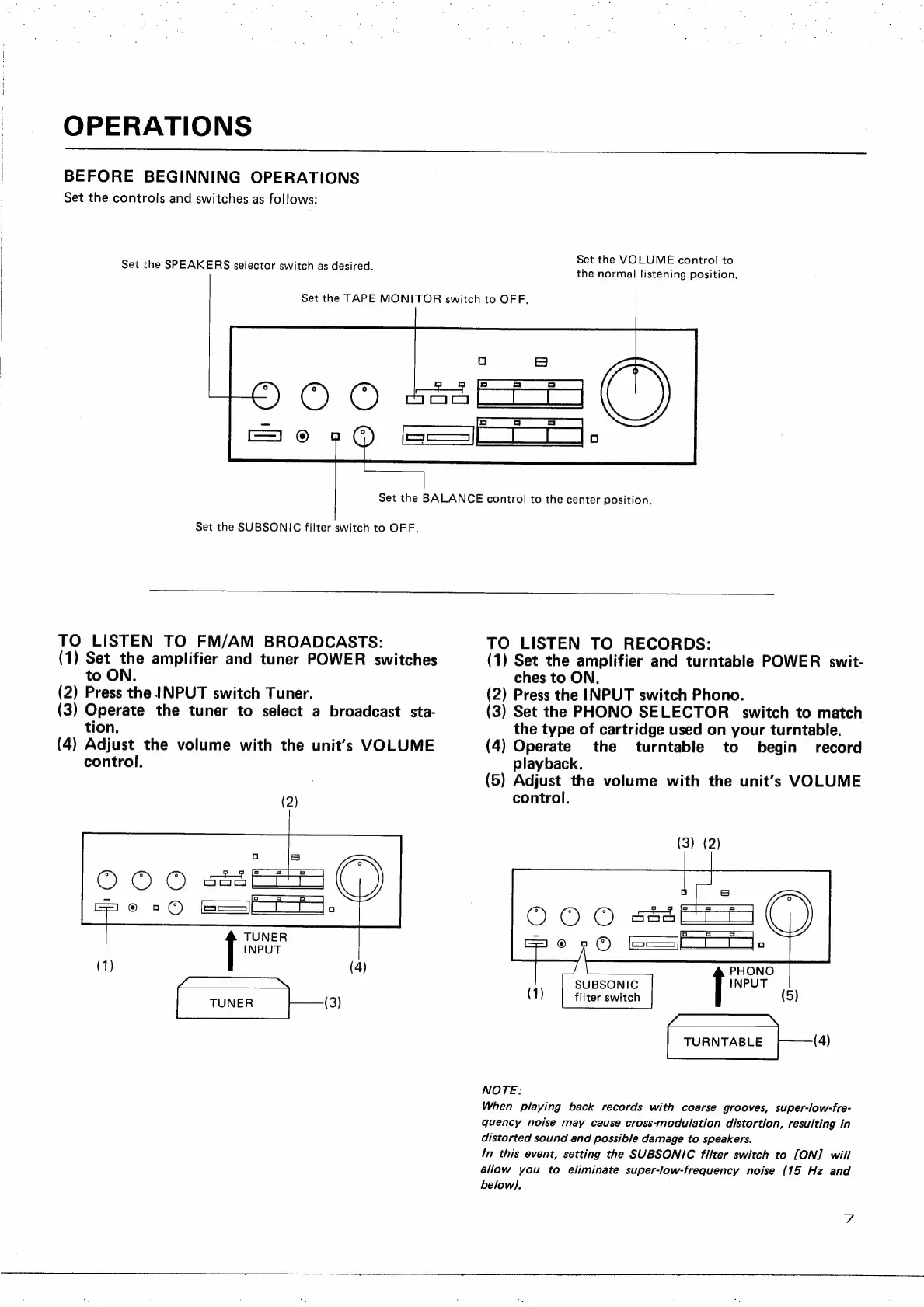

OPERATIONS
BEFORE BEGINNING OPERATIONS
Set the controls and switches as follows:
Set the SPEAKERS selector switch as desired.
Set the VOLUME control to
the normal listening position.
Set the TAPE MONITOR switch to OFF.
Set the BALANCE control to the center position.
Set the SUBSONIC filter switch to OFF.
TO LISTEN TO FM/AM BROADCASTS:
(1) Set the amplifier and tuner POWER switches
to ON.
(2) Press the INPUT switch Tuner.
(3) Operate the tuner to select a broadcast sta-
tion.
(4) Adjust the volume with the unit’s VOLUME
control.
(2)
TUNER
INPUT
| TED
TO LISTEN TO RECORDS:
(1) Set the amplifier and turntable POWER swit-
ches to ON.
(2) Press the INPUT switch Phono.
(3) Set the PHONO SELECTOR switch to match
the type of cartridge used on your turntable.
(4) Operate the turntable to begin record
playback.
(5) Adjust the volume with the unit’s VOLUME
control.
SUBSONIC
filter switch
TURNTABLE (4)
NOTE:
When playing back records with coarse grooves, super-low-fre-
quency noise may cause cross-modulation distortion, resulting in
distorted sound and possible damage to speakers.
In this event, setting the SUBSONIC filter switch to [ON] will
allow you to eliminate super-low-frequency noise (15 Hz and
below).

Pioneer A-66X Specifications

Power

continuous_average_power_output_per_channel	80 watts
power_requirements_HE_model	a.c. 220 V ~, 50/60 Hz
power_requirements_YP_models	a.c. 240 V ~, 50/60 Hz
power_consumption_HE_HB_YP_models	600 W
continuous_power_output_both_channels_driven	90W +90W
DIN_continuous_power_output_both_channels_driven	95W+95W

Audio Specifications

total_harmonic_distortion	0.007%
output_bandwidth_IHF	5 Hz to 45 kHz
damping_factor	60

Input Specifications

phono_MM_sensitivity_impedance	2.5 mV/50 kQ
phono_MC_sensitivity_impedance	0.2 mV/100 Q2
tuner_CD_tape_play_video_aux_sensitivity_impedance	150 mV/50 kQ2

Frequency Response

phono_MM_frequency_response	20 Hz to 20 kHz, +0.3 dB, -0.3 dB
phono_MC_frequency_response	20 Hz to 20 kHz, +0.5 dB, -0.5 dB
tuner_CD_video_aux_frequency_response	5 Hz to 100 kHz, +0 dB, -3 dB

Weight and Dimensions

dimensions_mm	420 (W) x 416 (D) x 134 (H) mm
dimensions_in	16-9/16(W) x 16-3/8(D) x 5-1/4(H) in
weight_without_package	10.9 kg/23 Ib 15 oz
