DVR-7000

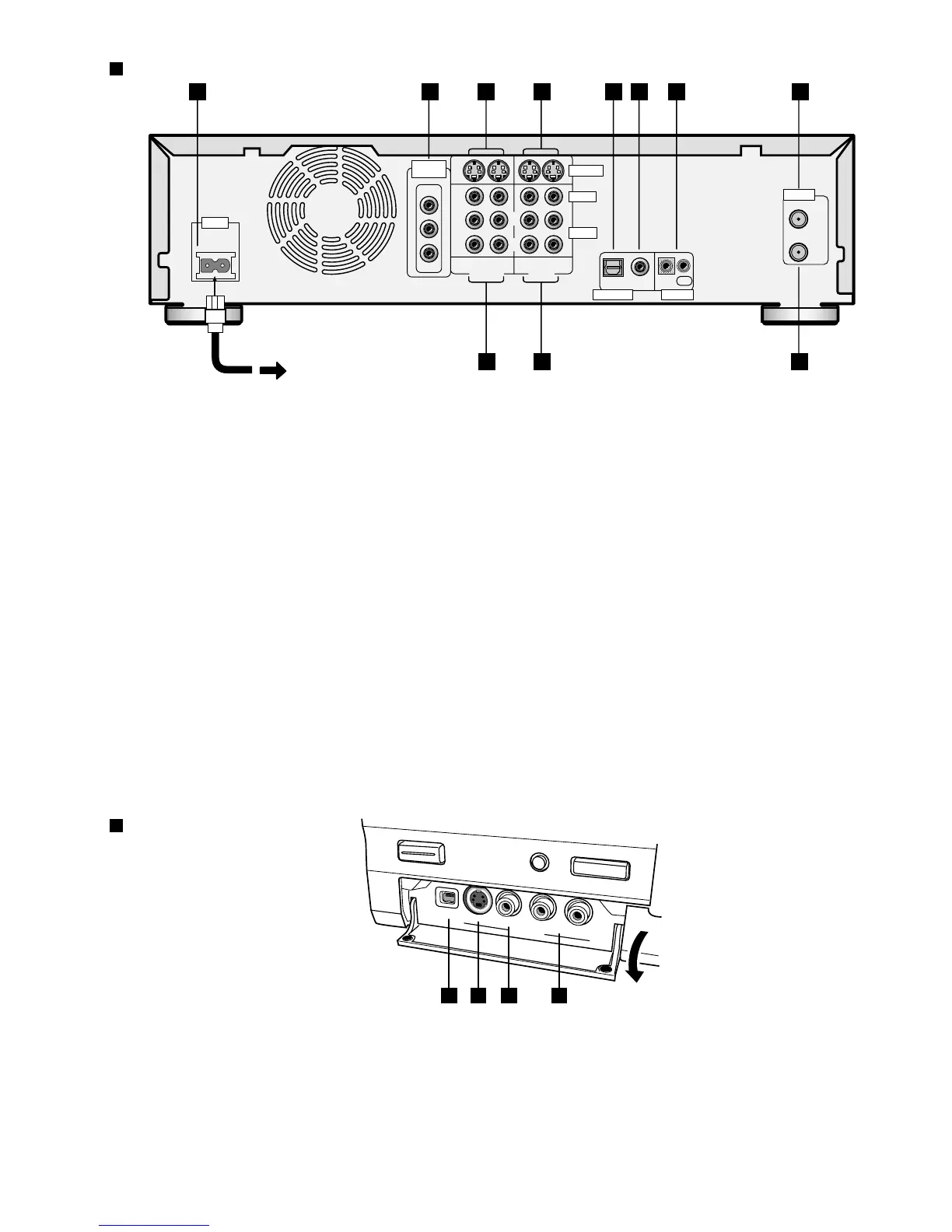

1 AC IN – Power inlet
2 COMPONENT VIDEO OUT
For connecting to a TV or monitor that has
component video input
3 S-VIDEO OUTPUT 1, 2
For connecting to a TV, monitor, AV receiver or
other equipment with S-Video input
4 S-VIDEO INPUT 1, 2
For recording from a camcorder, VCR or other
equipment with S-Video output
5 DIGITAL OUT OPTICAL
For connecting to an AV receiver, Dolby Digital/
DTS decoder or other equipment with optical
digital inpu
6 DIGITAL OUT COAXIAL
For connecting to an AV receiver, Dolby Digital/
DTS decoder or other equipment with coaxial
digital input
7 CONTROL IN / OUT
Use for connecting to other Pioneer components
bearing the Pioneer Î mark. Connect the
CONTROL OUT of one component to the
CONTROL IN of another using a mini-plug cord.
The device at the beginning of the chain acts as
the remote control sensor for everything in the
chain.
8 VHF/UHF IN
Connect the TV antenna here
9 VHF/UHF OUT
Passes the signal from the VHF/UHF IN to your
TV/monitor
10 AUDIO/VIDEO INPUT 1, 2/AUTO REC
For recording from a camcorder, VCR, satellite
receiver or other equipment
11 AUDIO/VIDEO OUTPUT 1, 2
For connecting to the audio and video inputs of a
TV, monitor, AV receiver or other equipment
REAR PANEL
1 DV IN/OUT jack
A combined input and output jack for con-
necting a digital camcorder. See page 19 for
details.
2 S-VIDEO input (INPUT 3)
Connect to an S-Video output of an external
component.
DV IN/O
UT
S-VIDEO
VIDEO
DISC NAVI
L AUDIO R
INPUT 3
1
2
3
4
3 VIDEO input (INPUT 3)
Connect to a composite (standard) video
output of an external component.
4 AUDIO L/R (INPUT 3)
Connect to a stereo pair of audio outputs of
an external component.
FRONT TERMINAL
S-VIDEO
COMPONENT
VIDEO OUT
VIDEO
OUTPUT INPUT
OPTICAL COAXIAL IN
IN
OUT
OUT
AUDIO
L
R
Y
P
B
PR
12 1
2
/AUTO REC
DIGITAL OUT CONTROL
AC IN
VHF/UHF
1 2 3 4 5 6 7
11 10
9
8
