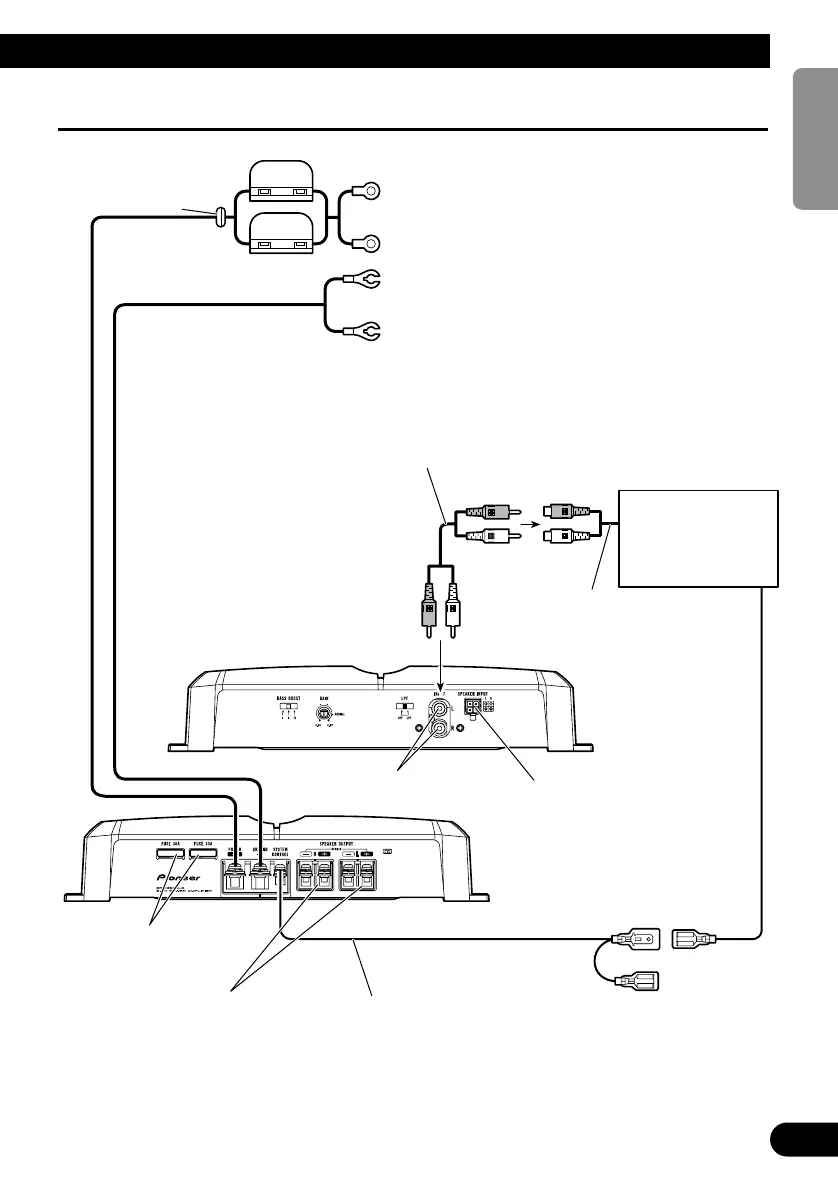

Connection Diagram
Fuse (30 A)
Grommet
Special red battery wire [RD-223] (sold separately)
After making all other connections at the amplifier,
connect the battery wire terminal of the amplifier to
the positive (+) terminal of the battery.
Ground wire (black) [RD-223] (sold separately)
Connect to metal body or chassis.
Fuse (30 A) × 2
Car stereo with
RCA output jacks
External Output
Connecting wires with RCA pin
plugs (sold separately).
RCA input jack
System remote control wire (sold separately)
Connect the male terminal of this wire to the system remote control
terminal of the car stereo (SYSTEM REMOTE CONTROL). The
female terminal can be connected to the auto-antenna relay control
terminal. If the car stereo does not have a system remote control
terminal, connect the male terminal to the power terminal through the
ignition switch.
Speaker output terminal
See the “Connecting the
Speaker Wires” section for
speaker connection
instructions.
Fuse (30 A)
Front side
Back side
Speaker input terminal
See the “Using the
Speaker Input” section.

Pioneer GM-5300T Specifications

General

Impedance	8 Ω
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.015 %
Output power	760 W
Channels quantity	2 channels
Dimensions (WxDxH)	300 x 334 x 60 mm
Connectivity technology	Wired
Product color	Black

Weight and Dimensions

Weight	3900 g
