Pioneer PD-101 User Manual

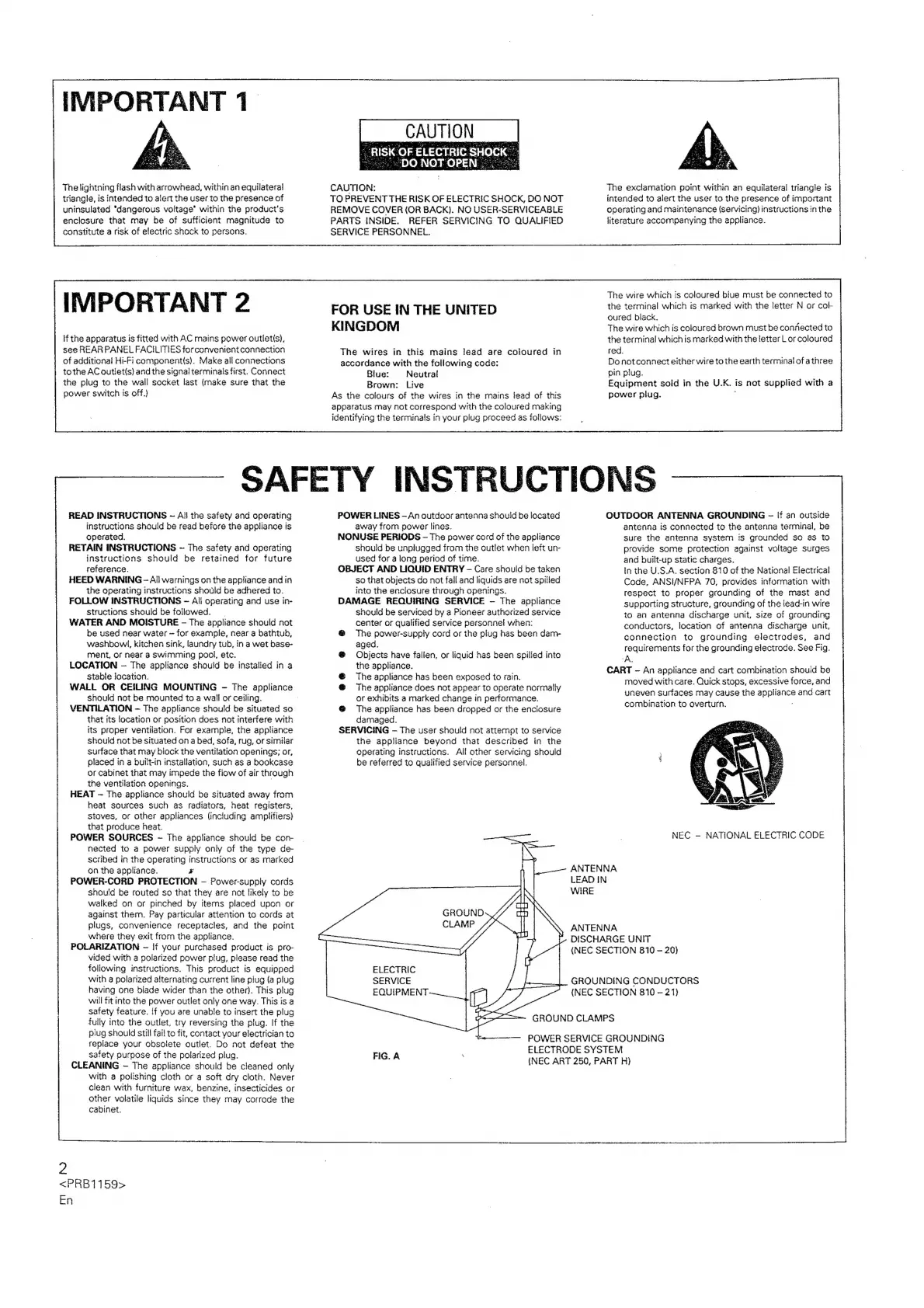

IMPORTANT 1.
The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product's
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
IMPORTANT 2
lf the apparatus is fitted with AC mains power outleti(s),
see REAR PANEL FACILITIES for convenient connection
of additional Hi-Fi componentis). Make all connections
tothe AC outlet(s) and the signal terminals first. Connect
the plug to the wall socket last (make sure that the
power switch is off.)
READ INSTRUCTIONS ~ All the safety and operating
instructions should be read before the appliance is
operated,
RETAIN INSTRUCTIONS ~ The safety and operating
instructions should be retained for future
reference.
HEED WARNING - Aili warnings on the appliance and in
the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS - All operating and use in-
structions should be followed.
WATER AND MOISTURE - The appliance should not
be used near water — for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet base-
ment, or near a swimming pool, etc.
LOCATION — The appliance should be installed in a
Stable location.
WALL OR CEILING MOUNTING - The appliance
should not be mounted to a wall or ceiling.
VENTILATION — The appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or,
placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through
the ventilation openings. .
HEAT — The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.
POWER SOURCES - The appliance should be con-
nected to a power supply only of the type de
scribed in the operating instructions or as marked
on the appliance. *
POWER-CORD PROTECTION - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by iterns placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance.
POLARIZATION — If your purchased product is pro-
vided with a polarized power plug, please read the
following instructions. This product is equipped
with a polarized alternating current line plug {a plug
having one blade wider than the other}. This plug
will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug
fuily into the outlet, try reversing the plug. If the
plug should stil! fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
CLEANING - The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.
2
<PRB1159>
En
CAUTION _|
RISK
OF
ELECTRIC
SHOCK
-_--DONOT
OPEN
|.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
FOR USE IN THE UNITED
KINGDOM
The wires in this mains lead are coloured in
accordance with the following code:
Biue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured making
identifying the terminals in your plug proceed as follows:
POWER LINES — An outdoor antenna should be located
away from power lines.
NONUSE PERIODS - The power cord of the appliance
should be unplugged from the outlet when jeft un-
used for a long period of time.
OBJECT AND LIQUID ENTRY -— Care should be taken
so that objects do not fall and liquids are not spilled
into the enciosure through openings.
DAMAGE REQUIRING SERVICE - The appliance
should be serviced by a Pioneer authorized service
center or qualified service personnel when:
The power-supply cord or the plug has been dam-
aged,
Objects have failen, or liquid has been spilled into
the appliance.
The appliance has been exposed to rain.
The appliance does not appear to operate normally
or exhibits a marked change in performance.
The appliance has been dropped or the enclosure
damaged.
SERVICING — The user should not attempt to service
the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel.
ELECTRIC
FIG. A
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or cot
oured black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured
red.
Do not connect either wire to the earth terminal of a three
pin plug.
Equipment sold in the U.K. is not supplied with a
power plug. ;
SAFETY
INSTRUCTIONS
OUTDOOR ANTENNA GROUNDING - If an outside
antenna is connected to the antenna terminal, be
sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges.
In the U.S.A. section 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode. See Fig.
‘A.
CART - An appliance and cart combination should be
moved with care. Quick stops, excessive force, and
uneven Surfaces may cause the appiiance and cart
combination to overturn. ;
NEC - NATIONAL ELECTRIC CODE
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 ~ 20)
GROUNDING CONDUCTORS
(NEC SECTION 810 — 21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H}

Pioneer PD-101 Specifications

General

Brand	Pioneer
Model	PD-101
Category	CD Player
Language	English
