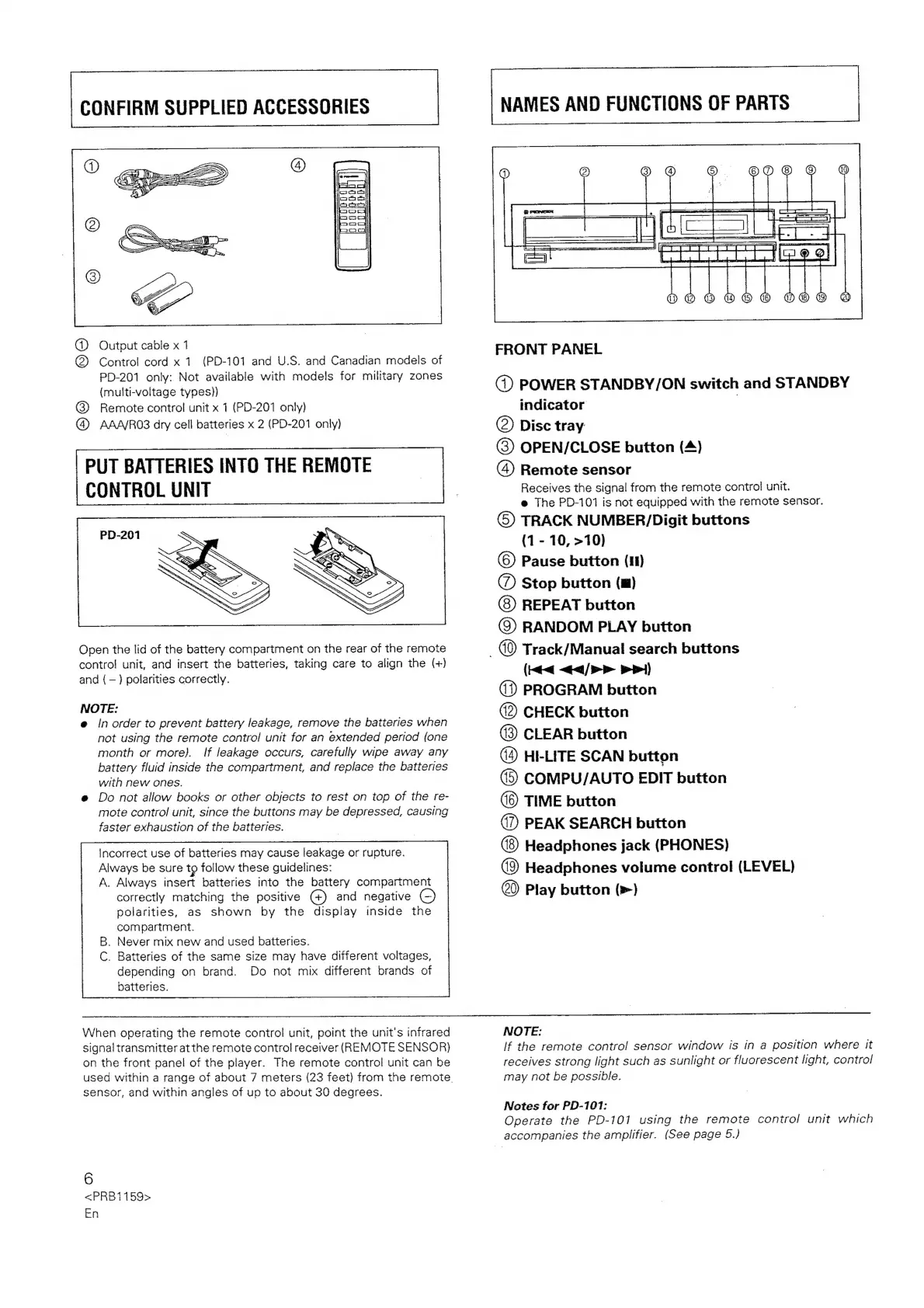

Pioneer PD-101 User Manual

CONFIRM SUPPLIED ACCESSORIES
ZS
pS
Output cable x 1
Control cord x 1 (PD-101 and U.S. and Canadian models of
PD-201 only: Not available with models for military zones
(multi-voitage types))
Remote control unit x 1 (PD-201 only)
AAAVRO3 dry cell batteries x 2 (PD-201 only)
OO
Cle)
PUT BATTERIES INTO THE REMOTE
CONTROL UNIT
Open the lid of the battery compartment on the rear of the remote
contro! unit, and insert the batteries, taking care to align the (+)
and (—) polarities correctly.
NOTE:
e in order to prevent battery leakage, remove the batteries when
not using the remote control unit for an extended period (one
month or more}. If leakage occurs, carefully wipe away any
battery fluid inside the compartment, and replace the batteries
with new ones.
@ Do not allow books or other objects to rest on top of the re-
mote control unit, since the buttons may be depressed, causing
faster exhaustion of the batteries.
Incorrect use of batteries may cause leakage or rupture.
Always be sure to follow these guidelines:
A. Always insert batteries into the battery compartment
correctly matching the positive (+) and negative (-)
polarities, as shown by the display inside tne
compartment.
. Never mix new and used batteries.
. Batteries of the same size may have different voltages,
depending on brand. Do not mix different brands of
batteries.
NAMES AND FUNCTIONS OF PARTS
7a Oo OG ®O OOD @
FRONT PANEL
@
POWER
STANDBY/ON
switch
and
STANDBY
indicator
|
@) Disc tray
@) OPEN/CLOSE button (4)
(4) Remote sensor
Receives the signal from the remote control unit.
@ The PD-101 is not equipped with the remote sensor.
© TRACK NUMBER/Digit buttons
(1 - 10, >10)
© Pause button (i)
® Stop button (Mm)
REPEAT button
@) RANDOM PLAY button
Track/Manual search buttons
(<< <-<¢/p>> PP)
@) PROGRAM button
(2 CHECK button
(3) CLEAR button
HI-LITE SCAN button
() COMPU/AUTO EDIT button
TIME button
(7) PEAK SEARCH button
Headphones jack (PHONES)
Headphones volume control (LEVEL)
Piay button (>)
When operating the remote control unit, point the unit's infrared
signal transmitter at the remote control receiver (REMOTE SENSOR)
on the front panel of the player. The remote control unit can be
used within a range of about 7 meters (23 feet) from the remote.
sensor, and within angles of up to about 30 degrees.
6
<PRB1159>
En
NOTE:
lf the remote control sensor window is in a position where it
receives strong light such as sunlight or fluorescent light, control
may not be possible.
Notes for PD-101:
Operate the PD-101 using the remote control unit which
accompanies the amplifier. (See page 5.)

Pioneer PD-101 Specifications

General

Brand	Pioneer
Model	PD-101
Category	CD Player
Language	English
