Pioneer SC-LX701 User Manual

30
> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual
Troubleshooting | Appendix

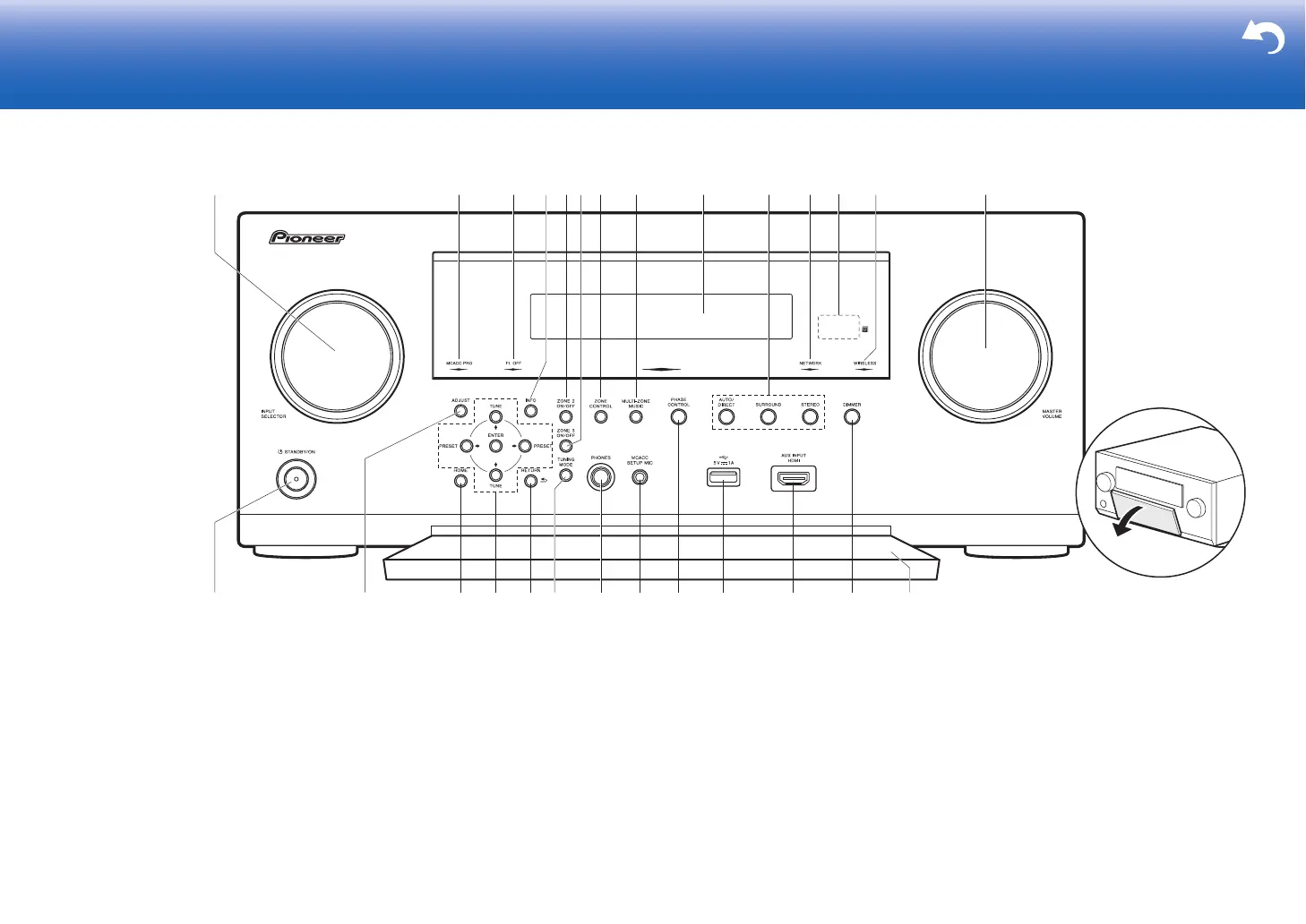

Front Panel
1. INPUT SELECTOR dial: Switch the input to be played.
2. MCACC PRO indicator: This lights when you have
enabled the speaker calibration made with MCACC.
3. FL OFF indicator: This lights when you have pressed
DIMMER repeatedly to turn the display off.
4. INFO button: Switches the information on the display.
5. ZONE 2 ON/OFF button: Turn ZONE 2 on or off.
6. ZONE 3 ON/OFF button: Turn ZONE 3 on or off.
7. ZONE CONTROL button (
P27)
8. MULTI-ZONE MUSIC button (
P28)
9. Display (
P33)
10. Listening mode button (P24)
11. NETWORK indicator: When the power of the unit is on,
this lights when "NET" is selected with the input selector
and the unit is connected to the network. If the unit is in
standby mode, this lights when functions such as HDMI
CEC and network standby are enabled. It does not light
when ZONE 2/ZONE 3 is on, however.
12. Remote control sensor
13. WIRELESS indicator: Lights when the unit is connected
to the wireless network.
14. MASTER VOLUME dial
15. Í STANDBY/ON button
16. ADJUST button (AV Adjust) (P28)
17. HOME button (P29)
18. Cursor buttons (TUNE / PRESET button) and
ENTER button: Select the item with the cursors and
press ENTER to confirm your selection. When using the
TUNER, select the frequency with TUNE, or select
preset stations with PRESET.
19. RETURN button: Returns the display to the previous state.
20. TUNING MODE button: Switches the tuning mode.
21. PHONES jack: Stereo headphones with a standard plug
(1/4 inch or ø6.3 mm) are connected.
22. MCACC SETUP MIC jack (P22)
23. PHASE CONTROL button: This turns on or off the Phase
Control that corrects phase disturbance in the low range
to enhance the bass.
24. USB port: A USB storage device is connected so that music
files stored in it can be played. You can also supply power
(maximum 5V/1A) to USB devices with a USB cable.
25. AUX INPUT HDMI jack (P14)
26. DIMMER button: You can adjust the brightness of the
display in four steps.
27. Front flap
1 43 5 82769
1817 21 222019
10 11 12 13
15 16
14
23 24 25 26 27
27
Part Names

Pioneer SC-LX701 Specifications

General

Display	-
Product color	Silver
Audio decoders	DTS 96/24, DTS-ES, DTS-HD, DTS-HD HR, DTS-HD Master Audio, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Apple docking compatibility	Not supported
Receiver type	Surround
Frequency range	20 - 20000 Hz
Audio output channels	9.2 channels
Dynamic power per channel (4 Ohm)	220 W
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Digital audio optical in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	Terminals
Speakers connectivity type	Binding post
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, TuneIn
Card reader integrated	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	310 W
Supported video modes	1080p, 2160p
Cables included	AC

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	15300 g
