Pioneer VSX-409RDS Service Manual

3
VSX-409RDS

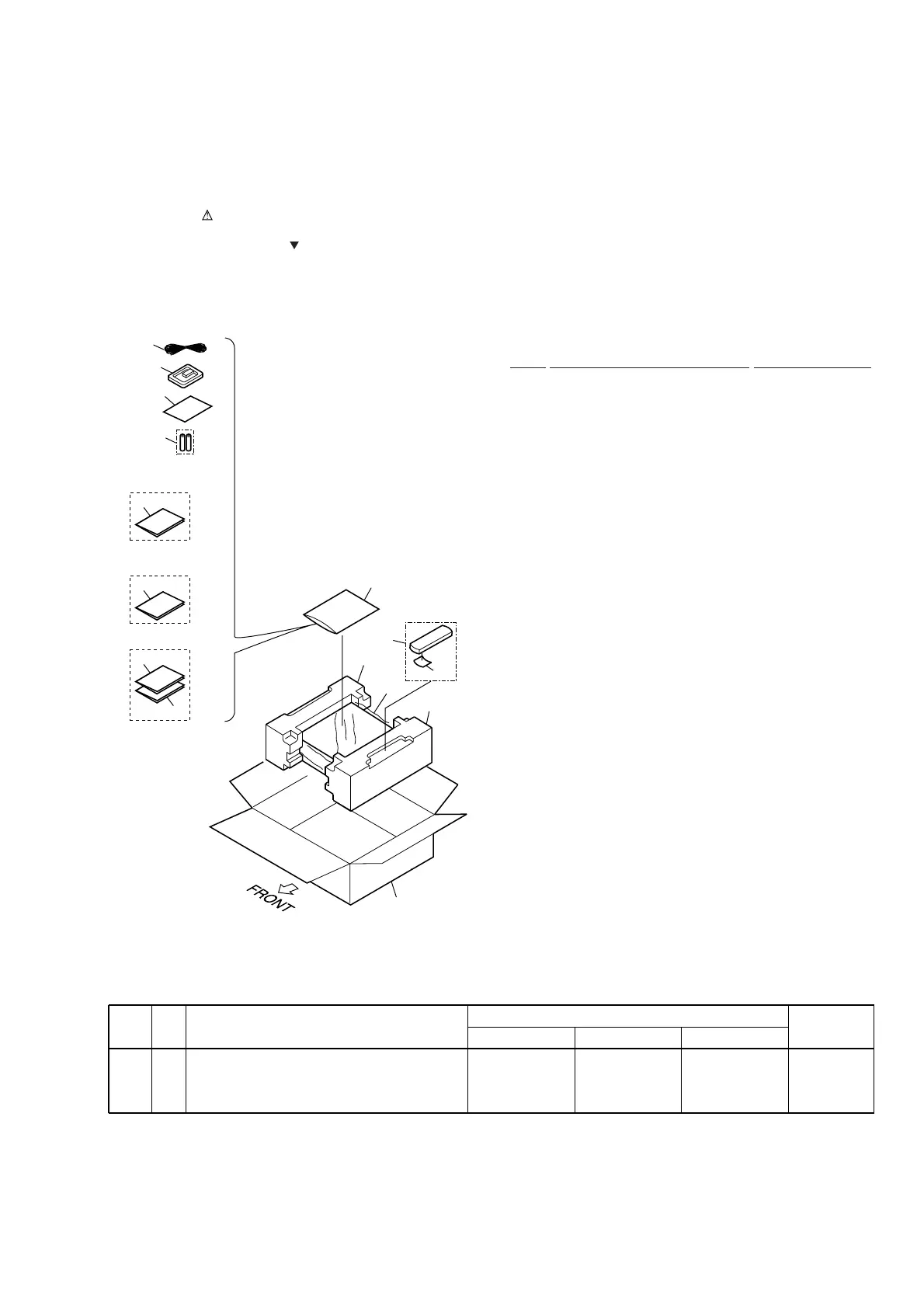

2.1 PACKING
1 FM Wire Antenna ADH7005
2 AM Loop Antenna ATB7009
3 Polyethylene Bag Z21-038
(0.03 × 230 × 340)
NSP 4 Warranty Card ARY7022
5 Remote Control Unit AXD7243
(CU-VSX167)
6 Battery Cover RZN1156
NSP 7 Dry Cell Battery (R6P, AA) VEM-013
8 Left Pad AHA7263
9 Right Pad AHA7264
10 Packing Sheet AHG7010
11 Packing Case AHD7771
12 Operating Instructions See Contrast table (2)
(English)
13 Operating Instructions See Contrast table (2)
(German)
14 Operating Instructions See Contrast table (2)
(Dutch/French/Swedish)
15 Operating Instructions See Contrast table (2)
(Spanish/Portuguese/Italian)
(1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
(2) CONTRAST TABLE
VSX-409RDS/MYXJIEW, MVXJI and MYXJIGR are constructed the same except for the following :
Mark No. Symbol and Description
Part No.
Remarks
MYXJIEW Type MVXJI Type MYXJIGR Type
12
13
14
15
Operating Instructions (English)
Operating Instructions (German)
Operating Instructions (Dutch/French/Swedish)
Operating Instructions (Spanish/Portuguese/Italian)
ARB7200
ARC7257
ARC7258
ARC7259
ARB7200
Not used
Not used
Not used
Not used
ARC7257
Not used
Not used
1
2
4
12
MYXJIEW and
MVXJI Types Only
7
3
8
9
5
6
10
11
13
MYXJIEW and
MYXJIGR Types Only
MYXJIEW Type Only
15
14

Pioneer VSX-409RDS Specifications

Power

continuous power output	80 W + 80 W (DIN, 1kHz, 0.9 %, 8 Ω)
power supply voltage	230 V
power requirements	AC 220-230 V, 50/60 Hz
power consumption	220 W
standby power consumption	1 W

Audio Specifications

input sensitivity/impedance	200 mV/47 kΩ
frequency response	5 Hz to 100, 000 Hz
output level/impedance	200 mV/2.2 kΩ
tone control bass	± 6 dB (100 Hz)
tone control treble	± 6 dB (10 kHz)
s.bass	+ 8 dB (100 Hz)
signal-to-noise ratio	88 dB/64 dB

Video Section

video input sensitivity/impedance	1 Vp-p/75 Ω
video output level/impedance	1 Vp-p/75 Ω
video frequency response	5 Hz to 7 MHz –3 dB
video signal-to-noise ratio	55 dB
video cross talk	55 dB

FM Tuner Section

fm frequency range	87.5 MHz to 108 MHz
fm usable sensitivity	Mono:15.2 dBf, IHF (1.6 µV/75 Ω)
fm 50 dB quieting sensitivity	Mono: 20.2 dBf
fm signal-to-noise ratio	Mono: 76 dB (at 85 dBf)
fm distortion	Stereo: 0.6 % (1 kHz)
fm alternate channel selectivity	70 dB (400 kHz)
fm stereo separation	40 dB (1 kHz)
fm frequency response	30 Hz to 15 kHz (±1) dB
fm antenna input	75 Ω unbalanced
fm sensitivity (DIN)	Mono: 1.1 uV(S/N 26dB)
fm signal-to-noise ratio (DIN)	Mono: 62dB

AM Tuner Section

am frequency range	531 kHz to 1, 602 kHz
am sensitivity (IHF, Loop antenna)	350 µV/m
am selectivity	30 dB
am signal-to-noise ratio	50 dB
am antenna	Loop antenna

Weight and Dimensions

dimensions	420 (W) x 158 (H) x 391 (D) mm
weight	8.4 kg
