Pioneer VSX-409RDS Service Manual

4
VSX-409RDS
D
L
K
G
H
M
J
I
C
I
J
M
L
K
H
E
E
B
A
C
D
F
F
A
G
B
For MVXJI Type
20
18
24
21
19
19
33
36
36
39
36
36
36
36
36
36
36
36
36
36
36
36
36
36
26
15
7
1
2
5
27
36
33
22
25
39
12
13
14
16
36
17
4
3
9
8
6
36
11
35
36
36
37
37
38
38
36
36
10
Accessory of
Front Panel
36
34
36
36
36
36
Refer to
"2.3 FRONT PANEL SECTION".
39
39
29
28
30
36
36
31
32
23

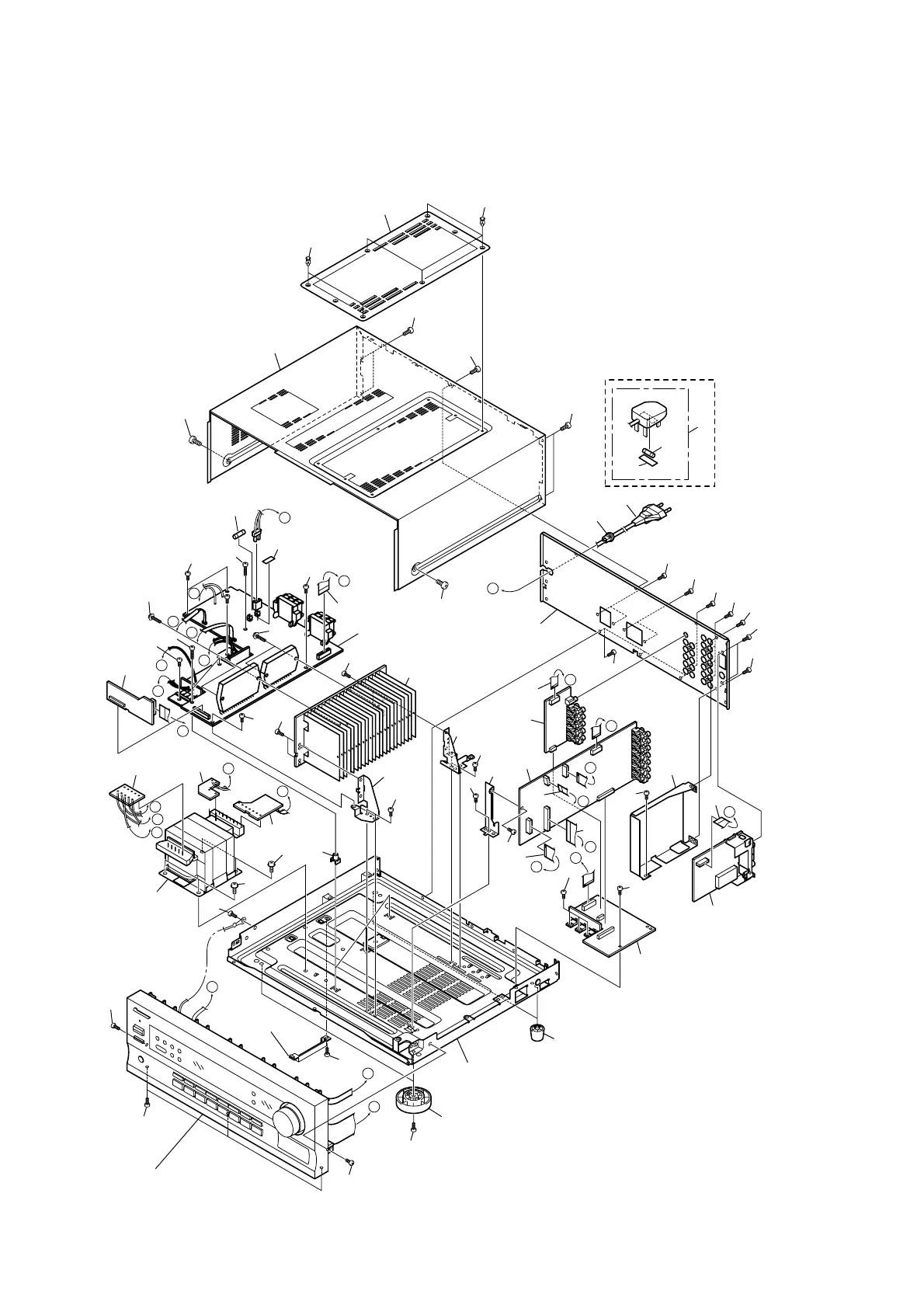

2.2 EXTERIOR SECTION

Pioneer VSX-409RDS Specifications

Power

continuous power output	80 W + 80 W (DIN, 1kHz, 0.9 %, 8 Ω)
power supply voltage	230 V
power requirements	AC 220-230 V, 50/60 Hz
power consumption	220 W
standby power consumption	1 W

Audio Specifications

input sensitivity/impedance	200 mV/47 kΩ
frequency response	5 Hz to 100, 000 Hz
output level/impedance	200 mV/2.2 kΩ
tone control bass	± 6 dB (100 Hz)
tone control treble	± 6 dB (10 kHz)
s.bass	+ 8 dB (100 Hz)
signal-to-noise ratio	88 dB/64 dB

Video Section

video input sensitivity/impedance	1 Vp-p/75 Ω
video output level/impedance	1 Vp-p/75 Ω
video frequency response	5 Hz to 7 MHz –3 dB
video signal-to-noise ratio	55 dB
video cross talk	55 dB

FM Tuner Section

fm frequency range	87.5 MHz to 108 MHz
fm usable sensitivity	Mono:15.2 dBf, IHF (1.6 µV/75 Ω)
fm 50 dB quieting sensitivity	Mono: 20.2 dBf
fm signal-to-noise ratio	Mono: 76 dB (at 85 dBf)
fm distortion	Stereo: 0.6 % (1 kHz)
fm alternate channel selectivity	70 dB (400 kHz)
fm stereo separation	40 dB (1 kHz)
fm frequency response	30 Hz to 15 kHz (±1) dB
fm antenna input	75 Ω unbalanced
fm sensitivity (DIN)	Mono: 1.1 uV(S/N 26dB)
fm signal-to-noise ratio (DIN)	Mono: 62dB

AM Tuner Section

am frequency range	531 kHz to 1, 602 kHz
am sensitivity (IHF, Loop antenna)	350 µV/m
am selectivity	30 dB
am signal-to-noise ratio	50 dB
am antenna	Loop antenna

Weight and Dimensions

dimensions	420 (W) x 158 (H) x 391 (D) mm
weight	8.4 kg
